The documentary covers the life of the Apple Lisa. It starts with the genesis of the Lisa Project at Apple, covering its creation, then its marketing, and finally its cancellation. It then discusses the Apple Lisa after Apple, when it became a collectible. Finally the film examines the legacy of the Apple Lisa, today.
The Apple Lisa was an important step on the journey to graphical user interfaces which was a paradigm that was shifting in the early 1980s, contemporary with the Macintosh and the work at Palo Alto. The mouse. Bitmapped graphics. Friendly error messages. These were the innovations of the day.
Homebrew bills itself as the package manager MacOS never had (conveniently ignoring MacPorts) but they leave the PPC crowd criminally under-served, to say nothing of the 68k gang. Enter [that-ben] with MR Browser, a simple utility to fetch software from Macintosh Repository for computers too old to hit up the website.
If you’re not familiar with Macintosh Repository, it is what it says on the tin: a repository of vintage Macintosh software, like Macintosh Garden but apparently less accessible to vintage machines.

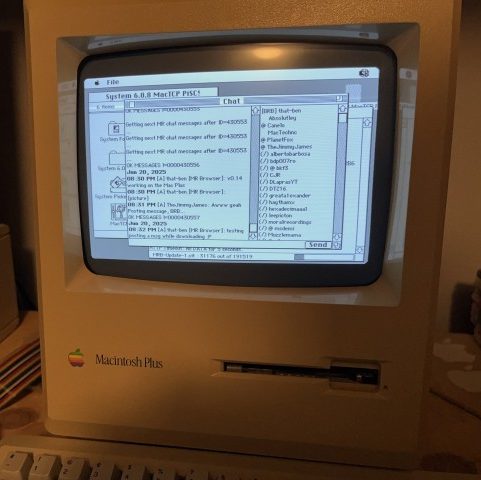

MRBrowser sys6 runs nicely on the Macintosh Plus, as you can see.
There are two versions available, depending on the age of your machine. For machines running System 6, the appropriately-named MR Browser sys6 will run on any 68000 Mac in only 157 KB of and MacTCP networking. (So the 128K obviously isn’t going to cut it, but a Plus from ’86 would be fine.)
The other version, called MR Browser 68K, ironically won’t run on the 68000. It needs a newer processor (68020 or newer, up-to and including PPC) and TCP/IP networking. Anything starting from the Macintosh II or newer should be game; it’s looking for System 7.x upto the final release of Mac OS 9, 9.2.2. You’ll want to give it at least 3 MB of RAM, but can squeak by on 1.6 MB if you aren’t using pictures in the chat.
Chat? Yes, perhaps uniquely for a software store, there’s a chat function. That’s not so weird when you consider that this program is meant to be a stand-alone interface for the Macintosh Repository website, which does, indeed, have a chat feature. It beats an uncaring algorithm for software recommendations, that’s for sure. Check it out in action in the demo video below.
Sure, Apple’s Lisa wasn’t the first computer released with a graphical user interface — Xerox was years ahead with the Alto and the Star workstation — but Lisa was the first that came within the reach of mere mortals. Which doesn’t mean many mortals got their hands on one; with only about 10,000 sold, they were never common, and are vanishingly rare nowadays. Enter [Andrew Yaros], who has graced the world with LisaGUI, an in-browser recreation of the Lisa Office System in Javascript.
Lisa’s GUI varies from modern conventions in a few interesting ways. For one, it is much more document-focused: if you double-click on LisaType, you do not start the program. Instead you “tear off” a document from the “pad” icon of LisaType, which you can then open with another double click. The desktop is also not a folder for files to live permanently, but a temporary space. You can “set aside” a file to the desktop, but its home on disk is unchanged.
Unlike the family of Mac emulators, LisaGUI does not purport to be a perfect replica. [Andrew] has made a few quality-of-life improvements for modern users, as well as a few innovations of his own. For instance, menus are now “sticky”– on the Lisa, you had to hold down the mouse to keep them open, and release on the appropriate entry. LisaGUI leaves the menu open for you to click the entry, as on a later Macintosh.
Obviously the menu bar clock and FPS counter are not native to the Lisa; nor is the ability to theme the icons and change (1-bit) colour palettes. The ability to draw unique icons to assign to documents is all [Andrew], but is something we wish we had back in the day. He also makes no attempt to enforce the original aspect ratio, so you’ll be dragging the window to get 4:3 if that’s your jam.
Right now it does not look as though there’s much original software aside from LisaType. We would have loved to see the famous LisaProject, which was the original “killer app” that led NASA to purchase the computer. Still, this is an Alpha and it’s possible more software is to come, if it doesn’t run afoul of Apple’s IP. Certainly we are not looking too hard at this gift horse’s chompers. What’s there is plenty to get a feel for the system, and LisaGUI should be a treat for retrocomputer enthusiasts who aren’t too anal about period-perfect accuracy.
From the very dawn of the personal computing era, the PC and Apple platforms have gone very different ways. IBM compatibles surged in popularity, while Apple was able to more closely guard the Macintosh from imitators wanting to duplicate its hardware and run its software.
Things changed when Apple announced it would hop aboard the x86 bandwagon in 2005. Soon enough was born the Hackintosh. It was difficult, yet possible, to run MacOS on your own computer built with the PC parts your heart desired.
A favourite thing for the developers behind a complex software project is to embed an Easter egg: something unexpected that can be revealed only by those in the know. Apple certainly had their share of them in their early days, a practice brought to a close by Steve Jobs on his return to the company. One of the last Macs to contain one was the late 1990s beige G3, and while its existence has been know for years, until now nobody has decoded the means to display it on the Mac. Now [Doug Brown] has taken on the challenge.
The Easter egg is a JPEG file embedded in the ROM with portraits of the team, and it can’t be summoned with the keypress combinations used on earlier Macs. We’re taken on a whirlwind tour of ROM disassembly as he finds an unexpected string in the SCSI driver code. Eventually it’s found that formatting the RAM disk with the string as a volume name causes the JPEG to be saved into the disk, and any Mac user can come face to face with the dev team. It’s a joy reserved now for only a few collectors of vintage hardware, but still over a quarter century later, it’s fascinating to learn about. Meanwhile, this isn’t the first Mac easter egg to find its way here.
As you might imagine, this project got its start with the RP2040-based Pico Mac project by [Matt Evans], which we covered
The collector’s edition will come with a lovely box, but what’s in it is still open source so you can make your own.
before. [Nick] saw that, built it, and was delighted by it enough to think that if the Mac could run on such tiny hardware, how small could build a fully-usable replica Mac? The answer was 63 mm tall– at 5.5:1, that’s technically under the 6:1 scale that Barbie operates on, but if we had such a dollhouse we’d absolutely put one of these in it. (You just know Barbie’s an Apple kind of girl.)
The size was driven by the screen, which is a 2″ TFT panel with 480 x 640 pixel native resolution. Here [Nick] cheats a tiny bit– rather than trying to rewrite the PicoMac to output 640 x 480 and rotate the screen, he keeps the screen in portrait mode and drives it at 480 x 342 px. Sure, it’s not a pixel-perfect output, but no LCD is going to be a perfect stand in for a CRT, and who is going to notice 32 pixels on a 2″ screen? Regardless, that set the height of the computer, which is built around the portrait display. A highly detailed, and to our eyes, accurate replica of the original Macintosh case was printed to fit the LCD, coming in at the aforementioned 63mm tall.
Unfortunately this means the floppy drive could not be used for micro SD access– there is an SD card reader on this unit, but it’s on the back, along with a USB-C port, which is roughly where the mouse and keyboard ports are supposed to be, which is a lovely detail. Also delightful is the choice of a CR2 lithium battery for power, which is a form factor that will look just a bit familiar if you’ve been inside one of these old Macs.
The Mac mini is the closest to an Apple-based SBC you can get, so it lends itself to unusual portable computers. [Scott Yu-Jan] is back to tackle a portable build using the latest and greatest M4 mini.
[Yu-Jan] walks us through his thought process of how to maximize the portability of the system without all that tedious mucking about with setting up a separate keyboard, monitor, and the mini while on the go. With the more complicated electronics, the monitor risked tipping the keyboard over when attached, particularly since [Yu-Jan] isn’t a fan of batteries for his portables.
By affixing the Mac mini to the side of the keyboard, it makes the whole thing easier to slip into a bag without being overly thick. We get a peek into his iterative process as well when he evaluates the build and decides that the closing of the lid wasn’t what he was hoping for. By adding some TPU rests for the monitor to rest on in the closed position, he says it’s really brought the whole project up a notch. We certainly have had our own projects where one little detail really moves it from sketchy to polished, and we appreciate when makers clue us in on where that happened for them.
