We grow our systems a slice of functionality at a time. As the code scales up, the only way we can continue to understand and maintain it is by structuring the functionality into objects, objects into packages, packages into programs, and programs into systems. We use two principal heuristics to guide this structuring:

Separation of concerns

When we have to change the behavior of a system, we want to change as little code as possible. For example, code to unpack messages from an Internet standard protocol will not change for the same reasons as business code that interprets those messages, so we partition the two concepts into different packages.

Higher levels of abstraction

The only way for humans to deal with complexity is to avoid it, by working at higher levels of abstraction. We can get more done if we program by combining components of useful functionality rather than manipulating variables and control flow; that’s why most people order food from a menu in terms of dishes, rather than detail the recipes used to create them.

SOLID principle helps us achieve great results designing classes, components and systems

Monolithic Architecture

Conventions

group-id	com.org.lob
artifact-id	lob-project-{market|subproject}-apis|services|ui-{short-description}
package	com.org.lob.config, com.org.lob.domain1, com.org.lob.domain2

Note : Project | Subproject ==> Three letter acronym

Monolithic package structure

Microservices Architecture

Best way to categorize a service as microservice, is that it would be exposing only one interface for an entity (Order for example), some folks even go to an extent of writing separate deployable units for each of CRUD operations.

So a microservice may expose CRUD operations for order entity Using REST as follows

End Point	Details
PUT /api/v1/order/{id}	Create or replace an order
POST /api/v1/order	Create or update an order
GET /api/v1/order	Get all orders
DELETE /api/v1/order	Delete an order
POST /api/v1/order/{id}/execute	Executes an order

A separate deployable unit would expose order operations over kafka for example ( or over MQ for example )

A microservice works over only one domain, and exposes only one interface and may potentially interact with 1 or more internal or external interfaces.

Conventions

group-id	com.org.lob
artifact-id	lob-proj-{market|subproject}-{api|mq-consumer|kafka-consumer|grpc|ui|job}-short-description
package	com.org.lob.config, com.org.lob.project, com.org.lob.othersystem

Each microservice should be structured into layers as shown below.

Here is the package structure for REST API

Anything which is common to both project and othersystem would go under support folder as shown below

Note: No @Component or @Repository or @Service Annotations on classed in support package

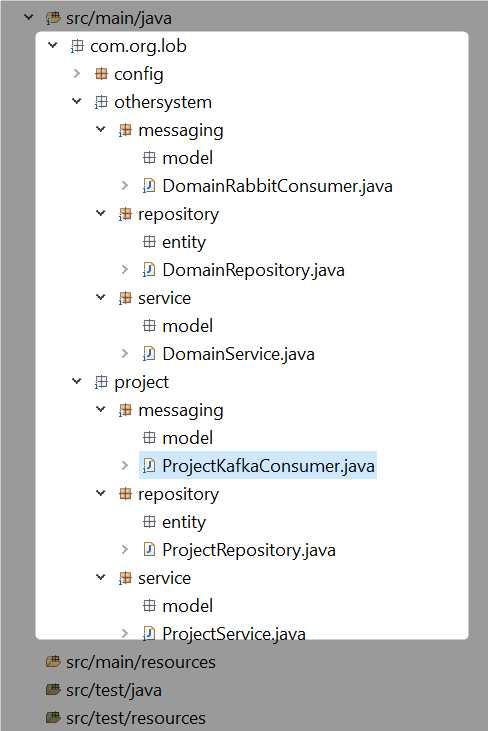

Here is the package structure for Kafka Micro service

Here is the package structure MQ Services

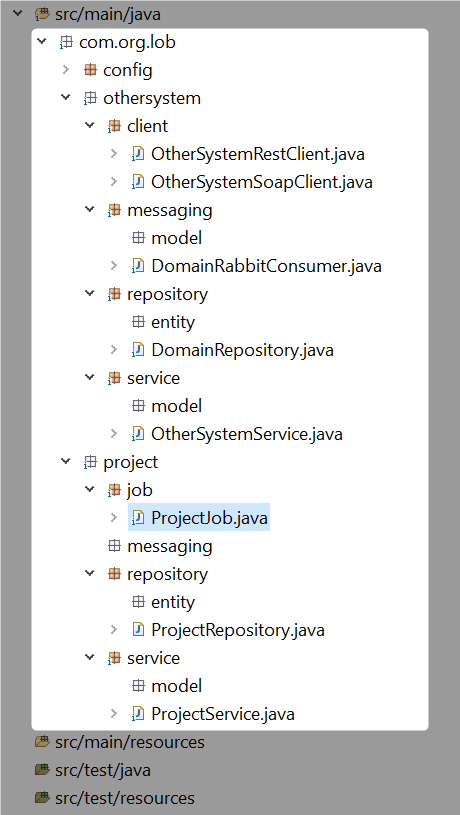

Here is the package structure for Scheduled Jobs

Here is an example microservice

Micro Frontends Architecture

Tech stack At Each layer

Layer	Technology
Client Side MVC	React, Angular, Backbone, Knockout, Vue.js
Server Side MVC	Spring MVC, Struts, Servlets, JSP, Apache Wicket, ASP
Business	Core Java
Data Access / Repository	Jdbc, hibernate, spring-jdbc, spring-orm, jpa
Integration	RestTemplate, SOAP Template, Commons http client, HTTP/2 support. OkHttp, google-http, Unirest, Resteasy, restlet, rest-assured
