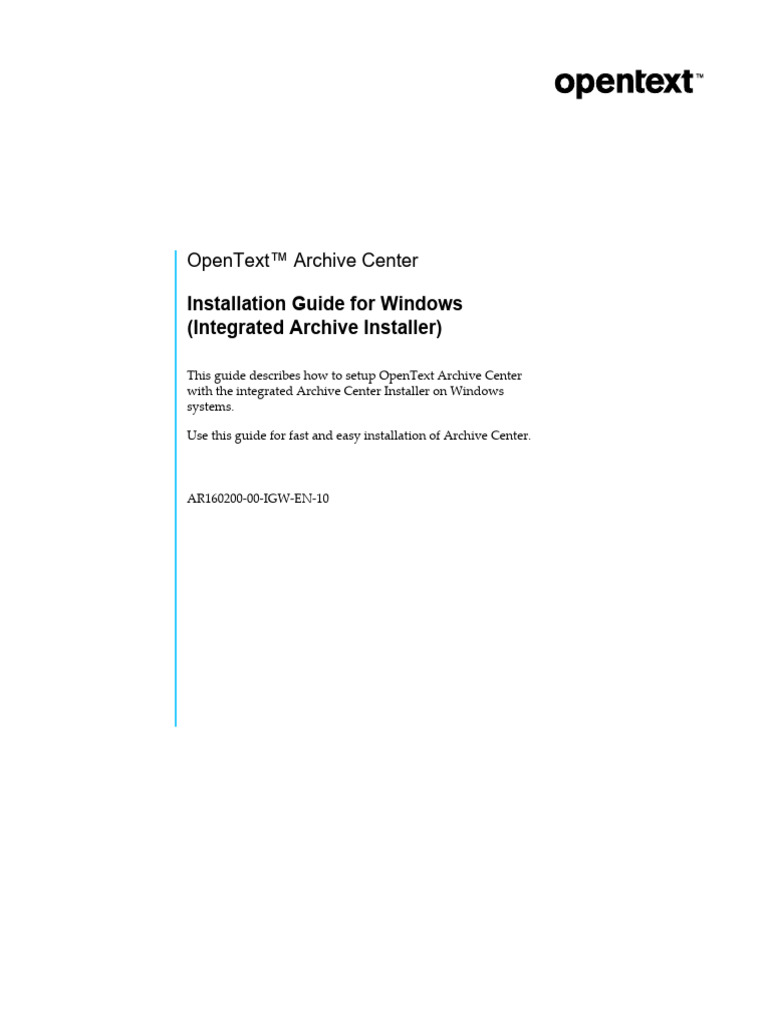

OpenText™ Archive Center

Installation Guide for Windows

(Integrated Archive Installer)

This guide describes how to setup OpenText Archive Center

with the integrated Archive Center Installer on Windows
systems.

Use this guide for fast and easy installation of Archive Center.

AR160200-00-IGW-EN-10
OpenText™ Archive Center
Installation Guide for Windows (Integrated Archive Installer)
AR160200-00-IGW-EN-10
Rev.: 2021-Jan-28
This documentation has been created for OpenText™ Archive Center 16.2.
It is also valid for subsequent software releases unless OpenText has made newer documentation available with the product,
on an OpenText website, or by any other means.

Open Text Corporation

275 Frank Tompa Drive, Waterloo, Ontario, Canada, N2L 0A1

Tel: +1-519-888-7111
Toll Free Canada/USA: 1-800-499-6544 International: +800-4996-5440
Fax: +1-519-888-0677
Support: https://support.opentext.com
For more information, visit https://www.opentext.com

Copyright © 2021 Open Text. All Rights Reserved.

Trademarks owned by Open Text.

One or more patents may cover this product. For more information, please visit https://www.opentext.com/patents.

Disclaimer

No Warranties and Limitation of Liability

Every effort has been made to ensure the accuracy of the features and techniques presented in this publication. However,
Open Text Corporation and its affiliates accept no responsibility and offer no warranty whether expressed or implied, for the
accuracy of this publication.
 Table of Contents

PRE About OpenText Archive Center v

1 Prerequisites for Archive Center ............................................. 9

1.1 Configuring basic settings ................................................................ 10
1.1.1 Required permissions ...................................................................... 11
1.1.2 Hardware and software recommendations ........................................ 11
1.1.3 Network recommendations and restrictions ....................................... 12
1.1.4 Testing network environment ........................................................... 13
1.1.5 Optimizing system for network applications ....................................... 13
1.1.6 Checking computer name ................................................................ 14
1.1.7 Disabling disk cache of hard disk ..................................................... 14
1.2 Installing Java ................................................................................. 15
1.3 Setting up Apache Tomcat ............................................................... 15
1.3.1 Installing Tomcat ............................................................................. 16
1.3.2 Configuring Tomcat options ............................................................. 16
1.3.3 Configuring the Tomcat user ............................................................ 17
1.3.4 Configuring the connector and securing Tomcat ................................ 18
1.4 Setting up Directory Services ........................................................... 20
1.4.1 Configuring OTDS ........................................................................... 20
1.4.2 Scenario-specific settings ................................................................ 22

2 Setting up the database .......................................................... 23

2.1 Setting up Microsoft SQL Server or Azure SQL Database .................. 23
2.1.1 Database characteristics ................................................................. 23
2.1.2 Testing the database ....................................................................... 25
2.2 Setting up Oracle Database ............................................................. 26
2.2.1 Database characteristics ................................................................. 26
2.2.2 Remote DB on Oracle RAC ............................................................. 27
2.2.3 Testing the database ....................................................................... 28

3 Installing Archive Center ........................................................ 31

3.1 Running the Archive Center Installer ................................................ 31
3.2 Specifying folder settings ................................................................. 38
3.3 Troubleshooting .............................................................................. 39
3.4 Running Archive Center Installer silently ........................................... 41

4 Configuring Archive Center .................................................... 43

4.1 Signing in to Archive Server in Administration Client .......................... 43

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) iii

Table of Contents

4.2 Changing the dsadmin password ..................................................... 43

4.3 Changing the password of the database user .................................... 44
4.3.1 Oracle Database only: Checking the expiry date of the password ....... 44
4.4 Configuring the ports for the SAP gateway ........................................ 45
4.5 Configuring different internal and external hostname ......................... 45
4.6 Creating ILM group and user in OTDS .............................................. 46

5 Appendix: Setting up the database in Microsoft SQL

Server ....................................................................................... 47
5.1 Configuring network connectivity ...................................................... 47
5.2 Creating the SQL Server login ......................................................... 49
5.3 Creating the database ..................................................................... 49
5.4 Required rights for the SQL Server database user ............................. 50
5.5 Required rights for the Azure SQL Database user ............................. 52

6 Appendix: Setting up the database in Oracle Database ...... 55

6.1 Configuring language settings .......................................................... 55
6.2 Creating the Oracle Listener ............................................................ 56
6.3 Creating the test database ............................................................... 56
6.4 Creating the database user .............................................................. 60
6.5 Configuring the Oracle Listener ........................................................ 61
6.6 Configuring Oracle TNS Service Names ........................................... 61
6.7 Required rights for the Oracle Database user .................................... 62

7 Appendix: Special commands ............................................... 65

7.1 Starting and stopping Archive Server with SQL Server ...................... 65
7.2 Starting and stopping Archive Server with Oracle Database ............... 66

GLS Glossary 69

iv OpenText™ Archive Center AR160200-00-IGW-EN-10

Preface

About OpenText Archive Center

OpenText Archive Center is a lean, easy-to-install, easy-to-maintain archiving
solution based on the well-established core component Archive Server. It offers basic
metadata handling using a CMIS interface and supports various data sources, like
SAP and file systems.

Note: Archive Center can be used with or without the Application Layer. In
the latter case, Archive Center continues the feature set of previous Archive
Server versions (10.5.0 and before).

This documentation describes scenarios that use the Application Layer and
web clients explicitly.

For more information about the basic functionality of Archive Center, see also
OpenText Archive Center - Administration Guide (AR-ACN).

Archive Center OpenText™ Archive Center Administration is a web-based, easy-to-use client for the
Administration business administrators, which is included in Archive Center.

Archive Center is a multi-tenant solution: Several customers can use one Archive
Center without any risk of interference with each other. Business administrators
define and control the archiving activities by setting up and administrating
collections, which can only be accessed by members of their tenant group.

In each collection, a list of data sources defines the properties and sources of the
documents to be archived.

DPs Archive Center uses Document Pipelines (and their “DocTools”) to import
documents in various scenarios. The Archive Center Installer provides the base
package “OpenText Document Pipeline Base” and a pipeline for document import
using CMIS (“OpenText Document Pipeline for Archive Center CMIS”) by default.
For more information, see also OpenText Archive Center - Scenario Configuration Guide
(AR-CGD).

Access OpenText™ Archive Center Access is a web-based, easy-to-use client included in

Archive Center, which allows access to the archive independently from the
archiving application.
This can, for example, be important in case of impending litigation. Using Archive
Center Administration, collections can be put on hold to protect all currently
archived documents from modification and deletion. The archived documents
within the collection can then be searched and all relevant documents can be
exported.

My Archive OpenText™ My Archive, similar to Access, is an easy-to-use web client that allows
access to the archive. In contrast, it allows individual users to access their archived

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) v

About OpenText Archive Center

documents. Users can view, search, and download the documents only if they have
appropriate rights.

Archive Box The Archive Box option is intended for folders and documents that need to be
archived but are no longer in daily use. Thus, the required disk space on the file
server, including the total number of files, can be reduced. This is in contrast to the
shortcut scenario where every file is replaced by an individual link. If enabled for a
File Archiving data source, all folders and documents below the specified path are
archived and replaced by a single shortcut.

Related documentation
Product docu- The following documentation is available for Archive Center on OpenText My
mentation Support (https://knowledge.opentext.com/docs):

• OpenText Archive Center - Administration Guide (AR-ACN)

This guide describes all configuration-related and administration-related aspects
of OpenText™ Archive Center.
• OpenText Archive Center - Scenario Configuration Guide (AR-CGD)
This guide describes how to setup scenarios for Archive Center, including
prerequisites and the usage of the applications OpenText™ Archive Center
Administration and OpenText™ Archive Center Access.
• OpenText Archive Center - Cluster Installation Guide (AR-ICLU)
This guide describes how to set up Archive Center as a highly-available and
data-secure active-active cluster.
• OpenText Archive Center Administration - Online Help (ARBA-H-AGD), OpenText
Archive Center Access - Online Help (ARAC-H-AGD), OpenText My Archive - Online
Help (ARMA-H-UGD)
Online help is available for Archive Center Administration, Archive Center
Access, and for OpenText™ My Archive.
• OpenText Archive Center - Update Installation Guide (Windows) (AR-DWZ)
This guide describes the installation of the latest “patch collection” for Archive
Center, called Update 16.2.3 (20.2).

Note: Update 16.2.3 (20.2) delivers new features and fixes for Archive
Center. In this documentation we assume that Update 16.2.3 (20.2) is
installed.
• OpenText Document Pipelines - Overview and Import Interfaces (AR-CDP)
This guide describes concepts, tools, and scenarios of OpenText™ Document
Pipeline and gives detailed information on the standard DocTools.

Release Notes The Release Notes describe the following aspects in detail:

• Software supported by the product

vi OpenText™ Archive Center AR160200-00-IGW-EN-10

 About OpenText Archive Center

• Requirements
• Restrictions
• Important dependencies
• Last-minute changes regarding the documentation
• Identification codes of the current documentation

The Release Notes are continually updated. The latest version of the Archive Center
Release Notes is available on My Support (https://knowledge.opentext.com/
knowledge/llisapi.dll/Open/52712069).

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) vii

Chapter 1
Prerequisites for Archive Center

3rd-party The following software has to be installed on the computer before you install the
software Archive Center components.

Note: Check the Release Notes in My Support (https://

knowledge.opentext.com/knowledge/llisapi.dll/Open/52712069) for latest
information about supported environments.

Operating system
For information about the supported systems and versions, see the Release
Notes in My Support (https://knowledge.opentext.com/knowledge/llisapi.dll/
Open/52712069). Only English language settings with default decimal separators
are supported.
Only English language settings with default decimal separators are supported.
Microsoft® Visual C++®
Archive Center requires a Microsoft Visual C++ package. For supported
versions, see the Release Notes in My Support (https://knowledge.opentext.com/
knowledge/llisapi.dll/Open/52712069).
.NET Framework
OpenText™ Administration Client requires .NET Framework. For supported
versions, see the Release Notes in My Support (https://knowledge.opentext.com/
knowledge/llisapi.dll/Open/52712069).
Verify that the “.NET Framework” feature is enabled in the Windows Server
Manager.

Note: The Archive Center Installer does not check for this requirement.

Database
Archive Center requires Microsoft® SQL Server®, Microsoft® Azure® SQL
Database, or Oracle® Database. For supported versions, see the Release Notes in
My Support (https://knowledge.opentext.com/knowledge/llisapi.dll/Open/
52712069).
The database can be installed locally or on a remote system.
Java
Archive Center requires Java™ Development Kit, or Java™ Runtime
Environment. For supported versions, see the Release Notes in My Support
(https://knowledge.opentext.com/knowledge/llisapi.dll/Open/52712069).

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) 9

Chapter 1 Prerequisites for Archive Center

Application server
Archive Center requires Apache® Tomcat™. For supported versions, see the
Release Notes in My Support (https://knowledge.opentext.com/knowledge/
llisapi.dll/Open/52712069).

General Do the following to ensure a successful installation of Archive Center:

settings

Basic settings
See “Configuring basic settings” on page 10 for recommended settings.
OpenText Directory Services
Directory Services (OTDS) can either be installed locally or remotely, and you
can either use an existing instance or install a new one. Depending on which
landscape you want to use, the installation paths differ. For more information,
see “Setting up Directory Services” on page 20.
Archive Center requires OTDS. OpenText recommends to use the latest OTDS
version. For supported versions, see the Release Notes in My Support (https://
knowledge.opentext.com/knowledge/llisapi.dll/Open/52712069).

Conventions The following variables are conventions for this documentation:

• The installation directory for Archive Center is called <OT install AC>.
The default value is C:\Program Files\OpenText.
• The directory for configuration data is called <OT config AC>.
The default value is C:\ProgramData\OpenText\Archive Server 16.2.0\
config.

Procedure

• “Installing Java” on page 15

• “Setting up Apache Tomcat” on page 15
• “Setting up Directory Services” on page 20

1.1 Configuring basic settings

Do the following to avoid problems during installation or runtime.

10 OpenText™ Archive Center AR160200-00-IGW-EN-10

 1.1. Configuring basic settings

1.1.1 Required permissions

To install Archive Center into the default folder (%programfiles%), the user must
have administrative rights. You can install Archive Center without administrative
rights if the following conditions are met:

• You do not install Directory Services locally but use an existing instance.
• You install Archive Center into another folder than %programfiles% for which
the user has write access.

Tip: You can grant full access to a user by running the following command:
icacls <folder> /grant <domain\user>:(OI)(CI)F

In any case, the “Log on as a service” privilege is required.

Run secpol.msc and add the user or group in Local Policies > User Rights
Assignment > Log on as a service.

Tomcat user Tomcat must be run by a dedicated user (not LocalSystem). If this user is not a
member of the local Administrators group, some restrictions apply. For more
information, see “Running Tomcat without local administrative rights” on page 15.

1.1.2 Hardware and software recommendations

Paging space The amount of paging space should be about the same as the amount of RAM.

Prerequisites for hard disk systems

• Enterprise-ready disk arrays are used.

• High-performance and random access to data and file system metadata (for
example, directory structures) is provided.
• Multi-threaded access is provided.
• Standard file system calls (read, write, stat, delete, etc.) always return results
comparable to locally attached hard disks.
• Disks are protected against data loss by backup or similar technologies.

Hard disk layout Most disks for Archive Center must be mirrored with RAID 1, and there must be at
least three independent disks. The secure operation of the database requires one disk
for the database and two separate disks for the log files. Archive Center stores all
documents temporarily on hard disk. This disk must be protected by RAID 5 or
RAID 1.

For the disk layout of an Oracle Database, see the Oracle documentation (http://
www.oracle.com/pls/db112/homepage).

For the disk layout of a Microsoft SQL Server database, see the following MSDN
entries:

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) 11

Chapter 1 Prerequisites for Archive Center

• SQL Server Best Practices (http://msdn.microsoft.com/en-us/sqlserver/

bb671432.aspx)
• Disk Partition Alignment Best Practices for SQL Server (http://
msdn.microsoft.com/en-us/library/dd758814%28SQL.100%29.aspx)

Unwanted frag- Be aware that the file system may fragment disk partitions in an undesirable
mentation manner, depending on the used type of file system. This can lead to incorrect free
space detection, causing attempts to write data to the file system to fail, resulting in
a “no space left on device” message.

Schedule regular defragmentation, in particular for the partitions holding caches

and volumes.

1.1.3 Network recommendations and restrictions

Static ports SQL Server must use static ports. Dynamic ports will not work.

Ports to open Archive Center requires the following ports, which must be configured in the
firewall:

RPC
Tools and administration interface: 4020, 4027, 4030, 4032, 4033, 4034
TCP
HTTP/HTTPS ports for Tomcat as defined in the server.xml file (default: 8080,
8090)

Enforcing In mixed IPv4/IPv6 environments, you may need to enforce preferred usage of one
protocol of the protocols.

To enforce IPv4 or IPv6:

1. Open the window to edit the system environment variables.

Tip: In the Start menu, search for edit the system environment
variables.

2. Create a system variable named AS_PREF_IP and then enter a Value of 4 or 6,

depending on the protocol to be preferred.

Related Topics

• “Optimizing system for network applications” on page 13

12 OpenText™ Archive Center AR160200-00-IGW-EN-10

 1.1. Configuring basic settings

1.1.4 Testing network environment

Test the connections between Archive Server and your leading application on <server
name> (ensure that lookup and reverse lookup are working in your network):
ping <server name>
and on <server name>
ping <archive server name>

Do the same for the connection to the Enterprise Scan, if you use the mass scanning
scenario. Make sure that lookup and reverse lookup are working. If you are using a
remote database, do the same for the database server.

1.1.5 Optimizing system for network applications

When a task requests a port, the operating system by default assigns any port
between 1024 and 65535. If, for example, Tomcat is configured to run on port 8080, it
can happen that Windows assigns this port to some other application before Tomcat
starts. Do the following to avoid this situation.

To configure the dynamic port range:

1. Start a command prompt with Run as administrator (elevated command

prompt) and enter the following to avoid running out of ports.

Note: These commands set the minimum port number to 8091 (by default,
Archive Server uses port 8090 for HTTPS). If your system requires a
different setting, for example, because an application needs a certain port
above 8091, change the commands correspondingly, where num = 65535 −
start.

For IPv4
netsh int ipv4 set dynamicport tcp start=8091 num=57444
netsh int ipv4 set dynamicport udp start=8091 num=57444

For IPv6
netsh int ipv6 set dynamicport tcp start=8091 num=57444
netsh int ipv6 set dynamicport udp start=8091 num=57444

2. Use following commands to verify the result of the previous step (for IPv6,
replace IPv4 accordingly):
>netsh int ipv4 show dynamicportrange tcp
Protocol tcp Dynamic Port Range
---------------------------------
Start Port : 8091
Number of Ports : 57444

and
>netsh int ipv4 show dynamicportrange udp
Protocol udp Dynamic Port Range
---------------------------------

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) 13

Chapter 1 Prerequisites for Archive Center

Start Port : 8091

Number of Ports : 57444

Configure the processor scheduling for background processes to optimize the

performance.

To adjust for best performance of background processes:

1. Press WINDOWS LOGO+PAUSE to open Control Panel > System.

2. Click Advanced system settings > Advanced.

In the Performance area, click Settings and select the Advanced tab.

3. From Processor scheduling, select Background services.

Click OK.

1.1.6 Checking computer name

Important
Ensure that the name of the computer hosting Archive Center does not contain
any underscores (“_”).

To check the computer name:

• Press WINDOWS LOGO+PAUSE to open Control Panel > System.

If the name contains underscores (“_”), see the procedure below.

To change the name of the computer:

1. Click Advanced System Settings > Computer Name > Change.

2. Enter the computer name and the domain.

3. Click OK.
You will be asked for credentials and you must restart the computer.

1.1.7 Disabling disk cache of hard disk

To avoid loss of data, disable the Windows disk caching.

To disable disk caching:

1. Open Device Manager > Disk Drives > Properties of the drive > Policies.

2. Select the Quick removal check box.

3. Close all the applications opened before, such as Computer Management.

14 OpenText™ Archive Center AR160200-00-IGW-EN-10

 1.2. Installing Java

1.2 Installing Java

For supported versions, see the Release Notes in My Support (https://
knowledge.opentext.com/knowledge/llisapi.dll/Open/52712069).

Notes

• OpenText recommends running Archive Center with the current JDK update
version to avoid security and stability issues.
• If Open JDK 11 is used you must set the JAVA_HOME path in the system
environment variable. This is not required using Oracle Java 11.
• For known issues concerning the installation of Java 8 and troubleshooting
information, see also this article in the OpenText Knowledge Base (https://
knowledge.opentext.com/knowledge/cs.dll/kcs/kbarticle/view/KB2851395).

To install Java:

1. Download the Java Development Kit (JDK) from the Oracle website (http://
www.oracle.com/technetwork/java/javase/downloads/index.html).
OpenText recommends running Archive Center with the current JDK update
version to avoid security and stability issues.

2. Run the installation file and follow the instructions.

Note: Install the JRE. The JDK alone is not sufficient.

1.3 Setting up Apache Tomcat

OpenText recommends that you perform the following steps to install and configure
Tomcat:

1. Install Tomcat.
2. Configure Java options to optimize performance.
3. Configure the Tomcat user and the Tomcat connectors.

Running Tomcat without local administrative rights

If you want to run Tomcat under a user without local administrative rights, the
following restrictions apply:

• Do not install Tomcat into the default folder %programfiles% (C:\Program

Files) but into a folder with write access for the user.

• Do not use %programdata% (C:\ProgramData) as the configuration folder but a

folder with full write access for the user.

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) 15

Chapter 1 Prerequisites for Archive Center

1.3.1 Installing Tomcat

To install Tomcat:

1. Download the Windows Service Installer for the Tomcat software from https://
tomcat.apache.org/download-80.cgi.
OpenText recommends running Archive Center with the current Tomcat update
version to avoid security and stability issues.

2. Run apache-tomcat-<version>.exe to install the Tomcat software.

Tip: In the Choose Components window of the Apache Tomcat Setup,

select a Normal type of install.

Notes

• Do not use the ZIP file to install Tomcat.

• Do not select the Native support because the used version of OpenSSL is
incompatible with Archive Center.
• If you want to run Tomcat under a user without local administrative
rights, do not install Tomcat into the default folder %programfiles%
(C:\Program Files) but into a folder with write access for this user.
• When installing Tomcat, select a directory <Tomcat_home> which does
not include the versions number after the major number. For example,
use ...\tomcat8.5 for <Tomcat_home>, but not ...\tomcat8.5.x
or ...\tomcat9 for <Tomcat_home>, but not ...\tomcat9.0x.
• In case you want to upgrade Tomcat 7 to Tomcat 8.5 or 9.0.x OpenText
recommends to keep the original directory <Tomcat_home>. Do not to use
a directory name which includes the detailed version number
like ...\tomcat8.5.x or ...\tomcat9.0x for the new Tomcat version.
The later will cause problems when uninstalling Tomcat and/or when
installing patch collections and updates for Archive Center.

1.3.2 Configuring Tomcat options

For optimal performance, change the following Java settings for Tomcat.

To configure Java options for Tomcat:

1. Start the Configure Tomcat tool or run tomcat<version>w.exe in the

<Tomcat_home>\bin folder.

2. Click the Java tab.

3. Verify the path to the Java Virtual Machine.

Note: You can select Use default to avoid having to correct the path later,
for example, after a Java update.

16 OpenText™ Archive Center AR160200-00-IGW-EN-10

 1.3. Setting up Apache Tomcat

Keep in mind that Java updates require additional configuration changes.

4. In the Initial memory pool box, specify at least 2048 MB.

5. In the Maximum memory pool box, specify at least 2048 MB.

Note: For optimal performance, always set Initial memory pool and
Maximum memory pool to the same value.

6. The following setting avoids problems with CMIS names or property values
that contain backslashes (\).
In the Java Options field, add the following line:
-Dorg.apache.catalina.connector.CoyoteAdapter.ALLOW_BACKSLASH=true

7. Click OK.

8. Open the <Tomcat_home>\conf\logging.properties file in an editor.

9. In the line starting with .handlers = ..., remove the entry java.util.
logging.ConsoleHandler, and then save the file.

Note: OpenText recommends to remove the ConsoleHandler logging

parameter from the configuration to avoid getting duplicate log messages
in Catalina.out and ds_jni.log each time Tomcat is started or stopped.
Refer to the Tomcat documentation (https://tomcat.apache.org/tomcat-8.0-
doc/logging.html) how to remove the ConsoleHandler in productive
systems.

1.3.3 Configuring the Tomcat user

Admin rights During the installation of Archive Center, local administrative rights are required if
Tomcat has to be able to write to the C:\ProgramData folder. If you will install
Archive Center such that another folder is used, administrative rights may not be
required.

The user running Tomcat can either be a member of the local Administrators group
or a user with less permissions. In the latter case, see “Running Tomcat without local
administrative rights” on page 15.

To add the Tomcat user to the local Administrators group:

1. Log on as a user with administrative rights and run lusrmgr.msc.

2. In the console tree, select Groups, and then open the Properties of the
Administrators group.

3. Click Add, browse for the Tomcat user, and then click OK twice.

Tomcat user Run Tomcat with a user. Do not use the local system account.

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) 17

Chapter 1 Prerequisites for Archive Center

To set the user for Tomcat:

1. Start the Monitor Tomcat tool (tomcat<version>w.exe).

2. Click the Log On tab, and then select This account.

3. Enter the name and password of the user to run the Tomcat service.
Use the <domain>\<user> notation. The <user>@<domain> notation can lead to
connection errors when running the installer.

1.3.4 Configuring the connector and securing Tomcat

To use secure connections with TLS (Transport Layer Security; often also referred to
as SSL, Secure Sockets Layer), add a connector for HTTPS in the Tomcat
configuration. You may have to open ports on your routers when adding ports for
SSL/TLS. Automatically redirect clients that access a page with a security constraint
requiring SSL/TLS.

Important
When enabling SSL/TLS, OpenText recommends using a server certificate from
a Certificate Authority. The root certificate must be trusted by the JRE or JDK
and correctly imported into the truststore (for example, <JRE_HOME>\lib\
security\cacerts or <JDK_HOME>\jdk8\jre\lib\security\cacerts).

For information about enabling SSL/TLS, see the Tomcat SSL Configuration
HOW-TO (https://tomcat.apache.org/tomcat-8.0-doc/ssl-howto.html).

To configure Tomcat for SSL/TLS:

1. From the <Tomcat_home>\conf folder, open server.xml in an editor.

2. Ensure that APR Listener is commented out, for example:

<!-- <Listener className="org.apache.catalina.core.
AprLifecycleListener" SSLEngine="on" /> -->

3. After the line <Service name="Catalina">, define an HTTP connector port

according to the example.

Example:
<!-- Define a HTTP/1.1 Connector on port 8080 -->

<Connector port="8080"
protocol="HTTP/1.1"
redirectPort="8090"
connectionTimeout="20000"
disableUploadTimeout="true"
enableLookups="false"
/>

Notes

• Keep the default value for protocol (HTTP/1.1).

• Keep the default value for disableUploadTimeout (true).

18 OpenText™ Archive Center AR160200-00-IGW-EN-10

 1.3. Setting up Apache Tomcat

• Keep the default value for enableLookups (false).

4. After the line <Service name="Catalina">, define an SSL connector port.
Ensure that the redirectPort from the previous step matches the SSL
connector port, as shown in the following example.

Example:
<!-- Define a SSL HTTP/1.1 Connector on port 8090 -->

<Connector port="8090"
SSLEnabled="true"
scheme="https"
secure="true"
sslProtocol="TLS"
sslEnabledProtocols="TLSv1.2,TLSv1.1,TLSv1"
protocol="HTTP/1.1"
acceptCount="100"
maxHttpHeaderSize="8192"
maxThreads="150"
minSpareThreads="25"

algorithm="SunX509"
clientAuth="false"
disableUploadTimeout="true"
enableLookups="false"

keystoreFile="<path to keystore file>"

keystorePass="<password for the keystore>"
keyAlias="<yourKeyalias>"
keystoreType="<pkcs12 OR jks>"
/>

Notes

• Keep the default value for protocol (HTTP/1.1).

Do not use protocol="org.apache.coyote.http11.
Http11AprProtocol".

• Keep the default value for disableUploadTimeout (true).

• Keep the default value for enableLookups (false).

5. Save the file, and then restart Tomcat.

Further For more information, see the Tomcat SSL Configuration HOW-TO (https://
information tomcat.apache.org/tomcat-8.5-doc/ssl-howto.html).

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) 19

Chapter 1 Prerequisites for Archive Center

1.4 Setting up Directory Services

Depending on which landscape you want to use, see the corresponding item below.
See “Configuring OTDS” on page 20 for information related to all scenarios. See
“Scenario-specific settings” on page 22 for further important information for your
scenario.

• Local, new installation of OTDS

The Archive Center Installer can install all components, including OTDS, in one
go. This scenario is described in this guide.
• Remote, new installation of OTDS
First install OTDS on the remote computer. For more information, see OpenText
Directory Services - Installation and Administration Guide (OTDS-IWC).
Afterwards, install Archive Center. When asked by the Archive Center Installer
(Step 10), enter the credentials of the OTDS connection. The Archive Center
Installer will create the resource automatically.
• Local, existing installation of OTDS
The Archive Center Installer will use the existing local installation of OTDS.
When asked by the Archive Center Installer (Step 10), enter the credentials of the
OTDS connection. Do not use localhost as the Server name but the fully-
qualified name. The Archive Center Installer will create the resource
automatically.
• Remote, existing installation of OTDS
When asked by the Archive Center Installer (Step 10), enter the credentials of the
OTDS connection. The Archive Center Installer will create the resource
automatically.

1.4.1 Configuring OTDS

The following settings are required to use OTDS successfully:

Partition, groups, and users

User information from Active Directory must be mapped to OTDS. OTDS
provides a connector to push changes of user information to Archive Center.
The connector is configured through the (synchronized) resource; see Resource
on page 21 below.
For more information, see Section 3.8 “Synchronized User Partitions” in
OpenText Directory Services - Installation and Administration Guide (OTDS-IWC).
Further, Archive Center requires the following technical partition, groups, and
users. The Archive Center Installer takes care of these settings automatically.

• A non-synchronized partition named, for example, OTInternal. This

partition must be added to the access role of Archive Center.
The technical users for the Application Layer will be added to this partition
when creating tenants, for example, ba.tenant@OTInternal.

20 OpenText™ Archive Center AR160200-00-IGW-EN-10

 1.4. Setting up Directory Services

• The access role of Archive Center requires the Include Groups from OUs
setting.
For more information, see Section 6.7 “Including/excluding groups from
organizational units” in OpenText Directory Services - Installation and
Administration Guide (OTDS-IWC).
• A user named system.cmis within the OTInternal partition. The password
should never expire. You do not need to remember the password as system.
cmis is only used as a technical user for the Application Layer (Archive
Center CMIS).
• A group called $PushConnector with an assigned user called, for example,
pushconnector.

Resource
Archive Center is represented in OTDS by a resource (a unique name and an
identifier). The Archive Center Installer takes care of creating the resource
automatically.
For more information, see Section 5.2.2 “Creating a synchronized resource” in
OpenText Directory Services - Installation and Administration Guide (OTDS-IWC).
Impersonation right
Directory Services requires the “impersonate user” right. The Archive Center
Installer sets this right automatically.
For more information, see Section 5.3 “Configuring access to your resources” in
OpenText Directory Services - Installation and Administration Guide (OTDS-IWC).
Attribute mapping configuration
The OTDS user attribute mapping and group attribute mapping depend on the
scenario. See “Scenario-specific settings” on page 22.
For more information, see also Section 5.2.1.3 “Using resource attribute
mappings” in OpenText Directory Services - Installation and Administration Guide
(OTDS-IWC).
ACLs
The CMIS ACLs must be based on OTDS user IDs (not on the user name).
Names of users and groups are treated case-insensitive in OTDS, while CMIS
allows for case-sensitive names. If the ACLs are based on the user name it can
happen that permissions are not mapped correctly, because CMIS distinguishes
between, for example, access.default@OTInternal and access.
default@otinternal.

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) 21

Chapter 1 Prerequisites for Archive Center

1.4.2 Scenario-specific settings

To run Archive Center scenarios, Directory Services is mandatory. In particular,
OTDS is used for the following scenarios:

File Archiving

Use Directory Services to let file share users be able to access their files using a
CMIS interface. File share users are mapped to Directory Services users.
Attribute mapping configuration
The oTExternalSID field must include objectSID, in the %s format.

My Archive

Use Directory Services to let users have web access to their archived documents
through My Archive. Allow the corresponding Directory Services users to access
Archive Center by adding them to the access role of Archive Center.
My Archive users must be members of the OTDS group OTInternal
\<tenant>_UG, either directly or through another group membership.

22 OpenText™ Archive Center AR160200-00-IGW-EN-10

Chapter 2

Setting up the database

Archive Center supports Microsoft SQL Server, Azure SQL Database, and Oracle
Database. The database can be installed locally or remotely.

2.1 Setting up Microsoft SQL Server or Azure SQL

Database
Adhere to the following:

• You can either use an existing database or create a new database. The database
can reside on the computer on which Archive Center is installed or on a
dedicated database server.
• The Microsoft SQL Server or Client software has to be installed beforehand. For
remote database servers, the database and database user must have been created.
• If you use a local installation of SQL Server, the Archive Center Installer will
create the database and the user.
• For mandatory characteristics of the database for Archive Center, see “Database
characteristics” on page 23.
• SQL Server must use static ports. Dynamic ports will not work. For more
information, see “Configuring network connectivity” on page 47.

For a detailed instruction how to install an example SQL Server database for Archive
Center, see “Appendix: Setting up the database in Microsoft SQL
Server“ on page 47.

Using a remote database

Named Named instances are supported for remote databases and require a static TCP port.
instances

2.1.1 Database characteristics

Observe the following requirements and recommendations for the Archive Center
database:

• Database collation SQL_Latin1_General_CP1_CS_AS (code page 1252) is

recommended.
• OpenText recommends that the sort order of the database collation is case-
sensitive unless other products require a case-insensitive database.

For the following options, the respective settings are required:

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) 23

Chapter 2 Setting up the database

Azure SQL Database

• Auto Close must be False.

• Auto Create Statistics must be True.
• Auto Shrink must be False.
• Auto Update Statistics must be True.
• Close Cursor On Commit Enabled must be False.
• ANSI NULL Default must be True.
• ANSI NULLS Enabled must be True.
• ANSI Padding Enabled must be True.
• ANSI Warnings Enabled must be True.
• Arithmetic Abort Enabled must be True.
• Concatenate Null Yields Null must be True.
• Numeric Round-Abort must be False.
• Quoted Identifiers Enabled must be True.

SQL Server

• Recovery model must be Full.

• Auto Close must be False.
• Auto Create Statistics must be True.
• Auto Shrink must be False.
• Auto Update Statistics must be True.
• Close Cursor On Commit Enabled must be False.
• ANSI NULL Default must be True.
• ANSI NULLS Enabled must be True.
• ANSI Padding Enabled must be True.
• ANSI Warnings Enabled must be True.
• Arithmetic Abort Enabled must be True.
• Concatenate Null Yields Null must be True.
• Numeric Round-Abort must be False.
• Quoted Identifiers Enabled must be True.
• Page Verify must be CHECKSUM or TORN_PAGE_DETECTION.

Note: CHECKSUM protection can catch more errors but is also more
resource intensive than TORN_PAGE_DETECTION. For details, see
the Microsoft website (http://msdn.microsoft.com/en-us/library/
aa337525.aspx).

• SQL Server must be configured to support at least 200 concurrent

connections (default: unlimited).
This value depends on the web server configuration value for the maximum
number of supported threads. For Apache Tomcat, this is the maxThreads
connector parameter. Set the database processes parameter to maxThreads +
50.
• There must be two non-default file groups for Archive Center data and
index, respectively.
• The database user provided for Archive Center must be the dbo of the
database; see below for details.

24 OpenText™ Archive Center AR160200-00-IGW-EN-10

 2.1. Setting up Microsoft SQL Server or Azure SQL Database

Permissions for During the installation of Archive Center with a local instance of SQL Server, the
creating and database user is created as database owner with the full scope of assigned
running the
Archive Center
administration permissions. However, technical users who run an Archive Center
database database on a regular basis do not need the full scope of administration permissions
that are required for creating a database. Following security considerations, the
permissions of the database account used by Archive Center can be reduced after
successful installation.

For more information, see “Required rights for the SQL Server database user”
on page 50 or “Required rights for the Azure SQL Database user” on page 52.

2.1.2 Testing the database

In case the database already exists, verify that the database has all the required
features. Run the StPreSchemaCreateMSSQL.sql check script in a command
window (do not use Powershell). You can find the script in the Schema and Pre-
upgrade checks for Archive Center <version>.zip file, which is available on My
Support (https://knowledge.opentext.com/knowledge/cs.dll/Overview/68246636).

To test the database:

1. Prerequisites for Azure SQL Database:

a. Install Microsoft Command Line Utilities for SQL Server, available from the
Microsoft website (https://www.microsoft.com/en-us/download/
details.aspx?id=53591), which require the Microsoft ODBC Driver for SQL
Server (https://www.microsoft.com/en-us/download/details.aspx?
id=53339).
b. Ensure that the options described in “Database characteristics” on page 23
are configured. For example, run the following commands:
ALTER DATABASE <database> SET ANSI_NULLS on, ANSI_NULL_DEFAULT on,
ANSI_WARNINGS on, QUOTED_IDENTIFIER on, ANSI_PADDING on, ARITHABORT on
GO

2. Process the script as follows:

sqlcmd -U <user> -P <passwd> -d <database> -S <database server>\<instance>,<port>
‑i StPreSchemaCreateMSSQL.sql ‑v fgd='<data file group>' fgi='<index file group>'

Azure SQL Database

Leave <data file group> and <index file group> empty in case of Azure SQL
Database:
sqlcmd -U <user> -P <passwd> -d <database> ‑S <database server>\<instance>,<port>
‑i StPreSchemaCreateMSSQL.sql ‑v fgd='' fgi=''

Example 2-1: Testing the database

We assume that you process this script on the database server. The
following example shows default values for <instance> and <port>:
sqlcmd -U acdbuser -P acdbpassword -d AC -S localhost\MSSQLSERVER,1433
‑i StPreSchemaCreateMSSQL.sql ‑v fgd='AC_DATA' fgi='AC_INDEX'

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) 25

Chapter 2 Setting up the database

In this example, <database server>\<instance> is assumed to be

MYSERVER\MYINSTANCE, with the non-default port 15050:
sqlcmd -U ecr -P ecr -d ECR -S MYSERVER\MYINSTANCE,15050
‑i StPreSchemaCreateMSSQL.sql ‑v fgd='ECR_DATA' fgi='ECR_INDEX'

3. The script shows the affected rows per tested feature (lines starting with
“(0 rows affected)”, for example).
The script must not yield any messages beginning with FATAL:.
If you do not get any FATAL: messages, the configuration of connection and
user is correct.

2.2 Setting up Oracle Database

You can either use an existing database or create a new database. The database can
reside on the computer on which Archive Server is installed or on a dedicated
database server.

The Oracle server or client software has to be installed beforehand. A database and a
database user must have been created. For mandatory settings of the database for
Archive Center, see “Database characteristics” on page 26.

For a detailed instruction how to install an example database for Archive Center, see
“Appendix: Setting up the database in Oracle Database“ on page 55.

Important
To be able to connect to Oracle Database, additional client software is required:
On the remote host, either install the Oracle Instant Client for Windows or the
Oracle Full Client for Windows.

The bin folder of the client software must occur in the PATH variable before the
bin folder of the server software.

If the Oracle Database resides on the same host, the Client is already installed by the
Oracle Database installer.

2.2.1 Database characteristics

The following requirements for Archive Server database are mandatory.

• The database character set must be AL32UTF8. To verify, execute

select value from nls_database_parameters where parameter='NLS_CHARACTERSET';

• The national character set must be AL16UTF16 (Unicode UTF-16 Universal

character set). To verify, execute
select value from nls_database_parameters where parameter='NLS_NCHAR_CHARACTERSET';

• The ARCHIVELOG mode must be set. To verify, execute

select log_mode from v$database;

26 OpenText™ Archive Center AR160200-00-IGW-EN-10

 2.2. Setting up Oracle Database

• The database must be configured to support at least 200 processes. To verify,

execute
select value from v$parameter where name = 'processes';

This value depends on the web server configuration value for the maximum
number of supported threads. For Tomcat, this is the maxThreads connector
parameter. Set the database processes parameter to maxThreads + 50.

• There must be at least two non-default tablespaces with a block size of 8 KB for
the Archive Center data and index, respectively. These tablespaces must not be
named data and index. To verify, execute
select tablespace_name, block_size from dba_tablespaces;

• The database user provided for Archive Center must have the system and object
privileges listed in “Creating the database user” on page 60.

• The listener must be configured to support TCP/IP.

2.2.2 Remote DB on Oracle RAC

In case of a remote database that resides on an Oracle Real Application Cluster
(RAC), adapt the tnsnames.ora file.

To use a remote database with Oracle RAC:

1. Open the tnsnames.ora file in an editor.

2. Extend tnsnames.ora to include a TNS service name that points to the cluster
host and the SID of the cluster.

Example:
RACLINUX =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = rac-cluster01.example.com)(PORT = 1521))
(CONNECT_DATA =
(SERVER = DEDICATED)
(SERVICE_NAME = ORCL)
)
)

3. Before starting the Archive Server setup, ensure that at least one dedicated node
is running.

4. During the Archive Server setup, enter the following database parameters:

• Enter the TNS service name from Step 2.

• As database server, use the cluster host name, not the name of a dedicated
node.

• As Oracle SID, use the SID of the cluster, not the SID of the instance running
on a dedicated node.

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) 27

Chapter 2 Setting up the database

2.2.3 Testing the database

To verify that the database has all the required features, run the
StPreSchemaCreateOracle.sql check script in a command window (do not use
Powershell). You can find the script in the Schema and Pre-upgrade checks for AC
<version>.zip file, which is avagilable on My Support (https://
knowledge.opentext.com/knowledge/cs.dll/Overview/68246636).

Important
Ensure that the owner of the Tomcat process has at least read access on the
$ORACLE_HOME\network\admin\tnsnames.ora file.

To test the database:

1. Connect to the database.

Example:
sqlplus ecr/ecr@ecr_<db_host>

2. To test the characteristics of the database, enter:

@StPreSchemaCreateOracle.sql

You are prompted for the data and index tablespace names.

3. The script must not yield any messages beginning with FATAL:.
If you do not get any FATAL: messages, the configuration of connection and
user is correct.

Testing Oracle RAC

In case of Oracle RAC, enter a RAC node as the database server and SID, and the
RAC service as the service.

Example:
[oracle@racnode1 ~]$ sqlplus ecr/ecr@ORCL
SQL*Plus: Release 12.1.0.2.0 Production on Fri Aug 18 13:27:40 2017
Copyright (c) 1982, 2014, Oracle. All rights reserved.
Last Successful login time: Fri Aug 18 2017 13:26:39 -04:00
Connected to:
Oracle Database 12c Enterprise Edition Release 12.1.0.2.0 - 64bit Production
With the Partitioning, Real Application Clusters, Automatic Storage Management, OLAP,
Advanced Analytics and Real Application Testing options
SQL> @/tmp/StPreSchemaCreateOracle.sql
Please enter data tablespace: USERS
Please enter index tablespace: USERS

WARNING: Cannot determine archive log mode of database - please ensure it is set to
ARCHIVELOG
WARNING: Cannot determine number of processes - please ensure it is 200 at the least.
INFO: user=ECR
INFO: database server=racnode2
INFO: service=ORCL
INFO: oracle sid=ORCL2

Disconnected from Oracle Database 12c Enterprise Edition Release 12.1.0.2.0 - 64bit
Production

28 OpenText™ Archive Center AR160200-00-IGW-EN-10

 2.2. Setting up Oracle Database

With the Partitioning, Real Application Clusters, Automatic Storage Management, OLAP,
Advanced Analytics and Real Application Testing options

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) 29

Chapter 3
Installing Archive Center

Archive Center comes with an integrated installer (“Archive Center Installer”),

which performs the following tasks:

1. Checking prerequisites: Java and Tomcat correctly installed and configured.

2. Asking for input parameters.
3. Shutting down Tomcat.
4. Installing and configuring components.
5. Starting Tomcat.
6. Starting OpenText Administration Client or, if a “default tenant” was created
during installation, starting Archive Center Administration in a browser.

Related Topics

• “Prerequisites for Archive Center“ on page 9

3.1 Running the Archive Center Installer

When all prerequisites are met, you can start the installation.

Oracle RAC Ensure to avoid switches to another database node while running the setup. During
installation, switches do not happen transparently for Archive Center. The
installation can fail in this case.

To install Archive Center:

1. Download the self-extracting installer file (ArchiveCenterInstaller_20.2.

exe) from OpenText My Support (https://knowledge.opentext.com/knowledge/
llisapi.dll/Open/52699338).

2. Log on to the server as a user with administrator rights.

Remote setup
If you want to run the installer using Microsoft Remote Desktop (Terminal
Service Client), use the /admin option when establishing the remote
session.

3. Run ArchiveCenterInstaller_20.2.exe. The Archive Center Installer starts.

4. Accept the License Agreement.

5. The Archive Center Installer checks the prerequisites. When all checks have
finished successfully, click Next.

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) 31

Chapter 3 Installing Archive Center

6. On the Archive Center page, enter the following:

External host name

Name of the computer that will host Archive Center (default: name of the
local host). Enter a fully-qualified host name.
Archive Center operating mode
Depending on the scenario, select one of the following:
Multi tenant
Archive Center is installed in a cloud infrastructure. Archiving (write)
and read requests for different tenants are separated entirely. To use
Archive Center with more than one tenant, Archive Center Proxy is
required.

Note: This feature is only required for the OpenText public cloud.
For installations of Archive Center on customers’ sites, do not
select this option.
Single tenant
Archive Center is installed on a dedicated server within the company’s
network. Only one tenant is used, meaning that write and read requests
are not separated. Archive Center Proxy is not required.
Select this option.

32 OpenText™ Archive Center AR160200-00-IGW-EN-10

 3.1. Running the Archive Center Installer

Create a default tenant

If selected, the Archive Center Installer creates a tenant ready to be used
called “default”.
In “single tenant” mode, only one tenant is possible. Archive Center
Installer creates the “default” tenant automatically. You can ignore this
option.
In “multi tenant” mode, you can safely select this option. You can create
more tenants afterwards, for example, for production systems.

7. On the Application Server page, enter the following:

Note: Depending on your system, some settings may not be changeable.

For example, if only one instance of Tomcat is installed, the Archive
Center Installer automatically uses its settings.

Select Tomcat
Select the instance of Tomcat to be used (if applicable).
Tomcat HTTP port
Select the HTTP port configured for Tomcat; default: 8080 (if applicable).
Allowed values are 1 to 65534.
Tomcat HTTPS port
Select the HTTPS (SSL/TLS) port configured for Tomcat; default: 8090 (if
applicable). Allowed values are 1 to 65534.
Windows Service user
Enter the name of the Tomcat service user (if applicable).
Ensure that the <domain>\<user> notation is used. The <user>@<domain>
notation can cause connection errors.
Windows Service user password
Enter the password of the Tomcat service user.

8. On the Database System page, select the database system to be used.

If you use an installation of Microsoft SQL Server on the same computer, you
can additionally let the installer create the database for Archive Center.
Otherwise (Oracle Database or remote SQL Server), the database must exist
already.

9. On the Database Parameter page, do the following, depending on your

database installation:

SQL Server

• Local database

Port Enter the port configured for the database; default:

1433.

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) 33

Chapter 3 Installing Archive Center

Super user (sa) Enter the password of the database’s sa user.

password
Database user Enter the name of the user who will be created for
the Archive Center database.
Database user password Create and enter a password for the new database
user and confirm it.

• Remote database

Server name Enter the name of the computer hosting the

database.
Port Enter the port configured for the database or leave
blank to use the default port (1433).
Instance Enter the instance name of the SQL Server (default:
MSSQLSERVER).
Database name Enter the name of the database.

Important
The database must exist.
Database user Enter the name of the database user.
Database password Enter the password of the database user.
Data filegroup Enter the name of the data filegroup.
Index filegroup Enter the name of the index filegroup.

• Azure SQL Database

Server name Enter the name of the computer hosting the

database, for example:
myexample.database.windows.net
Port Enter 1433.
Instance Enter MSSQLSERVER.
Database name Enter the name of the database.

Important
The database must exist.
Database user Enter the name of the database user.
Database password Enter the password of the database user.
Data filegroup Leave empty.
Index filegroup Leave empty.

34 OpenText™ Archive Center AR160200-00-IGW-EN-10

 3.1. Running the Archive Center Installer

Oracle Database

Server name Enter the name of the computer hosting the database.
If the database is an Oracle RAC, enter the name of the
RAC cluster.

Important
Do not enter localhost, even if the database
resides on the same computer. Instead, enter the
actual hostname.
Port Enter the port configured for the database; default:
1521.
Database name Enter the name of the database.

Important
The database must exist.
Database user Enter the name of the database user.
Password Enter the password of the database user.
Service name Enter the TNS service as configured by the Oracle Net
Configuration Assistant (NetCA); default: ecr_<db
server>.
If the database is a remote Oracle RAC, enter the TNS
service name configured in “Remote DB on Oracle
RAC” on page 27.
Oracle SID Enter the system identifier for the database; default:
ECR.
If the database is an Oracle RAC, enter the ORACLE_
SID of the node specified as the Server name (not the
abstract SID of the RAC).
Data file group Enter the name of the data file group.
Index file group Enter the name of the index file group.
Local TNS admin Enter the folder where the Oracle net configuration files
are located; default: $ORACLE_HOME/network/
admin.

Important
Only local paths are supported.
UNC paths or mapped network drives will not
work.
Local Oracle home Enter the folder of the Oracle installation.
If you use Oracle client, enter the folder of the Oracle
client installation.
If you use Oracle instant client, enter the location to
which the Oracle instant client package was extracted.

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) 35

Chapter 3 Installing Archive Center

Note: Archive Center Installer tries to connect to the remote database for
30 seconds. In case of incorrect entries for server name, instance, or port,
the title bar shows “(Not Responding)” and you have to wait for the result
of the connection test.

10. On the Directory Services page, do one of the following:

• To install a new, local instance of OTDS, select the corresponding option and
choose a password for the OTDS administrator ([email protected]).
• To use an existing installation of OTDS, select the corresponding option and
specify the connection credentials. Enter the OTDS server URL in the form
<protocol>://<hostname>.<domain>:<port>, for example: https://
otdsserver.example.com:8090
Do not add any characters after <port>. For example, https://
otdsserver.example.com:8090/ will fail.

11. On the Folders page, you can change default parameters if required, for
example, installation folders. For details, see “Specifying folder settings”
on page 38.

Important
Do not use the default folders for production systems. Plan carefully
where to locate the files for the database and for temporary storage as
these may become very big.

Installation folder for OTDS

If you change the Installation folder to another partition than C:, ensure
that the new partition supports the 8.3 format. For more information, see
“Enabling 8.3 format” on page 40.

12. Click Install to start the installation.

If you selected to create a default tenant, the OpenText Archive Center
Administration page is started in a browser window after the installation has
finished.
Otherwise, OpenText Administration Client is started.
You can sign in using the credentials given in the summary shown in the next
step for first testing.

13. Click Next.

If an installation fails
In case of an error during installation, click Close. To find out which setup
caused the error, see the %temp%\OpenText\
Installer_<date>_<time>_.log file.
See also “Troubleshooting” on page 39.

The Summary page informs you about the following:

36 OpenText™ Archive Center AR160200-00-IGW-EN-10

 3.1. Running the Archive Center Installer

• After installation, the password of the dsadmin user (superuser of Archive

Center) initially is the empty string. For security reasons, set the password as
soon as possible. Although signing in as dsadmin into Administration Client
is not possible, dsadmin is still used by other components.

Important
Immediately set the password of the dsadmin user (using
Administration Client). For more information, see “Changing the
dsadmin password” on page 43.
Changing the password of dsadmin is also required when using OTDS.
• Local SQL Server only: A database named AC<n> was created in SQL Server
with a user named acadmin.
• Archive Center was started automatically (that is the Tomcat and Archive
Spawner processes).

Tip: In a command window, verify the status of the Archive Spawner

process by running the following commands:
> <OT install AC>\bin\profile.bat
> spawncmd status

where <OT install AC> by default is C:\Program Files\OpenText\

Archive Server 20.2.

• If you want to store the summary information for future reference, click
Save Summary.

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) 37

Chapter 3 Installing Archive Center

14. The notification server needs to be restarted manually. Open a command

window and enter the following:
spawncmd restart notifSrvr

Continue with the configuration as described in “Configuring Archive

Center“ on page 43.

Creating tenant Before users can sign in to Archive Center Administration, their tenant group must
exist. In the multi tenant operation mode, Archive Center Installer can create a
tenant for demonstration purposes. In the single tenant operation mode, no tenant
should have been created. Create the tenants in Administration Client: Users and
Groups > System > New Tenant. For more information, see Section 9.7 “Creating
tenants” in OpenText Archive Center - Administration Guide (AR-ACN).

Related Topics

• “Setting up Apache Tomcat” on page 15

• “Setting up Directory Services” on page 20

3.2 Specifying folder settings

You can specify the following on the Folders page:

No overlapping folders

All installation and configuration folders must be distinct. For example, you
cannot use one folder for the exports and for the search index.

Installation folder
Folder in which Archive Center is installed
Configuration folder
Folder in which configuration data is stored
The user running Archive Center (that is Tomcat and Spawner) must be allowed
to write to this folder. See also “Running Tomcat without local administrative
rights” on page 15.
DB data files
Folder for the database’s data (MDF) files (local database only)
DB index files
Folder for the database’s index (NDF) files (local database only)
DB log files
Folder for the database’s log (LDF) files (local database only)
DB primary file group
Folder for the database’s primary filegroup (local database only)
Document Pipeline folder
Folder in which documents are saved temporarily

38 OpenText™ Archive Center AR160200-00-IGW-EN-10

 3.3. Troubleshooting

Export folder
Folder in which the My Archive and Archive Center Access web clients save
files when their export function is used

Important
Depending on the scenario and usage, the exported files or their number
can become very big. Ensure that you provide enough disk space for the
export directory.

You can also change the folder location later using the Directory for the
generated EDRM-XML files configuration variable (internal name:
AS.AS.BIZ_EXPORT_DIRECTORY).
Search index folder
Folder in which the search index for the My Archive and Archive Center Access
web apps is stored

Important
Depending on the scenario and usage, the index can become very big.
Ensure that you provide enough disk space.

You can also change the folder location later using the ES_DATA_DIRECTORY
configuration variable in the <OT config AC>\AS.Setup file.
Buffer volumes
Folder in which the default disk volumes for buffers are created

Important
Do not use the default folder (%ProgramData%\OpenText\buffervols) for
production systems.

For more information about prerequisites for hard disk systems, see Section 5.2
“Configuring disk volumes” in OpenText Archive Center - Administration Guide
(AR-ACN).

3.3 Troubleshooting
• Retrying installation
If for some reason the Archive Center installation failed, you usually cannot
rerun the installation because changes made to the file system and the database,
for example, cannot be revoked automatically. Before trying to run the installer
again, do the following.

To clean up the system after a failed installation:

1. Stop the Tomcat and Archive Spawner services.

2. Remove each of the following setups by clicking Control Panel > Uninstall a
program, if applicable:
OpenText Administration Client, OpenText Archive Center CMIS,

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) 39

Chapter 3 Installing Archive Center

OpenText Archive Monitoring Server, OpenText Archive Center,

OpenText Directory Services, OpenText Document Pipeline Base,
Document Pipeline Info, OpenText File Archiving
3. Delete the database AC on SQL Server.

– In case of a local database, additionally remove the database user

(acadmin).
– In case of a remote database, recreate an empty database (for example, AC).
The database user (for example, acadmin) must still exist.
4. Delete the following folders. If you changed the default path, delete the
folder accordingly:
Installation folder (C:\Program Files\OpenText),
Configuration folder (C:\ProgramData\OpenText)

Note: Local OTDS installations are always located in C:\ProgramData\

OpenText. Delete this folder even if you changed the default path.

5. To clean up the Tomcat installation, delete all files and folders that were not
present in the original Tomcat instance. In particular, the Archive Center
Installer placed files in the following folders: <Tomcat_home>\conf\
Catalina\localhost, <Tomcat_home>\webapps, and <Tomcat_home>\work
\Catalina\localhost.

6. Open the window to edit the system environment variables and delete all
System variables that start with ECM_.
Further, remove the entry for the Archive Spawner in the Path variable
(default: C:\Program Files\Common Files\Open Text\Spawner\bin;).

Tip: Press WINDOWS + PAUSE to open the System item in Control

Panel, and then click Advanced system settings.
• Enabling 8.3 format
Directory Services must be installed on a drive or partition that supports the 8.3
format. Trying to install OTDS on a partition that does not support 8.3 format
will lead to an error. By default, C: supports 8.3 format.

To check whether a partition supports the 8.3 format:

• Open a command window and run the following command to check the
drive <drive>:
FSUTIL.EXE 8dot3name query <drive>
For example, FSUTIL.EXE 8dot3name query C: always yields
The volume state for Disable8dot3 is 0 (8dot3 name creation is
enabled).
The registry state of NtfsDisable8dot3NameCreation is 2, the
default (Volume level setting).
Based on the above two settings, 8dot3 name creation is enabled on
C:.

40 OpenText™ Archive Center AR160200-00-IGW-EN-10

 3.4. Running Archive Center Installer silently

To enable 8.3 format for a partition:

• To enable 8.3 format for the drive <drive>, run:

FSUTIL.EXE 8dot3name set <drive> 0

Related Topics

• “Prerequisites for Archive Center“ on page 9

• “Configuring basic settings” on page 10
• “Setting up Directory Services” on page 20

3.4 Running Archive Center Installer silently

The Archive Center Installer offers the option to install Archive Center without user
interaction. In this case, all required input values must be configured in a properties
file.

To run the Archive Center Installer silently:

1. Open the EIAInstaller.properties file in an editor.

To adapt a property to your needs, remove the # symbol in front of the property
and add a value according to the list below.

Note: You only need to change a property’s value if it is different from the
default value mentioned below.

Tomcat.Servicename Enter the name of the Tomcat instance to be used.

Default: Tomcat <version>
Tomcat.Port.Http Enter the HTTP port configured for Tomcat.
Default: 8080
Tomcat.Port.Https Enter the HTTPS (SSL) port configured for Tomcat.
Default: 8090
Tomcat.User.Password Enter the password of the Tomcat service user.
DB.Host Enter the name of the computer hosting the database.
DB.MSSQL.Instance Enter the database instance name.
Default: MSSQLSERVER
DB.Port Enter the port configured for the database.
Default: 1433
DB.Admin.Password Enter the password of the database’s sa user.
AS.BufferVolDir Enter the path to the volume buffer.
Default: C:\ProgramData\OpenText\BufVolume1

Save the file.

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) 41

Chapter 3 Installing Archive Center

2. From a command window, run <DVD drive>:\EIAInstaller.exe with option

‑ s, for example:
E:\EIAInstaller.exe -s

42 OpenText™ Archive Center AR160200-00-IGW-EN-10

Chapter 4

Configuring Archive Center

Although Archive Center is ready to be used after a successful installation, you must
perform some additional configurations. In particular, you can change passwords
for security reasons.

Further configuration for the Application Layer

To use the Application Layer and the web apps of Archive Center, several additional
steps are required. For more information, see OpenText Archive Center - Scenario
Configuration Guide (AR-CGD).

4.1 Signing in to Archive Server in Administration

Client
To authenticate against Archive Server using Directory Services, start
Administration Client and sign in as user [email protected].

Note: To administer users and groups, you use the Directory Services web
client, which is accessible under <protocol>://<host>:<port>/otds-admin.
For more information about working with OTDS, see OpenText Directory
Services - Installation and Administration Guide (OTDS-IWC).

4.2 Changing the dsadmin password

The initial password of the dsadmin superuser is not set. Assign a password as soon
as possible.

Note: Although signing in as dsadmin into Administration Client is not

possible when OTDS is used, dsadmin is still used by other components.

To set the password of the dsadmin user:

1. Sign in to Administration Client as an OTDS user with administrator rights (for

example, [email protected]).

2. In the console tree, open the Archive Server > System > Users and Groups
node, and in the result pane, select the Users tab.

3. Open the Properties of the dsadmin user and change the password.

4. Restart the Tomcat and Archive Spawner services for the changes to take effect.

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) 43

Chapter 4 Configuring Archive Center

4.3 Changing the password of the database user

The login (DBLOGIN) and password (DBPASSWORD) of the database user are encrypted
and stored in the setup file DBS.Setup. If you change the password of the database
user, also change the corresponding entry as described below.

To change the DB user password:

1. Start Administration Client and sign in to Archive Server.

2. In the console tree, expand the Archive Server node.

3. Create a secure password.

Note: Characters allowed within a password are all printable ASCII

characters except: “;”, “'” and ““”.

4. Select the Configuration object in the console tree and search for the User
password of database configuration variable (internal name:
AS.DBS.DBPASSWORD).

5. Open the Properties of the User password of database configuration variable

and enter the new password.

6. Click OK.
The password is automatically stored and encrypted.

7. Change the password in the database application.

8. Restart the Tomcat and Archive Spawner services for the changes to take effect.

4.3.1 Oracle Database only: Checking the expiry date of the

password
You can check the expiry date of the user password. Run an SQL statement as
follows:

Example: sqlplus ecr/ecr@ecr_<local_host>

select username,account_status,expiry_date from user_users;

Note: With Oracle 11, the default password policy changed. Now, by default a
user password expires after 180 days.

If you do not want your password to expire, consult your local database
administrator to modify your profile accordingly.

Further See also the Oracle information about security (http://www.oracle.com/technetwork/

information database/security/overview/index.html).

44 OpenText™ Archive Center AR160200-00-IGW-EN-10

 4.4. Configuring the ports for the SAP gateway

4.4 Configuring the ports for the SAP gateway

For the SAP Document Pipeline to function, the gateway ports need to be configured
in Windows.

To configure the ports for the SAP gateway:

• Open the C:\Windows\System32\drivers\etc\services file in an editor and

add the following lines. Depending on the gateway instances you use, you do
not need to add all 100 lines:
sapgw00 3300/tcp #SAP Gateway
sapgw01 3301/tcp #SAP Gateway
⋮ ⋮ ⋮
sapgw99 3399/tcp #SAP Gateway

4.5 Configuring different internal and external

hostname
If in an environment the internal and external name of the Archive Center host
diverge, do the following.

To configure diverging internal and external hostnames:

1. Start Administration Client, and then connect to Archive Center (Archive

Center).

2. Select the Configuration object in the console tree and search for my_host.

3. Open the Properties of the External Archive Server Host Name configuration
variable (internal name: AS.DS.MY_HOST_NAME).
As Value, specify the fully qualified external hostname,, for example
externalhost.domain1.example.com.

4. Open the Properties of the Alias Archive Server Host Name(s) configuration
variable (internal name: AS.DS.MY_HOST_ALIASES).
As Value, specify a comma-separated list containing the internal hostname,
external hostname, and the fully qualified external hostname, for example
internalhost,externalhost,externalhost.domain1.example.com.

Note: Changes to these settings do not take effect until the application
server is restarted.

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) 45

Chapter 4 Configuring Archive Center

4.6 Creating ILM group and user in OTDS

You must create the ILM group and user manually.

To create a dedicated group and user for ILM (OTDS):

1. Connect to the server on which OTDS is installed.

2. Create a new (OTDS) group with the name <tenant>_ILM.

The user partition of the new group must be a member of the access role for the
Archive Center resource.

a. In the console tree, click Directory Services > User Partitions > <your user
partition>.

Note: To verify that the user partition is a member of the access role
for the Archive Center resource, click Directory Services > Access
Roles > <your user role>. In the result pane, the user partition must be
listed in the Members tab.
b. In the action pane, click New Group.
c. Enter the group name as <tenant>_ILM.

3. Click Next, and then click Finish.

4. Create a user with the name <tenant>_ILM.

a. In the console tree, click Directory Services > User Partitions > <your user
partition>, and then in the action pane, click New User.
b. In the New User wizard, specify all required information (the name should
be ilm.<tenant>), and then click Finish.

5. In the result pane, on the Groups tab, select the group you have just created
(<tenant>_ILM), and then in the action pane, click Edit Members.

6. Search for the user, click Add to Group, and then click OK.

46 OpenText™ Archive Center AR160200-00-IGW-EN-10

Chapter 5
Appendix: Setting up the database in Microsoft SQL
Server

This chapter provides an example for the setup of Microsoft SQL Server. It does not
cover Azure SQL Database except for Section 5.5 on page 52.

Settings to be considered during installation of SQL Server

Collation tab
Using a case-sensitive (CS) and accent-sensitive (AS) database is recommended
unless other products require a case-insensitive database. The collation of this
database should be the same as the collation of SQL Server’s tempdb for
technical reasons. Therefore, OpenText recommends selecting a case-sensitive
and accent-sensitive server collation for maximum performance and
compatibility. For example, select SQL_Latin1_General_CP1_CS_AS.
Authentication Mode
On the Database Engine Configuration page, select the Account Provisioning
tab, and then enable SQL Server Authentication as Authentication Mode (for
example, as mixed mode). Enter and confirm the password for the sa logon.

5.1 Configuring network connectivity

Enable SQL Server to be connected via TCP/IP using SQL Server Configuration
Manager. The SQL Server must use static ports. Dynamic ports will not work.

To configure network connectivity:

1. Start SQL Server Configuration Manager.

2. Expand SQL Server Network Configuration > Protocols for MSSQLSERVER.

3. Double-click TCP/IP. If it is not enabled yet, enable it.

On the IP Addresses tab, scroll down to the IPAll area and ensure that TCP
Dynamic Ports is blank, and that TCP Port is set to the SQL Server port
(default: 1433).

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) 47

Chapter 5 Appendix: Setting up the database in Microsoft SQL Server

4. If the Shared Memory protocol is enabled, disable it.

5. Analogously, enable TCP/IP and disable Shared Memory for the client protocols
of SQL Native Client [11.0] Configuration and SQL Native Client 11.0
Configuration (32 bit).

6. If you had to change anything in the previous steps:

Expand SQL Server Configuration Manager (Local) > SQL Server Services,
right-click SQL Server (MSSQLSERVER), and then click Restart.
SQL Server is now ready to be connected using TCP/IP.

48 OpenText™ Archive Center AR160200-00-IGW-EN-10

 5.2. Creating the SQL Server login

5.2 Creating the SQL Server login

In the SQL Server Management Studio (Security > Logins), create a new login (for
example, ecr).
Select the SQL Server Authentication option.
Clear the Enforce Password policy option.

5.3 Creating the database

1. In the SQL Server Management Studio, connect to the database engine as sa.

2. Select New Database.

3. Under General, enter a database name (for example, ECR) and the owner of the
database (for example, ecr).

4. Under Filegroups, create one filegroup for data and one for index (for example,
ECR_DATA and ECR_INDEX).

5. Create the database files for the data and the index filegroups:

a. Add two files for the data and index filegroups created before: Choose a
logical name for the files (for example, ECR_DATA_1 and ECR_INDEX_1,
respectively).
Choose the respective filegroup (in the example, select the ECR_DATA
filegroup for the ECR_DATA_1 file and the ECR_INDEX filegroup for the ECR_
INDEX_1 file).
Choose a path where the files are to be located. The files will be created in
the folder you enter. The folder must exist.
b. Choose a path for the primary filegroup and the transaction log (named
<database name> and <database name>_log, respectively.

Important
Do not use the default locations in the SQL Server installation folder.
The transaction log should be located on an empty disk without any
other files.

Specify a suitable initial size and enable unrestricted autogrowth for each of
the files:

Example:

Logical Name File Type Filegroup Initial Size Autogrowth

(MB)
ECR Rows Data PRIMARY 50 By 1 MB
ECR_log Log n/a 100 By 10 %
ECR_DATA_1 Rows Data ECR_DATA 100 By 100 MB
ECR_INDEX_1 Rows Data ECR_INDEX 100 By 100 MB

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) 49

Chapter 5 Appendix: Setting up the database in Microsoft SQL Server

c. Click Options and set the following:

i. Select SQL_Latin1_General_CP1_CS_AS as the collation.

Note: CS (case-sensitive) and AS (accent-sensitive) are

recommended.
ii. Set the following options to True:
Auto Create Statistics, Auto Update Statistics,
ANSI NULL Default, ANSI NULLS Enabled, ANSI Padding
Enabled, ANSI Warnings Enabled, Arithmetic Abort Enabled,
Concatenate Null Yields Null, Quoted Identifiers Enabled
iii. Set the following options to False:
Auto Close, Auto Shrink,
Close Cursor On Commit Enabled,
Numeric Round-Abort
iv. Set Page Verify to CHECKSUM or TORN_PAGE_DETECTION.

Note: CHECKSUM protection can catch more errors but is also

more resource intensive than TORN_PAGE_DETECTION. For
details, see the Microsoft website (http://msdn.microsoft.com/en-
us/library/aa337525.aspx).
d. Click OK to create the database.

6. Under Security > Login, select the Properties of the user created before (for
example, ecr). Select the database created before (for example, ECR) as the
default database, and then click OK.

5.4 Required rights for the SQL Server database

user
Permissions for During the installation of Archive Center with a local instance of SQL Server, the
creating and database user is created as database owner with the full scope of assigned
running the
Archive Center
administration permissions. However, technical users who run an Archive Center
database database on a regular basis do not need the full scope of administration permissions
that are required for creating a database. Following security considerations, the
permissions of the database account used by Archive Center can be reduced after
successful installation.

Database permissions/roles required for running a database schema

• db_datareader
• db_datawriter
• public
• Permission to execute stored procedures
Recommendation: execute permission on the schema

50 OpenText™ Archive Center AR160200-00-IGW-EN-10

 5.4. Required rights for the SQL Server database user

To downgrade the database permissions:

1. Transfer the ownership to a new database user.

Example:
USE [ECR]
CREATE LOGIN ecrowner WITH PASSWORD='ecrowner',
DEFAULT_DATABASE=ECR, CHECK_EXPIRATION=OFF, CHECK_POLICY=OFF;
ALTER AUTHORIZATION ON DATABASE::ECR TO ecrowner;
GO

2. Map the existing login to the new database user with restricted permissions.

Example:
USE [ECR];
CREATE USER [ecr] FOR LOGIN [ecr];
EXEC sp_addrolemember 'db_datawriter', 'ecr';
EXEC sp_addrolemember 'db_datareader', 'ecr';
GRANT EXECUTE ON SCHEMA::[dbo] TO [ecr];
GO

Restricted Instead of downgrading the database permission, you can create a new login for a
permissions new database user with restricted permissions. After that, change the Archive
Center database access configuration to the new database account.

To create a new database account:

1. Create a new login and database user.

Example:
USE [ECR];
CREATE LOGIN ecrdb WITH PASSWORD='ecrdb',
DEFAULT_DATABASE=ECR, CHECK_EXPIRATION=OFF,CHECK_POLICY=OFF;

CREATE USER [ecrdb] FOR LOGIN [ecrdb] WITH DEFAULT_SCHEMA=[dbo];

EXEC sp_addrolemember 'db_datawriter', 'ecrdb';

EXEC sp_addrolemember 'db_datareader', 'ecrdb';
GRANT EXECUTE ON SCHEMA::[dbo] TO [ecrdb];
GO

2. Configure the Archive Center database access:

a. Start Administration Client and sign in to Archive Server.

b. Change the AS.DBS.DBLOGIN and AS.DBS.DBPASSWORD parameters to

reflect the new database login.
For more information, see “Changing the password of the database user”
on page 44.

Note: Changing DBLOGIN involves the same steps as when changing

DBPASSWORD.

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) 51

Chapter 5 Appendix: Setting up the database in Microsoft SQL Server

5.5 Required rights for the Azure SQL Database user

Permissions for During the installation of Archive Center with Azure SQL Database, the database
creating and user is created as database owner with the full scope of assigned administration
running the
Archive Center
permissions. However, technical users who run an Archive Center database on a
database regular basis do not need the full scope of administration permissions that are
required for creating a database. Following security considerations, the permissions
of the database account used by Archive Center can be reduced after successful
installation.

Database permissions/roles required for running a database schema

• db_datareader
• db_datawriter
• public
• Permission to execute stored procedures
Recommendation: execute permission on the schema

To downgrade the database permissions:

1. Transfer the ownership to a new database user.

Example:
CREATE LOGIN ecrowner WITH PASSWORD='<password of ecrowner>',
DEFAULT_DATABASE=ECR;
ALTER AUTHORIZATION ON DATABASE::ECR TO ecrowner;
GO

2. Map the existing login to the new database user with restricted permissions.

Example:
CREATE USER [ecrowner] FOR LOGIN [ecrowner];
EXEC sp_addrolemember 'db_datawriter', 'ecrowner';
EXEC sp_addrolemember 'db_datareader', 'ecrowner';
GRANT EXECUTE ON SCHEMA::[dbo] TO [ecrowner];
GO

Restricted Instead of downgrading the database permission, you can create a new login for a
permissions new database user with restricted permissions. After that, change the Archive
Center database access configuration to the new database account.

To create a new database account:

1. Create a new login and database user.

Example:
CREATE LOGIN ecrdb WITH PASSWORD='<password of ecrdb>',
DEFAULT_DATABASE=ECR;

CREATE USER [ecrdb] FOR LOGIN [ecrdb] WITH_DEFAULT_SCHEMA=[dbo];

EXEC sp_addrolemember 'db_datawriter', 'ecrdb';

52 OpenText™ Archive Center AR160200-00-IGW-EN-10

 5.5. Required rights for the Azure SQL Database user

EXEC sp_addrolemember 'db_datareader', 'ecrdb';

GRANT EXECUTE ON SCHEMA::[dbo] TO [ecrdb];
GO

2. Configure the Archive Center database access:

a. Start Administration Client and sign in to Archive Server.

b. Change the AS.DBS.DBLOGIN and AS.DBS.DBPASSWORD parameters to
reflect the new database login.
For more information, see “Changing the password of the database user”
on page 44.

Note: Changing DBLOGIN involves the same steps as when changing

DBPASSWORD.

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) 53

Chapter 6
Appendix: Setting up the database in Oracle
Database

Local database To set up a test database, you have to perform the following procedures on the
database server:

1. Set the language.

2. Install the Oracle server software and relevant patches.

3. Create the Oracle listener.

4. Create the database.

5. Create the database user.

6. Configure the Oracle listener.

7. Configure the TNS service names.

Remote In addition, if the database is located on a different server than Archive Center, you
database have to perform the following procedures on the Archive Server computer:

1. Install the Oracle Client software and relevant patches.

2. Configure the network service names or copy the tnsnames.ora and sqlnet.
ora files from the database server to the Archive Server computer.

6.1 Configuring language settings

To start the Oracle Installer or tools in English, ensure that the current regional
setting parameter is English (United States).

To set the regional options:

1. In Control Panel, click Regional and Language Options > Formats.

2. In the Formats drop-down list, select English (United States).

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) 55

Chapter 6 Appendix: Setting up the database in Oracle Database

6.2 Creating the Oracle Listener

1. To start the Net Configuration Assistant, from the Start menu, click Oracle -
<Oracle installation name> > Configuration and Migration Tools > Net
Configuration Assistant.
The path depends on the Oracle version and installation name you specified
during installation.

2. Welcome: Select Listener configuration, and then click Next.

3. Listener Configuration, Listener: Select Add, and then click Next.

4. Listener Configuration, Listener Name: Type a name for the Oracle listener, for
example, LISTENER, and then click Next.

5. Listener Configuration, Select Protocols: Add TCP to the selected protocols,

and then click Next.

6. Listener Configuration, TCP/IP Protocol: Use the standard TCP port number
1521, and then click Next.

Note: If you enter a different port here, you will need the port number
during the installation of Archive Center.

7. Listener Configuration, More Listeners: Select No, and then click Next.

8. Listener Configuration Complete: Click Next.

9. Welcome: Click Finish.

The listener is created and started.

6.3 Creating the test database

Note: If the Oracle software is already installed, ensure that the Oracle
Enterprise Manager Console DB is installed before you create a new database.

Prerequisites The disks used for the database must fulfil the following prerequisites:

• The volumes of the disks must not be compressed.

• Avoid the use of RAID 5 for redo logs and archived redo logs.

Important
The database must not be installed on a computer that works as primary or
backup domain controller.

To create the database with Oracle 11.2:

The following shows how to create a TEST database with the Oracle 11.2 Database
Configuration Assistant. This very simple test database will have the following
characteristics:

56 OpenText™ Archive Center AR160200-00-IGW-EN-10

 6.3. Creating the test database

• All database files are located in one directory. Thus, as a prerequisite, create a
directory in which you want all database files to be created (for example,
d:\dbdata).

• Redo log file groups consist always of two members.

1. To start the Database Configuration Assistant, from the Start menu, click
Oracle–OraDb11g_home1 > Configuration and Migration Tools > Database
Configuration Assistant.
The path depends on the Oracle installation name you specified during
installation.

2. Welcome: Click Next.

The number of steps shown in the dialog headers may vary between 11 and 12,
but there are always 11 steps processed.

3. Step 1 of 11: Operations: Select Create a Database, and then click Next.

4. Step 2 of 11: Database Templates: Select Custom Database, and then click
Next.

5. Step 3 of 11: Database Identification: Type a Global Database Name (for

example, ECR). The SID is set automatically. Click Next.

6. Step 4 of 11: Management Options:

• In the Enterprise Manager pane, select Configure Enterprise Manager and

Configure Database Control for local management.
• In the Automatic Maintenance Tasks pane, clear Enable automatic
maintenance tasks.

Click Next.

7. Step 5 of 11: Database Credentials: Feel free to set the passwords according to
your company standards.
Click Next.

8. Step 6 of 11: Storage Options:

• For storage type, select File System

• For storage location, select Use Common Location for All database Files,
and then enter the respective directory (directory must exist).

Click Next.

9. Step 7 of 11: Recovery Configuration:

a. Clear Specify Fast Recovery Area.

b. Select Enable Archiving.
c. Click Edit Archive Mode Parameters.

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) 57

Chapter 6 Appendix: Setting up the database in Oracle Database

d. Enter one or more directories on dedicated disks as archive log

destinations.
e. Click OK, and then click Next.

10. Step 8 of 11: Database Content:

a. Clear Oracle Text.

b. Select at least Enterprise Manager Repository.
c. Click Standard Database Components and clear all options. Ignore
warning, and then click OK.
d. Click Custom Scripts, and then select No Scripts to run.
e. Click Next.

11. Step 9 of 11: Initialization Parameters:

a. Click Memory, and then select Typical.

Memory Size 500 MB.

Note: This is the minimum for a test system; a reasonable value for a
productive database will be substantially larger.

Select Use Automatic Memory Management.

b. Click Sizing:
For the block size, select 8192 bytes.
For processes, select at least 200.
c. Click Character Sets, and then do the following:

• Database Character Set: Select Use Unicode (AL32UTF8).

• National Character Set: Select AL16UTF16 – Unicode UTF-16
Universal character set.
d. Click Connection Mode, and then select Dedicated Server Mode.
Click Next.

12. Step 10 of 11: Database Storage:

a. Expand the Storage tree listing.

b. Click Controlfile to check that there are at least two control files.
c. Create the tablespace ECR_DATA:

i. Click Tablespaces.
ii. Click Create.
iii. On the General tab, set the following:

• As name, enter ECR_DATA.

• As file name, enter ECR_DATA_1.dbf .

58 OpenText™ Archive Center AR160200-00-IGW-EN-10

 6.3. Creating the test database

• Accept the shown directory.

• As Size, enter 500 MB.

Note: This is the size for a test system; a reasonable value for
a productive database will be several GB.
• As status, select Online.
• As type, select Permanent.
iv. On the Storage tab, set the following:

• Extent Management:
Select locally managed.
Select Automatic Allocation.
• Segment Space Management:
Select Automatic.
• Enable logging:
Select yes.
• Block size:
Select default.
v. Click Create.
d. Create the tablespace ECR_INDEX. Proceed as for the tablespace ECR_DATA in
Step 12.c, but enter a different name (for example, ECR_INDEX), and file
name (for example, ECR_INDEX_1.dbf).
e. Configure the data files of the table spaces:

i. Expand the Datafiles tree listing.

ii. Click the entry for ECR_DATA, for example ECR_DATA_1.dbf.
iii. Select the Storage tab, and then set the following:

• Enable the Automatically extend datafile when full

(AUTOEXTEND) option and set the increment to 500 M Bytes.
• As maximum size, select Unlimited.
iv. Select the entry for ECR_INDEX, for example ECR_INDEX_1.dbf.
v. Click the Storage tab, and then set the following:

• Enable the Automatically extend datafile when full

(AUTOEXTEND) option and set the increment to 500 M Bytes.
• As maximum size, select Unlimited.
f. Configure the redo log groups:

i. Expand the Redo Log Groups.

ii. Click redo log group 1.

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) 59

Chapter 6 Appendix: Setting up the database in Oracle Database

iii. Set the File Size to 100 M Bytes.

iv. Verify the directory for the first redo log member.
v. Add at least one other file to the redo log members. This file must be
located on a separate disk (if you are using a SAN (Storage Area
Network) or something comparable you can omit this point).
vi. Repeat the definition (steps 12.f.ii to 12.f.v) for the redo log groups 2
and 3.
g. Click Next.

13. Step 11 of 11: Creation Options: Select Create Database, click Finish, and then
confirm with OK.
The database creation may take some time.

14. Database Configurations Assistant: Note the database control URL displayed,
and then click Exit.
The database is now created and started.

6.4 Creating the database user

1. Start SQL*Plus.
set ORACLE_SID=ECR
sqlplus "sys/<password> as sysdba"

2. Enter the following SQL commands:

create user ecr identified by ecr;

grant create sequence to ecr;

grant create table to ecr;
grant create view to ecr;
grant create session to ecr;
grant create procedure to ecr;
grant execute on DBMS_SQL to ecr;

alter user ecr default tablespace ecr_data;

alter user ecr quota unlimited on ecr_data;
alter user ecr quota unlimited on ecr_index;

exit

Using a role to grant the rights indirectly is not sufficient as stored procedures
will not have the rights.

For more information, see also “Required rights for the Oracle Database user”
on page 62.

60 OpenText™ Archive Center AR160200-00-IGW-EN-10

 6.5. Configuring the Oracle Listener

6.5 Configuring the Oracle Listener

1. To start the Net Manager, from the Start menu, click Oracle – <Oracle
installation name> > Configuration and Migration Tools > Net Manager.
The path depends on the Oracle installation name you specified during
installation.

2. If the location of the net configuration files is the default location, the existing
configuration has been loaded.
If you use a nonstandard location, click File > Open Network Configuration to
edit the listener configuration. Enter the according name of the directory
containing the listener.ora file, and then click OK.

3. Expand Oracle Net Configuration > Local > Listeners and click the name of the
existing listener, for example, LISTENER.
Select Listening Locations. There should be at least the following two
addresses:

• TCP/IP with your host and the port (default: 1521)

• IPC with key ORACLE_SID (default ECR)

4. Select Database Services, and then click Add Database.

5. Enter the global database name (for example, ECR), the Oracle home directory
(for example, E:\software\ora102), and the SID (for example, ECR).

6. Click File > Save Network Configuration to save the listener configuration to
the listener.ora file.

7. To make your changes effective, you have to restart the listener. Open a
command prompt and enter
lsnrctl stop
lsnrctl start

Or stop and start the respective service:

Oracle< <your oracle installation key> >TNSListener

The listener is now configured and ready for use.

6.6 Configuring Oracle TNS Service Names

To use SQL*Plus with Net Services Names and for some components of Archive
Center, you need to configure the tnsnames.ora file.

1. To start the Net Manager, from the Start menu, click Oracle – <Oracle
installation name> > Configuration and Migration Tools > Net Manager.
The path depends on the Oracle installation name you specified during
installation.

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) 61

Chapter 6 Appendix: Setting up the database in Oracle Database

2. If the location of the net configuration files is the default location, the existing
configuration has been loaded.
If you use a nonstandard location, click File > Open Network Configuration to
edit the Net Service Name configuration. Enter the according name of the
directory containing the tnsnames.ora file, and then click OK.

3. Expand Oracle Net Configuration > Local, and then click Service Naming.

4. Click Edit, and then click Create.

5. Page 1 of 5, Welcome: Enter the net service name (for example,

ECR_<localhost>), and then click Next.

6. Page 2 of 5, Protocol: Select TCP/IP (Internet Protocol), and then click Next.

7. Page 3 of 5, Protocol Settings: Enter the database host name and the configured
port of the Oracle listener and click Next.

8. Page 4 of 5, Service: Enter the configured service name of the database (for
example, ECR). Choose Dedicated server as the Connection Type, and then
click Next.

9. Page 5 of 5, Test: Click Finish.

10. Expand Oracle Net Configuration > Local, and then click Service Naming.

11. Select the just created service ECR_<localhost>. An address configuration is

displayed showing Address 1. Click + to add another address.

12. Select IPC as protocol and the ORACLE_SID of the database just created as Key
Name.

13. Click File > Save Network Configuration to save the Net Service Name
configuration to the tnsnames.ora file.

6.7 Required rights for the Oracle Database user

Technical database users who run an Archive Center database on a regular basis do
not need the full scope of administration privileges that are required for creating a
database.

Administration privileges required for creating a database schema

create user ecr identified by ecr;

grant create sequence to ecr;

grant create table to ecr;
grant create view to ecr;
grant create session to ecr;
grant create procedure to ecr;
grant execute on DBMS_SQL to ecr;

alter user ecr default tablespace ecr_data;

alter user ecr quota unlimited on ecr_data;
alter user ecr quota unlimited on ecr_index;

exit

62 OpenText™ Archive Center AR160200-00-IGW-EN-10

 6.7. Required rights for the Oracle Database user

Note: Using a role to grant the rights indirectly is not sufficient as stored
procedures will not have the rights.
Administration privileges required for running a database schema
We assume that the same database user is used to create and to run the database
schema.
grant create session to ecr;
grant create sequence to ecr;
alter user ecr quota unlimited on ecr_data;

Notes

• The CREATE SEQUENCE privilege is required only to adjust the Archive

Center sequences.
You do not need specific privileges to delete Archive Center sequences.
However, grant create sequence to ecr; is required to create a new
Archive Center sequence.
• If you use a different user to run the database than its owner (the user
who created the database), the user running the database needs
additional rights. Assign the missing “object privileges” by running a
corresponding grant all command, for example.

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) 63

Chapter 7
Appendix: Special commands

In the following, you can find information about the starting and stopping of
Archive Center, including the database.

7.1 Starting and stopping Archive Server with SQL

Server
To start Archive Center:

1. Use the Microsoft SQL Server Management Studio to start the SQL Server
service.
2. From the Control Panel, open Administrative Tools > Services.
3. Select Apache Tomcat, and then click Start.
4. Select Archive Spawner, and then click Start.

To stop Archive Center:

1. Open the Services window as described above.

2. Select Archive Spawner, and then click Stop.
3. Select Apache Tomcat, and then click Stop.

To stop the SQL Server database:

• Use the Microsoft SQL Server Management Studio to stop the SQL Server
service.

To set the startup type of Archive Server to manual:

1. Use Microsoft SQL Server Configuration Manager to change the startup type of
the SQL Server service.
2. Open the Services window as described above.
3. Double-click Archive Spawner, set the startup type to Manual, and then click
OK.
4. Double-click Apache Tomcat, set the startup type to Manual, and then click
OK.

To disable Archive Center:

1. Use Microsoft SQL Server Configuration Manager to change the startup type of
the SQL Server service.

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) 65

Chapter 7 Appendix: Special commands

2. Open the Services window as described above.

3. Select Archive Spawner, click Startup, set the startup type to Disabled, and
then click OK.

4. Select Apache Tomcat, click Startup, set the startup type to Disabled, and then
click OK.

7.2 Starting and stopping Archive Server with Oracle

Database
To start Archive Server:

1. From the Control Panel, open Administrative Tools > Services.

2. Select Oracle<Ora_Home>TNSListener, and then click Start.

Select Oracle<Ora_Home>Agent, and then click Start.
Select OracleService<SID>, and then click Start.

3. Select Apache Tomcat, and then click Start.

4. Select Archive Spawner, and then click Start.

To stop Archive Center:

1. Open the Services window as described above.

2. Select Archive Spawner, and then click Stop.

3. Select Apache Tomcat, and then click Stop.

To stop the Oracle Database:

1. Open the Services window as described above.

2. Select Oracle<Ora_Home>Agent, and then click Stop.

Select OracleService<SID>, and then click Stop.

To set the startup type of Archive Center to manual:

1. Open the Services window as described above.

2. Double-click Archive Spawner, set Startup type to Manual, and then click OK.

3. Repeat the previous step for the following services:

Apache Tomcat
Oracle<Ora_Home>Agent
OracleService<DatabaseInstance>

To disable Archive Center:

1. Open the Services window as described above.

66 OpenText™ Archive Center AR160200-00-IGW-EN-10

 7.2. Starting and stopping Archive Server with Oracle Database

2. Double-click Archive Spawner, set Startup type to Disabled, and then click
OK.

3. Repeat the previous step for the following services:

Apache Tomcat
Oracle<Ora_Home>Agent
OracleService<DatabaseInstance>

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) 67

Glossary
Archive Box
If enabled for a File Archiving data source, all folders and documents below the
specified path are archived and replaced by a single folder shortcut.
This option is intended for documents, and optionally folders, that need to be
archived but are no longer in daily use. Thus, the required disk space on the file
server, including the total number of files, can be reduced. This is in contrast to
the shortcut scenario where every file is replaced by an individual link(extended
Archive Center feature).

CMIS

See: Content Management Interoperability Services (CMIS)

Collection
Controls and defines all archiving activities and is mapped to a tenant-specific
logical archive(extended Archive Center feature)
See also: Data source

Content Management Interoperability Services (CMIS)

An open standard that allows different content management systems to inter-
operate over the Internet. CMIS defines an abstraction layer for controlling
diverse document management systems and repositories using web protocols.

Data source
Specifies the origin and properties of the documents that are archived by a
collection(extended Archive Center feature)

Tenant
A tenant consists of a defined user group for a customer. Tenants are entirely
delimited from one another.
In Archive Center, a tenant is defined by a user group with an associated,
dedicated policy(extended Archive Center feature).

AR160200-00-IGW-EN-10 Installation Guide for Windows (Integrated Archive Installer) 69
