Types of Database Replication

Database replication is the process of copying data from one database to one or more servers to ensure availability and reliability.

• Improves data availability by keeping multiple database copies.
• Increases fault tolerance if the primary database fails.
• Helps in disaster recovery and backup.
• Supports load balancing across servers.

Types of Database Replication

Types of Database Replication include Single-leader (Master-Slave), Multi-leader (Master-Master), and Peer-to-Peer replication.

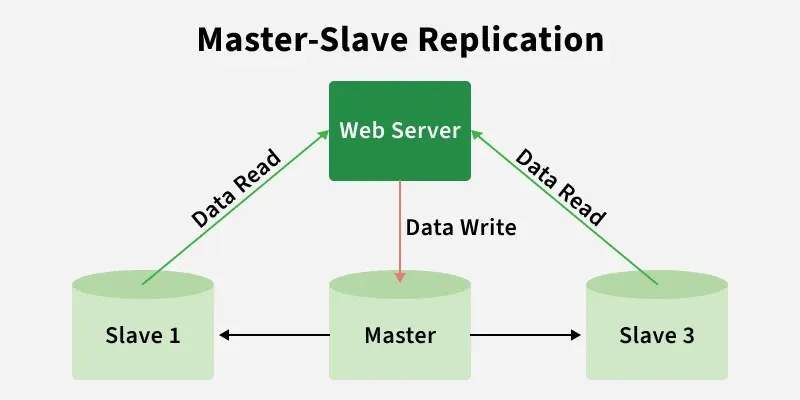

1. Master-Slave Replication

In master–slave replication, all write operations are handled by the master database, and the updated data is synchronized to slave databases.

• Master handles all inserts, updates, and deletes.
• Slaves maintain replicated copies of master data.
• Improves read performance by using slaves for queries.
• Provides basic fault tolerance.
• Commonly used in read-heavy applications.

Example: Imagine a library with two branches

• Master branch: The master branch is the main library that maintains the original and updated collection of books.
• Slave branch: This is a smaller branch that receives copies of new books from the master branch at regular intervals. Students can only borrow books that are physically present in the slave branch.

Working

Master-slave replication works by copying data changes from a primary database (master) to one or more secondary databases (slaves) in a sequential manner.

• Write Operation: Master records changes in its transaction log.
• Log Reading: Replication thread reads the transaction log.
• Data Transfer: Changes are sent from master to slave over the network.
• Sync Update: Slave applies the received changes to its data.
• Confirmation: Slave sends acknowledgment back to the master.

Applications

This architecture is widely used in systems that require high performance and read scalability.

• E-commerce Websites: Slave servers handle read-heavy tasks like product listings, while the master manages write operations such as orders.
• Content Management Systems: Read requests for content are served by slave servers, and all content updates are handled by the master server.

Benefits

Master–slave replication provides several advantages in distributed database systems.

• High Availability: A slave database can be promoted to become the new master in the event of a master database failure, ensuring high availability so that the system continues to function and remain accessible.
• Scalability: The system can manage additional users and data without compromising speed by shifting read operations to slave databases, improving scalability and reducing the load on the master database.
• Data Consistency: Master-slave replication keeps all copies of the data up to date by replicating changes from the master database to slave databases, ensuring strong data consistency across multiple databases.

Challenges

Despite its advantages, this approach also has some limitations.

• Replication Lag: Data inconsistencies may result from a latency (replication lag) between the time a change is performed on the master database and when it is replicated to the slave databases.
• Single Point of Failure: The master database acts as a single point of failure; if it goes down, the system may stop functioning until another database is promoted as the new master
• Limited Write Scalability: Since write operations are limited to the master database, it can become a bottleneck for write-heavy applications.

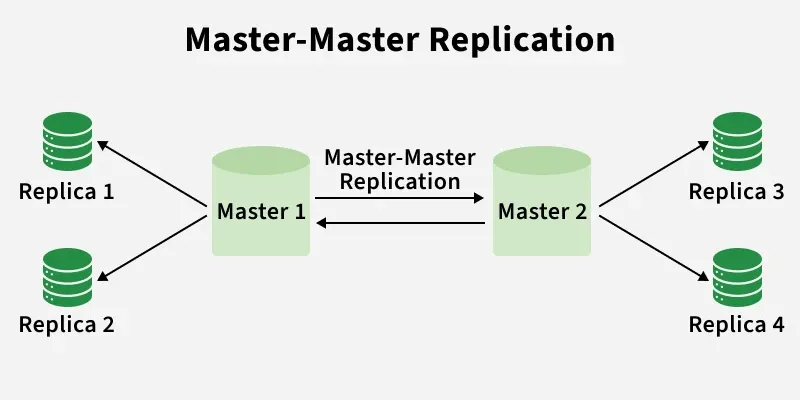

2. Master-Master Replication

Bidirectional replication allows two or more master databases to accept write operations, where changes made on one master are automatically synchronized with the others.

• All master databases can handle read and write operations.
• Updates on one master are replicated to other masters.
• Improves availability and fault tolerance.
• Requires conflict resolution to maintain data consistency.
• More complex to manage compared to master–slave replication.

Example: Like two air traffic controllers, both have equal authority, share updates continuously, and can take over for each other to ensure smooth, uninterrupted operations.

• Both controllers have full control over their sectors.
• Continuous communication prevents conflicts.
• Shared responsibility ensures reliability.
• One can fully take over if the other is unavailable.

Working

Multi-master replication allows multiple databases to act as masters and accept write operations simultaneously.

• Write Operation: A master records inserts, updates, or deletes in its transaction log.
• Replication Process: Changes are read from the log and prepared for replication.
• Network Transfer: Updates are sent to other master nodes (sync or async).
• Apply Changes: Receiving masters apply updates to their own data.
• Conflict Resolution: Conflicting simultaneous writes are handled to ensure consistency.
• Acknowledgment: Masters confirm successful application of changes.

Applications

This replication approach is suitable for systems that require high availability and distributed writes.

• Multi-Datacenter Applications: Active-active setup across data centers for low-latency data access
• Collaborative Editing Platforms: Multiple users edit content simultaneously with real-time synchronization

Benefits

Multi-master replication offers strong performance and reliability advantages.

• Improved Write Scalability: Write load is distributed across multiple masters, boosting performance in write-heavy systems
• High Availability: If one master fails, others continue handling writes without downtime

Challenges

Despite its advantages, multi-master replication introduces additional complexity.

• Complexity: Difficult to configure and manage because of conflict resolution, consistency, and network setup.
• Conflict Resolution: Simultaneous updates on different masters can cause conflicts that may need advanced logic or manual intervention.

3. Snapshot Replication

Snapshot replication creates a full copy of the database at a specific point in time and replicates it to other servers, mainly for reporting, backup, or distribution.

Example:

• Like taking a photo of a room at one moment
• The snapshot captures the exact state at that time
• It can be used later to restore the room to that state

Working

Snapshot replication works by periodically copying the entire database and distributing it to subscribers.

• Initial Snapshot: Full database copy (schema + data) is taken at the publisher.
• Distribution: Snapshot is stored in a distribution database.
• Replication Process: Publisher changes are tracked and saved in the distributor.
• Subscriber Updates: Subscribers apply received changes to stay in sync.

Applications

This replication method is commonly used where real-time updates are not critical.

• Data Warehousing: Periodic snapshots for analytics and reporting without load on production
• Auditing & Compliance: Preserves historical data states to meet regulatory requirements

Benefits

Snapshot replication offers simplicity and reliability for specific use cases.

• Easy Implementation: Simpler to configure and maintain than other replication types.
• Offline Access: Enables reporting or analysis without connecting to live systems.
• Data Protection: Acts as a point-in-time backup for recovery purposes.

Challenges

Despite its simplicity, snapshot replication has certain limitations.

• Data Consistency: Keeping multiple copies of a database synchronized is challenging, especially in environments with frequent updates, making data consistency difficult to maintain across all replicas.
• Storage Requirements: Storing multiple copies of the database, including snapshots and changes, can require significant storage capacity.

4. Transactional Replication

Transactional replication copies every change made at the publisher to subscribers in near real time, ensuring all databases remain synchronized and maintain data consistency.

• Changes are replicated immediately after they occur.
• Publisher sends updates to one or more subscribers.
• Ensures high data consistency across locations.
• Suitable for real-time or near real-time systems.
• Commonly used in high-availability environments.

Example: Picture a live stock market with constantly changing prices

• Every price change (transaction) is immediately broadcasted to all connected screens (replicas).
• Everyone sees the same price updates in real-time.

Working

Transactional replication works by tracking changes at the publisher, sending them through a distributor, and applying them to subscribers to keep data consistent.

• Publisher & Subscriber: Selected tables at the publisher are marked for replication
• Change Tracking: Inserts, updates, and deletes are continuously monitored
• Transaction Capture: Changes are grouped into transactions for consistency
• Distributor: Transactions are collected and forwarded to subscribers
• Subscriber Update: Subscribers apply changes to stay synchronized

Applications

These applications rely on near real-time replication to maintain accuracy, consistency, and a seamless user experience across distributed systems.

• Financial Services: Replicates transactions in near real time for auditing and compliance.
• Online Gaming: Keeps player actions and game state synchronized across servers.

Benefits

These benefits ensure real-time data synchronization, high availability, reliable disaster recovery, and efficient data access across distributed locations.

• Real-time Updates: Changes are immediately reflected across replicas, ensuring high availability and data consistency.
• Disaster Recovery: Replicated copies act as backups during primary database failures.
• Data Distribution: Provides up-to-date data to geographically distributed systems without performance impact.

Challenges

Despite its advantages, Transactional replication introduces additional complexity

• Configuration: Requires careful setup and expertise with agents, distributors, and subscribers.
• Overhead: Additional processing for replication can impact publisher database performance.

5. Merge Replication

Merge replication allows both the publisher and subscribers to update data independently and later synchronize changes, resolving conflicts when they occur.

• Supports two-way (bidirectional) data synchronization.
• Both publisher and subscribers can modify data.
• Works well with offline or occasionally connected systems.
• Uses predefined rules or manual input for conflict resolution.
• Ensures eventual data consistency.

Example: Imagine a team working on a shared document (database) in Google Docs

• Team members can edit the document offline (locally) and their changes are saved temporarily.
• When they connect online, their changes are merged with the main document, resolving any conflicts.

Working

Merge replication tracks changes on both publisher and subscribers, merges them during synchronization, and resolves conflicts to keep data consistent.

• Publisher & Subscribers: Selected tables allow read/write access on all nodes.
• Change Tracking: Both sides record their data changes.
• Conflicts: Conflicting updates may occur on the same data.
• Sync & Resolution: Changes are merged and conflicts resolved using rules.
• Update Distribution: Final updates are shared with all subscribers.

Applications

Merge replication is well suited for systems that require offline work with later data synchronization.

• Field Service Applications: Field workers update data offline and sync with the central server when reconnected.
• Healthcare Systems: Medical staff access and update patient records offline, then synchronize changes when online.

Benefits

Merge replication supports offline work with flexible, two-way data synchronization across distributed systems.

• Offline Updates: Devices can modify data while disconnected and sync later.
• Two-way Synchronization: Enables bidirectional data flow between publisher and subscribers.
• Flexibility: Provides multiple conflict resolution strategies for different needs.

Challenges

Merge replication introduces higher complexity and performance overhead due to conflict handling and synchronization.

• Complexity: Conflict resolution, synchronization, and troubleshooting require strong expertise.
• Performance: Merging and resolving conflicts increases processing and network overhead.
• Data Consistency: Errors during sync or conflict resolution can cause inconsistencies, demanding strict data integrity controls.
