TE S TING PROTEC TIVE REL AY S

Testing protective relays

As power grids get bigger and carry more power, the need for quick, reliable disconnection when faults occur becomes more and more urgent. The purpose of protective relay equipment is to sense fault states and trip circuit breakers. If a fault is not corrected early, personal injuries and serious damage can occur. Disconnection must take place selectively, i.e. it must be limited to the faulty part of the power grid. This is why the protective relay equipment must be able to distinguish between permissible heavy load conditions and hazardous operational disturbances. To avoid unjustiable interruptions, the protective relay equipment must not react to disturbances beneath a specied level called the pick-up value. If a relays curves/characteristics are to be tested at many points or angles, repeated manual adjustment of the test equipment is time consuming. Test equipment that can conduct a test automatically in accordance with a plan drawn up in advance is much faster and far more convenient. Moreover, the time during which the protective relay equipment is out of operation is minimized and the test can be conducted in exactly the same way every time it is run.

Simulating disturbances
Protective relay equipment must sometimes handle unusual faults that involve distortion, transients and harmonics. These unusual disturbances can be handled by test equipment having a DC-coupled amplier and a program that generates suitable disturbances or plays back information previously stored on a disturbance recorder. This permits nearly all forms of waveforms and transients to be generated.

Testing principles
Electric power grid protection systems guard extremely valuable equipment, and protective relay equipment plays a vital role in this protection chain. To ensure consistent reliability, protective relay equipment must be checked by testing at regular intervals. These tests must make certain that the protective relay equipment is operating according to its preset settings. The test equipment supplies the relay protection equipment with inputs that correspond to different faults and different operating situations. Pick-up values are approached by gradually changing the magnitudes of these inputs. Quick, selective disconnection in the event of a fault also requires correct operating times. These can be measured by supplying the protective relay equipment with inputs that exceed by a wide margin the pick-up value while simultaneously measuring the time that elapses prior to tripping. There are two main principles for testing protective relay equipment. For primary injection testing, high current is injected on the primary side of the current transformer. The entire chain current transformer, conductors, connection points, relay protection and sometimes circuit breakers as well is covered by the test. The system being tested must be taken out of operation during primary injection testing (usually conducted in connection with commissioning and also when secondary circuits are not accessible). For secondary injection testing, the protective relay equipment is disconnected from the measuring transformers and the circuit breaker. Current and voltage is fed directly to the protective relay equipment, and the system being tested does not have to be taken out of operation.

Testing current transformers

Current transformers have different cores for protection devices and energy measurement equipment. Measurement cores are highly accurate, but will go into saturation at high fault currents. The protective relay equipment must be connected to the correct core in order to be able to operate properly when a fault is present. This can be checked by plotting an excitation curve. The relays connection to the current transformer is measured using an AC voltage that is increased until the current transformer becomes saturated. Voltage is then plotted as a function of current, and the knee of the curve indicates saturation. Since the knee is much higher for the relay core than the core used for measuring purposes you can easily see whether or not the relay is connected to the correct core. Current transformers must also have the correct transformation ratio. This can be tested by injecting high current on the primary side, while simultaneously measuring the current in the secondary winding. Current transformers are tested, for the most part, in connection with commissioning. Since automatic testing proceeds at high speed and can be conducted repeatedly in exactly the same way, the time and effort devoted to preparations made before the rst test are well worthwhile.

S VERKER 750 /76 0

SVERKER 750/760

Relay Test Unit

The Sverker 750/760 Relay Test Unit is the engineer's toolbox. The control panel features a logical layout, still SVERKER 650 users will nd it comfortably familiar and will be able to start work right away. The SVERKER 750/760 features many functions that make relay testing more efcient. For example, its powerful measurement section can display (in addition to time, voltage and current) Z, R, X, S, P, Q, phase angle and cos . The voltmeter can also be used as a 2nd ammeter (when testing differential relays for example). All values are presented on a single easy-to-read display. You can also test directional protective equipment efciantly by means of the built-in variable voltage source. In SVERKER 760 this has a continuous phase shift function as well. Automatic reclosing devices can also be tested just as easily. Designed to comply with EU standards and other personal and operational safety standards, SVERKER 750/760 is also equipped with a serial port for communication with personal computers and the PC software SVERKER Win. Since the compact SVERKER weighs only 18 kg (39 lbs), it's easy to move from site to site. Two or more SVERKER units can also be synchronized, which for example allows the user to connect three SVERKER into a basic 3-phase test set.

Application
Relay Testing
SVERKER 750/760 is intended primarily for secondary testing of protective relay equipment. Virtually all types of single-phase protection can be tested. SVERKER 750/760 is able to test three-phase protection that can be tested one phase at a time, and also a number of protective relay systems that require phase shifting. Moreover, automatic reclosing devices can be tested.

Application example
IMPORTANT! Read the Users manual before using the instrument. Testing the pick-up and drop-out (SVERKER 760)
1. 2. 3. 4. Connect as shown in the diagram. Select stop conditions, dry or wet contact. Select HOLD to freeze the current reading. A until you get a red light at the built-in Press button SEL/ ammeter. Note! Maximum allowed current through the separate ammeter used in this connection example is 6 A. The other measurement points do not have this limitation. Press the MODE button. Use the key M to select , , W, VA... Press CHG (Change) Select ( , Iref ) or ( , Uref ) by using the key M. Press SEL (Select) Press ESC Set the voltage amplitude with the upper small knob. Make sure the main knob is set to 0. Turn on the SVERKER output by activating ON using the start switch M. Set the phase-angle. Use the lower knob for ne adjustment, and the middle knob for step of 90. Note! A small current owing in the circuit is required to measure the phase angle.

Examples of what SVERKER 750/760 can test:

Overcurrent relays Inverse time overcurrent relays Undercurrent relays Ground fault relays Directional overcurrent relays Directional ground fault relays Overvoltage relays Undervoltage relays Directional voltage relays Directional power relays Power factor relays Differential protection (differential circuits) Distance protection equipment (phase by phase) Negative sequence overcurrent relays Motor overload protection Automatic reclosing devices Tripping relays Voltage regulating relays Overimpedance relays, Z> Underimpedance relays, Z Thermal relays Time-delay relays

IEEE No.
50/76 51 37 50 67 67N 59 27 91 32 55 87 21 46N 51/86 79 94 5. 6. 7. 8. 9. 10. 11. 12. 13. 14.

Testing the operation time

15. Increase the current to 1.5 times the pick-up value. 16. Invoke the ON+TIME state by means of the start switch. The outputs will now remain turned on until the protective relay equipment operates. 17. Read the time from the display. Check also the high current setting using the same procedure.

Other elds of application

Plotting excitation curves Current and voltage transformer ratio tests Burden measurement for protective relay test equipment Impedance measurement Efciency tests Polarity (direction) tests Injection Maintained Injection continues without any time limitation. Momentary Injection continues only as long as the button is kept depressed. Max. time Injection stops automatically when the preset maximum time is reached. Filtering When ltering is selected, ve successive readings are averaged. The following can be ltered: Current, Voltage and Extra items that are measured. Off delay The turning off of generation can be delayed after tripping throughout a specied time interval that is expressed in mainsfrequency cycles.

S VERKER 750 /76 0

S VERKER 750 /76 0

Set of resistors Fine regulation of current and voltage are easy thanks to the built-in set of resistors. Display Presents time, current, voltage and other entities. Also used to make many setting, after you enter the setting mode by pressing button marked MODE. Freeze function (HOLD) This makes it possible to measure voltages and current as short as a quarter of a mains-voltage period by immobilizing the reading on the display. Voltage and current readings are frozen when the timer stops. If the timer does not stop, the reading present when the current was interrupted is frozen on the display. Start and stop conditions The timers start and stop inputs respond to changes, voltage or contact closing/ openings. The timers start input is also used when testing auto-reclosing relays, to synchronize two or more SVERKER units and to start generation with an external signal. Status indicator The timers start and stop inputs are each equipped with indicator lamps which, when lighted, indicate a closed circuit (useful for detecting contact closings/ openings) or the presence of voltage. These indicator lamps make it possible (for example) to check circuits before starting a measurement cycle. Timer inputs The timer has separate start and stop inputs, and it can be used to measure both external cycles and sequences initiated by SVERKER. The measured time appears on the display. Each input can be set to respond to the presence or absence of voltage (AC or DC) at a contact. Start switch Controls the turning on and off of the current source and timer. Can be set to one of four states. ON+TIME. Starts generation and timing simultaneously. Used to test over... relays (...means current, voltage or some other entity). Generation continues a) until the protective relay equipment operates and stops the timer or b) until the maximum time expires or the start switch is released if time-limited generation has been selected. OFF. Turns off the current source, whereupon generation is interrupted. ON. Turns on the current source in the generating state. OFF+TIME. Interrupts generation and starts the timer simultaneously. Used when testing under ...relays (...means current, voltage or some other entity). The timer is stopped

when the protective relay equipment operates. When automatic reclosing is to be tested, SVERKER an be set so that new generation will start when the timers start input is activated by the closing command. Computer communication interface SVERKER is equipped with a serial port for communication with personal computers and the PC software Sverker Win. Make/break contact Changes state automatically when a test is started. Can be used (for example) to synchronize two or more SVERKER units, other eternal equipment or to switch the voltage applied to the protective relay equipment back and forth between nonfaulty and faulty. Current source Provides 0-250 A AC, 0-250 V AC or 0-300 V DC, depending on the output that is being used. Settings are made using the main knob. The readings of current, voltage and other entities appear on the display. The start switch is used to turn the current source on and off. When time is being measured, this is done in synchronization with the timer. Ammeter and voltmeter Current and voltage are measured by the built-in ammeter and voltmeter. Resistance, impedance, phase angle, power and power factor can also be measured. Readings appear on the display. These instruments can also be used to take measurements in external

circuits. The voltmeter can also be used as a 2nd ammeter (when testing differential relays for example). Current and voltage can be displayed either as amperes and volts or as percentages of a given current or voltage (the present settings of the protective relay equipment for example). Auxiliary voltage source Provides 20-220 V DC in two ranges. Equipped with overload protection and separated from the other outputs. Used frequently to supply the object being tested. AC voltage source Intended primarily for use with voltage inputs to the protective relay equipment. Can provide 0-140 V AC and 0-359 phase shift (SVERKER 760). Since the AC voltage source is separated from the other outputs, it can be set independently of the current source. Tripping indicator Lights when a stop condition is fullled to indicate operation of the protective relay equipment. If the test being conducted incorporates timing, this indicator starts to blink when relay operation occurs. Main knob Used to set current output from the current source.

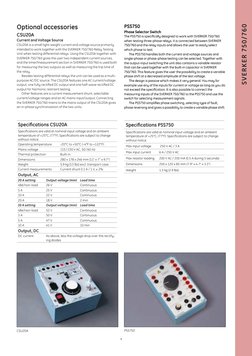

Optional accessories
CSU20A
Current and Voltage Source
CSU20A is a small light-weight current and voltage source primarily intended to work together with the SVERKER 750/760 Relay Testing Unit when testing differential relays. Using the CSU20A together with SVERKER 750/760 gives the user two independent current sources, and the timer/measurement section in SVERKER 750/760 is used both for measuring the two outputs as well as measuring the trip time of the relay. Besides testing differential relays the unit can be used as a multipurpose AC/DC source. The CSU20A features one AC current/voltage output, one fully rectied DC output and one half-wave rectied DC output for harmonic restraint testing. Other features are a current measurement shunt, selectable current/voltage ranges and an AC mains input/output. Connecting the SVERKER 750/760 mains to the mains output of the CSU20A gives an in-phase synchronization of the two units.

PSS750
Phase Selector Switch
The PSS750 is specically designed to work with SVERKER 750/760 when testing three-phase relays. It is connected between SVERKER 750/760 and the relay inputs and allows the user to easily select which phase to test. The PSS750 handles both the current and voltage sources and single-phase or phase-phase testing can be selected. Together with the output-input switching the unit also contains a variable resistor that can be used together with the built-in capacitor in SVERKER 750/760. This feature gives the user the possibility to create a variable phase shift at a decreased amplitude of the test voltage. The design is passive which makes it very general. You may for example use any of the inputs for current or voltage as long as you do not exceed the specication. It is also possible to connect the measuring inputs of the SVERKER 750/760 to the PSS750 and use the switch for selecting measurement signals. The PSS750 simplies phase switching, selecting type of fault, phase reversing and gives a possibility to create a variable phase shift.

Specications CSU20A
Specications are valid at nominal input voltage and an ambient temperature of +25C, (77F). Specications are subject to change without notice. Operating temperature -20C to +50C (-4F to +122F) Mains voltage 115 / 230 V AC, 50 / 60 Hz Thermal protection Built-in Dimensions 280 x 178 x 246 mm (11 x 7 x 9.7) Weight 5.9 kg (13 lbs) excl. transport case Current measurements Current shunt 0.1 A / 1 V, 2%

Specications PSS750
Specications are valid at nominal input voltage and an ambient temperature of +25C, (77F). Specications are subject to change without notice. Max input voltage Max input current Max resistor loading Dimensions Weight 250 V AC / 3 A 6 A / 250 V AC 200 V AC / 200 mA (0.5 A during 5 seconds) 200 x 120 x 85 mm (7.9 x 4.7 x 3.3) 1.3 kg (2.9 lbs)

Output, AC
20 A setting Idle/non-load 5A 10 A 20 A 10 A setting Idle/non-load 3A 5A 10 A Output voltage (min) 26 V 25 V 22 V 18 V Output voltage (min) 52 V 50 V 47 V 41 V Load time Continuous Continuous Continuous 2 min Load time Continuous Continuous Continuous 10 min

Output, DC
DC current As above, less the voltage drop over the rectifying diodes

CSU20A
9

PSS750

S VERKER 750 /76 0

S VERKER 750 /76 0

Application example
IMPORTANT! Read the Users manual before using the instrument
1. Connect the current and voltage outputs of SVERKER 750/760 to the PSS750 inputs. 2. Connect the current and voltage inputs of the relay to the PSS750 outputs. 3. Select which phase to test and type of test (phase-to-ground or phase-phase) with the selector switch. 4. Proceed with the test for each phase and fault type. 5. To create a phase shift, connect the 10 F capacitor in SVERKER 750/760 in series between the voltage output and the PSS750 input, and connect the variable resistor in parallel with the PSS750 input. 6. Set the SVERKER 750/760 for phase (and impedance) measurement. Connect the voltage measurement input to the PSS750 input. 7. Start the test with the resistor in maximum position. Gradually decreasing the resistor gives increasing phase shift in the voltage signal. The test voltage/impedance will decrease at the same time so an adjustment of the test current might be necessary to get the correct impedance. Please observe that the phase shift depends on the input resistance and may vary between different relays. Some relays may also have a low voltage limit where the relay will not operate. For additional 180 degrees phase shift use the phase reversal switch.

SVERKER Win
PC software for SVERKER 750/760
The SVERKER Win software makes eldwork easier while providing neater reports. The SVERKER Win software enables you to control the SVERKER from a PC. The SVERKER is connected to the PCs serial port. Test results can be reported either directly with table and graph, or from an external program, e.g. Microsoft EXCEL. SVERKER Win enables customised reports in an easy way. Very useful are the reference graphs, together with the current/voltage graph presentation for each test point during the test. The graph can of course be printed out on the test report if you like. A new feature is the ready-made current curves available for many relay types. During relay testing, each measured value is stored in a log list. In this list you can add comments to each test point. When the entire test is nished, you can save everything as a data le. Later, you can print out the test results. You save time by not having to write your report in the eld. All report writing can be done conveniently back at the ofce. The SVERKER Win software provides easy access to connection instructions, test instructions and the like, which you prepare in advance. These instructions, which can contain both text and graphics, can be prepared using standard word processing packages. The settings you make on SVERKER are also saved in a le, so that the next time you want to test the same or similar protective relay equipment, all you have to do in order to set-up the SVERKER, is to open the le.

Specications SVERKER Win

The SVERKER Win software comprises a 32-bit program written to run under Windows 95/98/2000/NT/XP. We recommend a Pentium computer with at least 16 MB of RAM. The amount of space needed to save reports and settings will depend on how many protective systems that are to be tested. Roughly estimated, you will thus need a total of about 20-100 MB of free space on the hard disk. Languages in SVERKER Win are: Czech, English, French, German, Spanish and Swedish.

SVERKER Win
10

Specications SVERKER 750 / 760

Specications are valid at nominal input voltage and an ambient temperature of +25C, (77F). Specications are subject to change without notice.

Measurement section Timer

Time can be displayed in seconds or in mains-frequency cycles. Range Resolution Inaccuracy 000-9.999 s 1 ms (1 ms + 0.01%)* 10.00-99.99 s 10 ms (10 ms + 0.01 %)* 100.0-999.9 s 100 ms (100 ms + 0.01 %)* * For the OFF+TIME start condition in INT mode, 1 ms shall be added to the above measurement error. Range Resolution 0.0-999.9 cycles 0.1 cycles 1000-49999 1 cycle cycles at 50 Hz 1000-59999 cycles at 60 Hz Inaccuracy (0.1 cycles + 0.01%) (1 cycle + 0.01 %)

Environment
Application eld The instrument is intended for use in high-voltage substations and industrial environments. 0C to +50C (32F to +122F) -40C to +70C (-40F to +158F) 5% 95% RH, non-condensing Low Voltage Directive 73/23/ EEC am. by 93/68/EEC EMC Directive 89/336/EEC am. by 91/263/EEC, 92/31/EEC and 93/68/EEC 115 / 230 V AC, 50 / 60 Hz 1380 W Thermal cut-outs, automatic overload protection 350 x 270 x 220 mm (13.8 x 10.6 x 8.7) 610 x 350 x 275 mm (24.0 x 13.8 x 10.8) 17.3 kg (38.1 lbs) 26.3 kg (58 lbs) with accessories and transport case 17.9 kg (39.5 lbs) 26.9 kg (59.3 lbs) with accessories and transport case 2 x 0.25 m (0.8 ft), 2.5 mm2 2 x 0.5 m (1.6 ft), 2.5 mm2 8 x 2.0 m (6.6 ft), 2.5 mm2 2 x 3.0 m (9.8 ft), 10 mm2 LCD English, French, German, Spanish and Swedish

Temperature Operating Storage & transport Humidity

CE-marking
LVD EMC

Ammeter
Measurement method AC, true RMS DC, mean value 0.00 250.0 A 0.000 6.000 A

General
Mains voltage Power consumption (max) Protection Dimensions Instrument Transport case Weight SVERKER 750

Ranges
Internal External

Inaccuracy
Internal range 1) 0 10 A AC 0 40 A AC 0 100 A AC External range 1) 0 0.6 A AC 0 6 A AC 0 0.6 A DC 0 6 A DC (1% + 20 mA) (1% + 40 mA) (1% + 200 mA) (1% + 20 mA) (1% + 20 mA) (0.5% + 2 mA) (0.5% + 20 mA) 10 mA (range <100 A) 100 mA (range >100 A) 1 mA AC, true RMS DC, mean value 0.00 600.0 V AC, (1% + 200 mV) Max. value DC, (0.5% + 200 mV) Max. value Values are range depending

Resolution
Internal range External range

SVERKER 760

Test lead set, with 4 mm stackable safety plugs Test leads with spadetonge connectors Display Available languages

Voltmeter
Measurement method Range Inaccuracy 1)

11

S VERKER 750 /76 0

S VERKER 750 /76 0

Extra measurements
Power factor and phase angle measurements
Range Power factor cos -0.99 (cap) to +0.99 (ind) Phase angle () 000 359 AC DC Range Resolution 0.01 1 Inaccuracy 0.04 2

Outputs Current outputs AC

Range No-load voltage (min) 90 V 25 V 10 V 10 V Full-load voltage (min) 75 V 20 V 8V Full-load voltage (min) 250 V AC 250 V DC Full-load current (max) 10 A 40 A 100 A 250 A Full-load current (max) 3A 2A Load / unload times On (max) / Off (min) 2 / 15 minutes 1 / 15 minutes 1 / 15 minutes 1 sec/ 5 minutes Load / unload times On (max) / Off (min) 10 min / 45 min 10 min / 45 min

Impedance and power measurements

Z ( and ), Z (), R and X ( and ), P (W), S (VA), Q (VAR) R (), P (W) Up to 999 kX (X= unit) 1A 250 V AC or 120 V DC

0 10 A 0 40 A 0 100 A 0 100 A Range

Voltage outputs AC / DC
No-load voltage (min) 0 250 V AC 290 V AC 0 300 V DC 320 V DC

Make / Break contact

Max. current Max. voltage

Reclosing test
Items measured Display Tripping and reclosing times After test is nished a list of all times appears in display Breaker state feedback The Make / Break contact can be used to feed back the breaker state Max. number of reclos- 49 ings Max. testing time 999 s

Separate AC voltage source

SVERKER 750
Range 0 60 V AC No-load voltage (min) 70 V Full-load voltage (min) 60 V 120 V Full-load current (max) 0.25 A 0.25 A

60 120 V AC 130 V

Both ranges are divided into voltage steps of 10 V that are steplessly variable.

Sets of resistors and a capacitor

Resistors Capacitor 1) 0.5 to 2.5 k 10 F, max voltage 450 V AC
2) SVERKER 750

SVERKER 760
Range 0 130 V AC No-load voltage (min) 140 V Full-load voltage (min) 130 V Inaccuracy 2 Max. current 300 mA 400 mA 235 mA 400 mA Full-load current (max) 0.25 A cont. 0.35 A, 1 minute

1) Measurement intervals longer than 100 ms.

Phase angle Resolution 0 359 1

Auxiliary DC output
Range 20 130 V DC 130 220 DC Voltage 20 V DC 130 V DC 130 V DC 220 V DC

12

Ordering information
SVERKER 750
Complete with: Test lead set GA-00030 Transport case GD-00182 115 V Mains voltage 230 V Mains voltage

Art.No.

CD-11190 CD-12390

SVERKER 760
Complete with: Test lead set GA-00030 Transport case GD-00182 115 V Mains voltage 230 V Mains voltage

CD-21190 CD-22390

Optional accessories
SVERKER Win PC Software Please specify the SVERKER serial number when ordering. SVERKER Win contains software, a copy-protection key and a cable used to connect the PC to SVERKER. Note that the software key can be installed on a single SVERKER. The software itself, however, can be installed on an unlimited number of PCs. CD-8102X SVERKER Win Upgrade CD-8101X PROM* update, done by GE Energy CD-89010 PROM* update, done by customer
* SVERKER Win requires PROM-version R04A or higher

CD-89011

CSU20A Complete with cables and transport case 115 V Mains voltage CSU20A Complete with cables and transport case 230 V Mains voltage PSS750

BF-41190

BF-42390 CD-90020

Test lead set

13

S VERKER 750 /76 0

S VERKER 650

SVERKER 650

Relay Testing Unit

The Sverker 650 testing unit, whose design incorporates benets gleaned from many years of experience in eld relay testing, enjoys a well-earned reputation for reliability and convenience. Compact and powerful, it provides all of the functions needed for secondary testing of almost all types of single-phase protection now available on the market. SVERKER 650 features logical design and construction, and it is extraordinarily easy to learn and use. Its compact design and light weight makes it extremely portable. Auxiliary equipment for SVERKER 650 includes a test lead set and a rugged transport case. Another useful accessory is the ACA120 voltage source which makes it easier to test directional relays.

14

Application example
IMPORTANT! Read the Users manual before using the instrument.
1. 2. 3. 4. 5. Set the desired auxiliary voltage using SVERKER 650. Connect the current and time measurement circuits. Increase the current until tripping occurs. Decrease the current until reset occurs (for the I> function). Increase the current to 1.2-1.5 times the I> function value (1.1-1.2 times the I> function value). 6. Zero-set the timer and power down SVERKER 650. 7. Power up SVERKER 650 (in the timing mode) and make a note of the function times. 8. Repeat steps 3 and 5-7 above but for the I>> function.
Auxiliary voltage

Auxiliary voltage

15

S VERKER 650

S VERKER 650

Specications SVERKER 650

Specications are valid at nominal input voltage and an ambient temperature of +25C, (77F). Specications are subject to change without notice.

Outputs Current outputs, AC

Range 0 10 A 0 40 A 0 100 A No-load voltage (min) 85 V 25 V 10 V Output voltage (min) 75 V (10 A) 19 V (40 A) 7.7 V (100 A) Load / unload times On (max) / Off (min) 2 min / 30 min 20 s / 15 min 20 s / 5 min

Environment
Application eld The instrument is intended for use in high-voltage substations and industrial environments. 0C to +50C (32F to +122F) -40C to 70C (-40F to +158F) 5% 95% RH, non-condensing Low Voltage Directive 73/23/ EEC am. by 93/68/EEC EMC Directive 89/336/EEC am. by 91/263/EEC, 92/31/EEC and 93/68/EEC 115 / 230 V AC, 50 / 60 Hz 1100 VA Thermal cut-outs, miniature circuit breakers

Temperature Operating Storage & transport Humidity

Voltage outputs, AC / DC
Range 0 250 V AC 110 V AC (xed) 0 350 V DC 20 220 V DC (stab.) Output voltage (min) 220 V (2.7 A) 110 V (0.3 A) 280 V (2 A) 200 V (0.25 A)

CE-marking
LVD EMC

Other
Built-in capacitor provides phase shift when testing directional protection, and a set of resistors can be used to divide voltages. Output used to start external cycles. Terminal for external start / stop of built-in timer. Terminal for connecting serial impedance when testing nonlinear protection.

General
Mains voltage Power consumption (max) Protection Dimensions Instrument

280 x 178 x 250 mm (11 x 7 x 9.8) Transport case 560 x 260 x 360 mm (22 x 10.2 x 14.2) Weight 16 kg (35.3 lbs) 26 kg (57.3 lbs) with accessories and transport case. Test lead set, with 2 x 0.25 m (0.8 ft), 2.5 mm2 4 mm stackable safety 2 x 0.5 m (1.6 ft), 2.5 mm2 plugs 8 x 2.0 m (6.6 ft), 2.5 mm2 Test leads with spade- 2 x 3.0 m (9.8 ft), 10 mm2 tonge connectors

Measurement section Current measurement

Built-in ammeter
Ranges Inaccuracy 0 10 A / 0 100 A 3% Connected to built-in current transformer 0.5% 0 999.999 s 1 ms 0.02% of displayed value, +2 ms Independent of mains frequency

External ammeter
Output for external ammeter Inaccuracy

Timer
Range Resolution Inaccuracy

16

Optional accessories
ACA120 - Variable voltage source
The ACA120 voltage source provides a variable output voltage of 0 to 120 V AC. This makes it easier to test directional protection using SVERKER 650. Power is supplied from the relay testing unit's 110 V AC output. Housed in a small plastic case. Maximum output current is 90 mA. Dimensions: 80 x 150 x 65 mm (3.1" x 5.9" x 2.6") Weight: 0.6 kg (1.3 lbs)

Ordering information
SVERKER 650
Complete with: Test lead set GA-00030 Transport case GD-00010 115 V Mains voltage 230 V Mains voltage

Art.No.

BA-11190 BA-12290 BA-90040

Optional accessories
ACA120

Test lead set

17

ACA120

S VERKER 650

FRE JA 30 0

FREJA 300

Relay Testing System

The Freja 300 relay testing system is a computer-aided relay testing and simulation system. The weight of FREJA 300 is only 15 kg. The rugged hardware design is built for eld use over a wide temperature range, with the possibilities of intelligent software to perform rapid testing. FREJA 300 can be operated with or without a PC. After being put into the Local mode, FREJA 300 can be used stand-alone without a PC. Using the Local mode is easy. The function of each key is described on the display, which also presents the settings and measured values. The very accurate (typically 0.01%) low level analogue inputs are designed for transducer measurements. The high level inputs can be used as a normal volt- and ammeter. FREJA 300 can generate 4x150 V (82 VA) and 3x15 A (87 VA) or 1x45 A (250 VA), or with the optional external amplier CA3, six currents. Each output can be varied independently. Both static and dynamic testing can be performed, such as prefault and fault generation, simultaneous ramping of several quantities and wave form editing. FREJA 300 can also be used as a disturbance simulator and create and generate simulated disturbances, or import actual recorded disturbances from e.g. EMTP or COMTRADE les (and edit the wave forms), by using the FREJA SIM Disturbance Simulator Software. With the built-in DC source you can supply the relay protection.

18

Application
Relay Testing
FREJA 300 is intended primarily for secondary testing of protective relay equipment. Virtually all types of protection relays can be tested.

Operation
Local Mode - without PC
Using the dial by turning and clicking it is easy to make the settings. All settings are saved automatically when you exit, but if you prefer you can assign the settings a name and save them separately for convenient access when you conduct your next test. The display can also show the measured value that is being generated. This feature is equivalent to three voltmeters and three ammeters that present RMS values for all generators.

Examples of what FREJA 300 can test

Distance protection equipment Synchronising or synchronism-check relays Undervoltage relays Directional Power relays Undercurrent or underpower relays Negative sequence overcurrent relays Overcurrent-/ ground fault relays Inverse time overcurrent-/ ground fault relays Power factor relays Overvoltage relays Voltage or current balance relays Directional overcurrent relays DC overcurrent relays Phase-angle measuring or out-of-step protective relays Automatic reclosing devices Frequency relays Differential protective relays Directional voltage relays Voltage and power directional relays

IEEE No.
21 25 27 32 37 46 50 51 55 59 60 67 76 78 79 81 87 91 92

With a PC - FREJA WIn

FREJA Win Control center
There are a number of instrument programs. You start the different programs at the Control center, where you also save and recall results. Since the test set-ups/results are saved via a regular Microsoft Explorer display, you can create your own test object structures.

General
The all-round General instrument program serves as a convenient, easy to understand, user-friendly toolbox. On the Connect page, you can enter information about how to connect the relay, including pictures if so desired. On the Sequence page, you can vary all generator parameters independently. You can have up to 25 different states (prefault, fault1, fault2, fault3 etc.). This is useful when testing autoreclose relays or motor protection. On the Ramp page, you can ramp all generator parameters independently. Amplitudes and angles are shown on a vector diagram, and values can be set with a dial, keyboard or mouse. Its also possible to generate up to the 25th harmonic.

Control center

Local Mode General

Local Mode Rx (I)

19

General Instrument

FRE JA 30 0

FRE JA 30 0

Distance
The Distance instrument program is designed to test distance relays. On the Conguration page, you enter the number of zones that are to be tested and also the time and impedance tolerances, thereby creating an automatic test. No programming is needed. Later, when you recall this object via the Control center, all settings are reestablished so that you can start testing immediately. On the Connect page you enter information about how to make connections to the relay, including pictures if so desired. Since this information is saved together with the object in the Control center, it can be displayed again the next time you want to test this relay. The Zt page is designed for time testing of a distance relay. Normally, you test one type of fault at a time when testing relays. With FREJA Win, however, you can test all seven fault types automatically if so desired. All you have to do is press the <Start> button. FREJA will test all seven fault types automatically and then compare the readings with the theoretical values that you entered on the Conguration page. If the readings are OK, a green lamp lights. If not, a red lamp lights. If you want to check the reverse direction, the test can start below zero ohms in the 3rd quadrant. The RX-ramp page, which is part of the Distance instrument program, is designed to test the reach of a distance relay. First, you dene the start and stop angles and the delta phi between the ramps. Then press the <Start> button and relax. FREJA will automatically test all seven types of faults using the timesaving search-half method. You can also dene your own ramps, using the mouse to specify starting and ending points wherever desired. If you have dened a theoretical reference graph, the program will compare the actual test result with your graph and check for any deviations from the tolerances entered on the Conguration page. If the results are OK, a green lamp lights. If not, a red lamp lights. The RX page enables you to dene test points manually. You can dene different points on the oscilloscope using the mouse or keyboard. Select the automatic mode and press the <Start> button. FREJA will test all points for the selected fault types. The points will be assigned different colors, depending on the trip time. If you select the manual mode, you can use the dial to search for a boundary. The RX point page, a new feature in FREJA Win 5.2, speeds up the reach tests.

Distance, Cong

Distance, Connect

Distance, Zt

Distance, RX
20

Distance, RX ramp

Reference graphs
Efcient testing and performance analysis require well-dened reference values. FREJA can automatically create the IEC and IEEE standard curves for overcurrent relays. It is also possible to create reference graphs in the impedance plane using the included library of distance relays made by major manufacturers and/or create other characteristics using the standard circular lens and linear elements (including mho, quadrilateral and ice-cream cone shapes). The cut and paste buttons make it easy to take copies of the rst zone and then edit these copies by inserting zone 2 and zone 3 values. State-of-the-art distance relays having sophisticated impedance characteristics and several setting groups require many parameter settings. The optional ProGraph feature enables you to import the parameter settings from a master selectivity plan prepared in Microsoft Excel. This eliminates manual transfer errors, and the FREJA software creates the reference graph automatically. Some relay manufacturers can create a RIO-le with the settings of the relay. Using the FREJA RIO-converter you can create reference graphs based on these settings. A new feature is the ready-made current curves available for many relay types.

Sync
The U-f Min & Max part of the Sync instrument program is designed especially to test voltage and frequency boundaries for a synchronizing relay. This test is carried out automatically. Simply press the <Start> button, whereupon the program itself searches for the boundaries. The Synchronizing page is designed to measure lead-time. It also enables you to measure the pulses sent out from the synchronizing relay. The Synchro Check page is designed to test synchrocheck relays. First set the phase angle to +20 (or some other starting point). Then change the phase angle until you reach the boundary. You press the <Save> button to store the result. Now test on the other side, starting at -20, change the phase angle until you reach the other boundary.

Sync, U-f Min & Max

Edit a reference graph

Sync, Synchronizing

Prograph
21

Sync, Synchro Check

FRE JA 30 0

FRE JA 30 0

Binary inputs. Binary outputs (normally-closed and normally-open). Display and buttons used in the Local Mode. Dial, press to Enter. Multiconnector for voltage (L1U, L2U, L3U, NU) and current (L1I, L2I, L3I, NI). Current and voltage outputs.

Switch, PC to Freja 300 or relay. DC-supply, connect to (11) to read the values (in General mode page 5/6 on the display). Analog inputs, LOW, for measurement transducers. Fuse (50 mA) at the bottom, for Analog inputs LOW (9). Analog inputs, HIGH, for volt- and ammeter.

Remote control
22

Test lead set

Optional accessories
Remote control
Remote control with cable, 3 m (10 ft), for the dial.

Transient instrument (SW)

The Transient instrument is used to generate transient waveforms from a disturbance recorder.

Test lead set

With touch-proof contacts. 2 x 0.25 m (0.8 ft), 2.5 mm2, 2 x 0.5 m (1.6 ft), 2.5 mm2, 8 x 2 m (6.5 ft), 2.5 mm2. Normally two sets of this type is needed. Weight: 0.8 kg (1.8 lbs)

Transducer instrument (SW)

Transducers are used to measure e.g. current, voltage, power, phase angle or frequency. The output from the transducer is then either a DC voltage or a DC current. Standard ranges are 0-10 V or 4-20 mA, and in some cases also 0-1 mA. The transducers input signals are connected to FREJAs voltage and/or current generators. The transducers output signal is connected to the Low Analog input. The accuracy of the measurement is very high. You can test all different types of transducers in a fully automatic way. Just press START, and the program will test the transducer and present the full scale, absolute, and relative error. In the report you get both graphs, and a table of the result.

FREJA 300 Multi-cable

Shortens hookup time considerably. Consists of a multi-pole connector that connects to FREJA 300's three voltage and three current outputs, and a number of banana plugs that connect to the protective relay equipment that is to be tested.

Current amplier CA3

Three-phase current amplier. For higher output power and current. See section "CA3/CA1" for more information.

Auto 21 instrument (SW)

The AUTO21 converts FREJA RTS 11, 21, 21D and FREJA 300 DOS testplans to FREJA 300 Windows. This will make it possible to run and printout in a Windows environment.

Current amplier CA1

Single-phase current amplier. For higher output power and current. See section "CA3/CA1" for more information.

GPS100
The GPS100 makes it possible to synchronize two or more FREJA 300s to conduct end-to-end testing. End-to-end testing provides quick, reliable results showing how two or more protective relay systems interact. The GPS100 includes a power pack, an antenna with 20metre cable and a carrying case.

FREJA Win ProGraph

Automatic reference graph program. Contact GE Energy for more information.

Soft transport case for FREJA 300/CA3

Dimensions: 470 x 440 x 190 mm (18.5" x 17.3" x 7.5") Weight: 1.8 kg (4 lbs)

Multi cable
23

GPS100

FRE JA 30 0

FRE JA 30 0

Specications FREJA 300

Specications are valid for resistive load, nominal voltage supply and ambient temperature +25C 3C, (77F 5.4F) after 30 minutes warm up time. All hardware data are for full scale values. Specications are subject to change without notice.

AC / DC voltage measuring input, HIGH 1)

Measuring range Inaccuracy Inaccuracy Voltage AC / DC Current AC / DC 220 V DC, 150 V ACRMS DC <0.05%, AC <0.2%

Measurement, internally generated values

<1% 1digit <2% 2digit 2 x 4 (NO & NC) Zero-potential contacts, controlled via software 240 V AC, max 8 A, max load 2000 VA 275 V DC, max 8 A, max load 240 W

Environment
Application eld Temperature Operating Storage & transport Humidity For use in high-voltage substations and industrial environments. 0C a +50C (32F a +122F) -40C a +70C (-40F a +158F) 5% 95% RH, non-condensing Low Voltage Directive 73/23/ EEC am. by 93/68/EEC EMC Directive 89/336/EEC am. by 91/263/EEC, 92/31/EEC and 93/68/EEC 90 264 V AC, 47 63 Hz 600 VA typical (1200 VA max.) 450 x 160 x 410 mm (17.7 x 6.3 x 16.1) 560 x 240 x 575 mm (22 x 9.5 x 22.6) 15 kg (33.1 lbs) 7.5 kg (16.5 lbs) LCD English, French, German, Spanish, Swedish

Binary outputs
Number Type Break capacity AC Break capacity DC Setting range LLU LLI Max. output current Inaccuracy Resolution Distortion (THD+N) 2) Max. generating time

CE-marking
LVD EMC

Low level outputs (ROGOW)

3 X 0...2 VRMS 3 X 0...2 VRMS 5 mA <0.1% typ. (<0.2% guaranteed) 250 V <0.05% typ. (<0.1% guaranteed) 5 minutes

General
Mains input (nominal) Power consumption Dimensions Instrument Transport case Weight Instrument Transport case Display Available languages

Generator section Voltage outputs

Range 4-phase AC 1-phase AC (L-L) DC (L-N) Power 3-phase AC 1-phase AC (L-L) DC (L-N) Resolution SW HW Inaccuracy 3) (guaranteed) Distortion (THD+N) 2) 4 x 150 V 2 x 300 V 180 V 3 x 82 VA at 150 V 1 x 140 VA at 300 V 87 W 10 mV 6.5 mV (0.01% of range) + (0.05% of reading) 0.02% typical (0.04% max)

Measurement section Binary inputs

Number Type Internal resolution time Galvanic isolation 10 Inputs (2 groups of 5 independent) Dry or wet contacts 275 V DC, 240 V AC 50 s Galvanically separated from the amplier section. Two galvanically separated groups: 1 to 5 and 6 to 10 15264 h (636 days) Resolution 0.1 ms 1 ms 1s 20 mA SW 0.1 A HW 0.6 A 0.01% typical, 0.03% guaranteed (= 6 A) 10 V SW 0.1 mV HW 0.3 mV 0.01% typical, 0.03% guaranteed (= 3 mV)

Current outputs 4)
Range 3-phase AC 1-phase AC 5) DC (L-N) Power 3-phase AC 1-phase AC 5) DC (L-N) Resolution SW HW Inaccuracy 3) (guaranteed) Distortion (THD+N) 2) 3 x 15 A 1 x 45 A 15 A 3 x 87 VA 1 x 250 VA 3 x 87 W (max) 1 mA 0.65 mA (0.01% of range) + (0.3% of reading) 0.1% typical (0.2% max)

Max measuring time Range 0 - 9.9 ms 10 ms - 60 min 1 h - 15264 h Measuring range Resolution Inaccuracy

DC current measuring input, LOW

DC voltage measuring input, LOW

Measuring range Resolution Inaccuracy

AC / DC current measuring input, HIGH 1)

Measuring range Inaccuracy 14 A DC, 10 A ACRMS DC <0.1%, AC <0.3%

24

Ordering information
FREJA 300
Complete with: FREJA Win Standard Freja 300 PC software key Two test lead sets Calibration box Hard transport case Same as above but with soft transport case

Art.No.

CF-19091 CF-19090 CF-19000

FREJA 300 Basic Unit

Incl. calibration box

FREJA 300, LLA (Rogowski option)

Generators, general
Frequency range Continuous signals DC 2000 Hz Transient signals DC 3.5 kHz Frequency resolution 1 mHz Frequency inaccuracy 0.01% Phase angle range 0 360 Phase resolution 0.1 Phase inaccuracy 3) 0.1 Connection (Amplier 4 mm stackable safety plugs or 8-pin outputs) amplier multiconnector All seven generators are continuously and independently adjustable in amplitude and phase. No switching of range is necessary. All current and voltage outputs are fully overload- and short-circuit-proof and protected against external high voltage transient signals and overtemperature. Note! To allow continuous generation of high DC current (12 - 15 A), a minimum load impedance of 0.2 Ohm is required. For lower load impedances, e.g. short-circuit, the time is limited to 1 minute. Complete with: FREJA Win Standard Freja 300 PC software key Two test lead sets Calibration box Hard transport case Same as above but with soft transport case

CF-19095 CF-19094 CF-19004 CF-8203X CF-8282X CF-8214X CF-8215X CF-8221X

FREJA 300 Basic Unit, LLA

Incl. calibration box

Optional accessories
FREJA Win Standard, with software key Upgrade FREJA Win Standard Transient instrument (SW) Transducer instrument (SW) Auto 21 instrument (SW) FREJA Win ProGraph Automatic reference graph program. Contact GE Energy for more information. Current amplier CA3 Current amplier CA1 GPS100 Remote control FREJA 300 Multi-cable Test lead set Soft transport case for FREJA 300/CA3

CA-19090 CB-19090 CF-90050 CF-90010 GA-00103 GA-00032 GD-00215

DC auxiliary voltage output

Range Output power 20 210 V DC 75 W at 210 V

Other
On-line measurement of the current and voltage output, presented on the built-in display. Calibration check when the temperature is changed. Full calibration can be conducted a any time using the FREJA calibration box. This means you do not need to send away FREJA for calibration. Only the calibration box needs to be sent for calibration once per year. Connection to IBM compatible PC (minimum Pentium II 266 MHz, 32 Mb RAM, Win 95/98/2000, NT 4.0) via the serial port. The FREJA has a built-in switch that enables you to switch communication back and forth between the PC and your relay.
1) 50 or 60 Hz AC + harmonics only. 2) THD+N: Values at 50/60 Hz, at max amplitude, 50% power and resistive load. Measurement bandwidth 22 Hz 22 kHz. 3) For sinusoidal signals at 50/60 Hz. 4) For higher current or output power you can use amplier CA3. 5) Parallel connection.

Calibration box
25

FRE JA 30 0

C A 3/C A1

CA3/CA1

Current Ampliers
Higher voltages are often needed to provide test currents for older electro-mechanical relays. The three-phase switched current amplier designated CA3 solves this problem. It can provide 3 x 30 A or 1 x 60 A connected in parallel. Maximum output power is 600 VA (3 x 25 A at 8 V). If higher voltage is needed, you can make the connection between two phases (L-L). If a higher voltage is needed than the CA3 can provide, or if you want to use a single-phase current amplier, you should choose the CA1. If you need even higher current, two or more current ampliers can be connected in parallel, thus bringing the output current up to 180 A. The current ampliers can also be used in situations where more current generators are needed than the three built into FREJA. Since the ampliers can be controlled by both current and voltage, they can be connected to FREJA's voltage generators. The number of current generators can thus be increased to six, which is convenient when testing differential relays.

26

Specications CA3/CA1
Specications are valid at nominal input voltage and an ambient temperature of +25C, (77F). Specications are subject to change without notice. Application eld The instrument is intended for use in high-voltage substations and industrial environments. 0C to +50C (32F to +122F) 0C to +45C (32F to +113F) -40C to +70C (-40F to +158F) 5% 95% RH, non-condensing Low Voltage Directive 73/23/ EEC am. by 93/68/EEC EMC Directive 89/336/EEC am. by 91/263/EEC, 92/31/EEC and 93/68/EEC Current (A) Output voltage (V)

Environment

Temperature, operating CA3 CA1 Temperature storage & transport Humidity

CE-marking
LVD EMC

General
Mains voltage CA3 105 264 V AC, 47 63 Hz CA1 115 / 230 V AC (switchable), 50 / 60 Hz Power consumption (max) CA3 1200 VA CA1 1800 VA Dimensions Instrument CA3 450 x 132 x 410 mm (17.7 x 5.2 x 16.1) CA1 500 x 300 x 245 mm (19.6 x 11.8 x 9.6) Dimensions Transport case CA3 570 x 240 x 560 mm (22.4 x 9.4 x 22.0) CA1 710 x 410 x 300 mm (28.0 x 16.1 x 11.8) Weight CA3 11 kg (24 lbs) CA1 20 kg (44 lbs)

Current outputs CA3

Setting range 3-phase AC 1-phase AC 3-channel DC 1-channel DC Power 3-phase AC 600 VA, 3 x 200 VA (8 V at 25 A) 1-phase AC (L-L) 1 x 480 VA at 30 A (16 V) 1-phase AC Time limits Continuous 10 s Phase inaccuracy Distortion Inaccuracy 1 x 400 VA at 50 A (8 V) (generators in parallel) 0-7A >7A 0.4 0.2 at 50 Hz 0.5 0.2 at 60 Hz 1% max, 0.1% typical (0.4% of actual value + 0.1% of range) 560 VA, 9.3 V at 60 A 0 - 20 A 20 - 60 A 0.3 2% max, 0.5% typical (1% of actual value + 0.2% of range)
27

CA1
1 x 0 60 A 1 x 60 A

3 x 0 30 A (symmetrical phases) 1 x 0 60 A (generators in parallel) 3 x 20 A

Ordering information
CA3
CA3 including hard transport case GD-00210

Art.No.
CA-19090 CB-19090

CA1
CA1 including hard transport case GD-00170

Optional accessories
Soft transport case for CA3 GD-00215

C A 3/C A1

PAM36 0

PAM360

Phase Angle Meter

The PAM 360 phase angle meter is designed to test for example directional protection relays and to conduct directional tests on instrument transformers. Since precise accuracy and versatility were given top priority by designers of the compact and handy PAM360, its capabilities are equal to those of its heavier and more expensive competitors. Thanks to ne resolution and high accuracy, the PAM360 is also ideal for testing sensitive distance protection. It has a broad range and can sense either current or voltage. Moreover, the PAM360's inputs are galvanically separated from each other and from the mains. Its many outstanding features make the PAM360 a highly versatile instrument, and it is priced competitively. The PAM360 is delivered complete with test lead set in a handy transport case.

28

Application example
IMPORTANT! Read the Users manual before using the instrument. Directional test of relay protection
1. Connect PAM360 inputs U1 and I2 to the testing unit (SVERKER for example) and the relay protection. 2. Select U1 and I2 on the toggle switches. 3. Use the testing unit to trip the protective relay equipment. 4. Check that the relay trips within the specied angle range by reading the angle shown on the PAM360's display.

Specications PAM360
Specications are valid at nominal input voltage and an ambient temperature of +25C, (77F). Specications are subject to change without notice.

Environment
Application eld The instrument is intended for use in high-voltage substations and industrial environments. 0C to +50C (32F to +122F) -40C to 70C (-40F to +158F) 5% 95% RH, non-condensing Low Voltage Directive 73/23/ EEC am. by 93/68/EEC EMC Directive 89/336/EEC am. by 91/263/EEC, 92/31/EEC and 93/68/EEC 115 / 230 V AC, 50 / 60 Hz 3W

Temperature Operating Storage & transport Humidity

CE-marking
LVD Testing unit EMC

General
Mains voltage Power consumption (max) Dimensions Instrument Relay protection Transport case Weight

Test lead set, with 4 mm stackable safety plugs Display

180 x 180 x 70 mm (7.1 x 7.1 x 2.8) 350 x 280 x 90 mm (13.7 x 11 x 3.5) 2.1 kg (4.6 lbs) 3.1 kg (6.8 lbs) with accessories and transport case. 4 x 2 m (6.6 ft), 2.5 mm2

LCD, 4 digits, 12.7 mm (0.5) high 0 359.9 Current-current, voltage-voltage and current-voltage Sinusoidal 15 75 Hz 0.1 0.5 (if 20% or more of range is used) 1 (if less than 20% of range is used)

Measurement section
Range Type of phase angle measurement Wave form Frequency range Resolution Inaccuracy (sinusoidal voltage)

Inputs Current inputs

Range 0.002 10 A. Range can be increased by means of a clamp-on current transformer. 0.2 500 V

Voltage inputs
Range

Ordering information
PAM360
Complete with: Test lead set GA-00082 Transport case 50-00100

Art.No.
BP-19090

29

PAM36 0

MAGNUS

MAGNUS

Step-Up Transformer
When power systems are put into operation or when faults occur, it becomes necessary to check the instrument transformers to make sure that they are providing test instruments and protective relay equipment with the correct outputs. MAGNUS permits you to prepare excitation curves for instrument transformers quickly and easily. MAGNUS is also used to demagnetize current transformer cores and to conduct turn-ratio tests on voltage transformers. Even though it weighs only 16 kg (35 lbs), it provides 1 A at 2.2 kV. Two-hand control enhances personal safety. As standard, MAGNUS is delivered with a special high-voltage cable and a robust transport case.

30

Application example
IMPORTANT! Read the Users manual before using the instrument. Prepare an excitation curve
1. Connect MAGNUS to the secondary side of the current transformer being tested and also to an ammeter and voltmeter. 2. Increase the voltage with the dial. 3. Jot down the values of U (voltage) and I (current). 4. Repeat steps 2 and 3 until the current (I) rises sharply without any signicant rise in voltage (U). 5. Conclude the test by reducing U (voltage) slowly to zero, thereby providing demagnetization.

Measuring outputs
Voltage Inaccuracy Current Inaccuracy 100 / 1, (max load of 1 M) 1,5% 10 / 1 1,5% at 2 A output current 3% at 0,5 A output current

Outputs Voltage outputs, AC (CAT I)

230 V mains voltage
(I) High voltage 0 2200 V AC output 1) (II) Variable transform- 0 250 V AC er, not isolated from mains 1) Voltage 2200 V AC 250 V AC Current 1A 6A Max. load time 30 s 2) Continuous Rest time 10 minutes 2)

115 V mains voltage

0 2000 V AC (I) High voltage output 1) (II) Variable transform- 0 110 V AC er, not isolated from mains 1) Voltage 2000 V AC 110 V AC Current 1A 10 A Max. load time 30 s 2) Continuous Rest time 10 minutes 2)

1) The outputs I and II must not be loaded at the same time. 2) The load time and rest time for the high voltage output is calculated at the maximum output voltage and current. During an excitation test the voltage and current is only at their maximum level at the end of the test.

Specications MAGNUS
Specications are valid at nominal input voltage and an ambient temperature of +25C, (77F). Specications are subject to change without notice.

Ordering information
Magnus Art.No.
Complete with: Cable set GA-00090 Transport case GD-00182 115 V Mains voltage 230 V Mains voltage

Environment
Application eld The instrument is intended for use in high-voltage substations and industrial environments. 0C to +50C (32F to +122F) -40C to +70C (-40F to +158F) 5% 95% RH, non-condensing Low Voltage Directive 73/23/ EEC am. by 93/68/EEC EMC Directive 89/336/EEC am. by 91/263/EEC, 92/31/EEC and 93/68/EEC 115 / 230 V AC, 50 / 60 Hz 2300 VA Thermal cut-outs 356 x 203 x 241 mm (14 x 8 x 9.5) 610 x 290 x 360 mm (24 x 11,4 x 14,2) 16.3 kg (35,9 lbs) 26.7 kg (58.9 lbs) with accessories and transport case 2 x 5 m (16.4 ft) / 1,5 mm2, 15 kV
31

Temperature Operating Storage & transport Humidity

BT-11190 BT-12390

CE-marking
LVD EMC

General
Mains voltage Power consumption (max) Protection Dimensions Instrument Transport case Weight

High voltage cables

Cable set GA-00090

MAGNUS

TE S TING CIRCUIT BRE AKERS

Testing circuit breakers

High voltage circuit breakers are extremely important for the function of modern electric power supply systems. The breaker is the active link that ultimately has the role of quickly opening the primary circuit when a fault has occurred. Many times, the breaker has to perform its duty within a few milliseconds, after months, perhaps years of idly standing by. Since RCM and condition based maintenance have become the established strategies for most owners and operators of electric power supply systems, the need for reliable and accurate eld test instruments is obvious. Ever since its introduction in 1984 of the rst microprocessor based breaker analyzer on the world market, GE Energy has taken the lead in portable test instruments for high voltage circuit breakers. Over the years, many new user requirements have lead GE Energy to innovate new solutions to provide test engineers in the eld with effective tools for determining the status of circuit breakers. you can ascertain that a breaker is in good condition, you can continue to use it rather than replace it. Here too, however, effective diagnostic methods are of prime importance.

Circuit Breaker Testing

Before a new circuit breaker is delivered, it is tested at the factory. After it has been installed, it is submitted to a commissioning test before being taken into service. Thereafter, it is inspected and tested on different occasions. Usually, a circuit breaker has to be taken out of service in order to test it. The following parameters are often tested on a circuit breaker: closing time, opening time, resistance of the main contacts and synchronization of contact operation. Contact travel and speed are also tested (as recommended in the IEC 62271-100 and IEEE C37.09 standard and other literature). Some other methods for circuit breaker diagnostics are dynamic resistance and vibration testing. Moreover, checks are made to see that the solenoids and latches operate properly. This is done by measuring the lowest breaker operating voltage and checking the shape of the coil current curve. Measured values are compared with limit values specied by the manufacturer or values that have been arrived at by the maintenance organization through experience. In many cases, a ngerprint consisting of different measurements taken when a breaker is new is compiled. This ngerprint can then be used as a reference for subsequent measurements. Any change that is found clearly indicates a change in the breakers condition.

Different maintenance strategies

If a maintenance strategy that is strictly corrective is adopted, no attempts are made to deal with a developing circuit breaker fault before it becomes fatal. This does not, however, ensure the reliable supply of electric power that consumers are entitled to expect. Short-term savings in maintenance costs will soon be eaten up by the cost of the damage and the cost of correcting a fault. Preventive maintenance - which includes inspection, testing, overhauls and modications - is a strategy that is encountered more frequently. In time interval-based maintenance, a number of specic measures are taken at predetermined times, regardless of the conditions under which a circuit breaker operates. If this method is applied too strictly, however, it may lead to needless intervention. Disassembling a circuit breaker that has no faults entails needless expense, and it does not improve reliability. Condition-based maintenance is being used more and more. Here, you ascertain the condition of a circuit breaker through testing and inspection. The results, supplemented with statistical data and cumulative experience, are then used to plan maintenance for the circuit breaker in question. The breakers need for maintenance is based less on time than on the conditions to which it is exposed, how frequently it operates and its environment. Condition-based maintenance provides excellent opportunities to improve reliability and cut costs, but it requires effective diagnostic methods. Many circuit breakers provide longer service lives than expected. If
33

TM18 0 0

TM1800

Circuit Breaker Analyzer System

The TM1800 is a recently developed instrument platform for circuit breaker maintenance, based on 20 years experience of over 4,000 delivered breaker analyzers. The modular construction makes it possible to congure the TM1800 for measurements on all known types of breaker in operation on the world market. The robust design contains powerful new technology that streamlines circuit breaker testing. Sophisticated measurement modules enable great time savings as many parameters can be measured simultaneously, eliminating the need for new setup each time. A new type of timing channel with high analog resolution can not only measure contact timing, but also provide resistance values for series resistance and main contacts. A highly capable, easy-to-use piece of software supports everything from timing using a simple knob without the need for presettings, to advanced help functions for hooking up to the test object. The system also offers full connection capability to the local network, printers etc

34

Application
Timing Measurements
Simultaneous measurements within a single phase are important in situations where a number of contacts are connected in series. Here, the breaker becomes a voltage divider when it opens a circuit. If the time differences are too great, the voltage becomes too high across one contact, and the tolerance for most types of breakers is less than 2 ms. The time tolerance for simultaneous measurements between phases is greater for a 3-phase power transmission system running at 50 Hz since there is always 6.67 ms between zero-crossovers. Still, the time tolerance is usually specied as less than 2 ms, even for such systems. It should also be noted that breakers that perform synchronized breaking must meet more stringent requirements in both of the previously stated situations. There are no generalized time limits for the time relationships between main and auxiliary contacts, but it is still important to understand and check their operation. The purpose of an auxiliary contact is to close and open a circuit. Such a circuit might enable a closing coil when a breaker is about to perform a closing operation and then open the circuit immediately after the operation starts, thereby preventing coil burnout. The a contact must close well in advance of the closing of the main contact. The b contact must open when the operating mechanism has released its stored energy in order to close the breaker. The breaker manufacturer will be able to provide detailed information about this cycle.

Coil Currents
These can be measured on a routine basis to detect potential mechanical and/or electrical problems in actuating coils well in advance of their emergence as actual faults. The coils maximum current (if current is permitted to reach its highest value) is a direct function of the coils resistance and actuating voltage. This test indicates whether or not a winding has been short-circuited. When you apply a voltage across a coil, the current curve rst shows a straight transition whose rate of rise depends on the coils electrical characteristic and the supply voltage (points 1-2). When the coil armature (which actuates the latch on the operating mechanisms energy package) starts to move, the electrical relationship changes and the coil current drops (points 3-5). When the armature hits its mechanical end position, the coil current rises to the current proportional to the coil voltage (points 5-8). The auxiliary contact then opens the circuit and the coil current drops to zero with a current decay caused by the inductance in the circuit (points 8-9). The peak value of the rst, lower current peak is related to the fully saturated coil current (max current), and this relationship gives an indication of the spread to the lowest tripping voltage. If the coil was to reach its maximum current before the armature and latch start to move, the breaker would not be tripped. It is important to note, however, that the relationship between the two current peaks varies, particularly with temperature. This also applies to the lowest tripping voltage.

Motion Measurements
A high-voltage breaker is designed to interrupt a specic short-circuit current, and this requires operation at a given speed in order to build up an adequate cooling stream of air, oil or gas (depending on the type of breaker). This stream cools the electric arc sufciently to interrupt the current at the next zero-crossover. It is important to interrupt the current in such a way that the arc will not re-strike before the breaker contact has entered the so-called damping zone. Speed is calculated between two points on the motion curve. The upper point is dened as a distance in length, degrees or percentage of movement from a) the breakers closed position, or b) the contactclosure or contact-separation point. The time that elapses between these two points ranges from 10 to 20 ms, which corresponds to 1-2 zero-crossovers. The distance throughout which the breakers electric arc must be extinguished is usually called the arcing zone. From the motion curve, a velocity or acceleration curve can be calculated in order to reveal even marginal changes that may have taken place in the breaker mechanics. Damping is an important parameter for the high energy operating mechanisms used to open and close a circuit breaker. If the damping device does not function satisfactorily, the powerful mechanical strains that develop can shorten breaker service life and/or cause serious damage. The damping of opening operations is usually measured as a second speed, but it can also be based on the time that elapses between two points just above the breakers open position.

Dynamic Resistance Measurement (DRM)

The main contact resistance during operation is obtained by DRM. DRM is mainly used for determination of arcing contacts shortening.

Closed position Contact closure

Position

Stroke

Arcing zone

Speed calculation points Open position

Damping zone

1 Trip coil energized 2-3 Armature travel 3-4 Armature operates trip latch 4-5 Armature completes its travel

5 Armature hits stop 6 Change in coil inductance 7 Proportional to DC coil resistance 8 Auxiliary contact opens 9 Current decay

Time

Motion Curve
35

Example of coil current on circuit breaker

TM18 0 0

TM18 0 0

Modular design

Basic Unit
TM1800 has a modular design that makes it very exible to user needs. You can congure the Basic Unit to a complete test set with the types of modules you need, for a specic test as-well as for general needs. The modularised design enables any user to upgrade or recongure the hardware for improved/new functionality. All inputs and outputs on the TM1800 and the modules are designed to withstand the harsh environment in high-voltage substations and industrial environments. With built-in protection circuits and software-designed protection the TM1800 has a good guard to inuences and even failures caused by over-voltages generated in the environment. On the top panel of the basic unit are the following inputs and outputs: 8 user congurable slots for modules Mains input Trig inputs and outputs Outputs for warning signal Earth (Ground) Connection Communication interfaces (USB, Ethernet, RS232, LTP and VGA)

Control Module
Generates the selected circuit breaker sequences accurate and bounce-less when the TM1800 is operated. The Control Module can be congured to operate any close and trip coil to perform the programmed sequence and measure important parameters during the sequence like current, voltage, resistance and auxiliary contact timing. Two control modules can be used to control the breaker and measure coil current, control voltage, coil resistance and auxiliary contact timing for each phase on one phase operated circuit breakers. Three independent contact functions per module Pre-programmed sequences C, O, C-O, OC, O-C-O All sequence settings are user congurable in CABA Local (internal software) Timing of a and b auxiliary contacts

Timing M/R Module

Introduces the new generation of timing measurements with an analog design that enables a more accurate and faster testing of circuit breaker parameters. The Timing M/ R module uses one hook-up for testing all the important timing parameters of an interrupter without the need of reconnections or special set-ups. One Timing M/R module will measure up to six interrupters including linear PIR contacts timing and present the result individually for each contact. The Timing M/R also measures the voltage drop when DRM is performed without need of time consuming and hazardous reconnections since the same test leads are used for both timing and voltage measurement. Six channels per module Main contact timing Parallel resistor contact timing Resistance value of parallel resistors

36

Analog Module
The Analog module measures any analog entity from a transducer mounted on a circuit breaker. It enables measurements of motion, speed, current, voltage, pressure, vibration etc. With the exible and easy to use interface it makes motion measurement of a circuit breaker like a walk in the park. Three channels per module 10 V and 24 V output Input range 4-20mA Supports industrial analog transducers

Printer Module
The Printer module offers a convenient and practical way of making printouts of test results directly from the TM1800. The printouts contain both numerical and graphical results and printer templates delivered pre-installed in the TM1800 are easy to adapt to suit specic needs for a clear and complete report of all tested parameters. Printouts can also be made on any external printer via the parallel (LPT) or the USB of TM1800. Thermal printer sensitive line dot method Paper width 114 mm (4") Printing speed 50 mm/s (400 dot lines/s)

Digital Module
With the Digital module motion measurement with the TM1800 system becomes even more accurate and the set-up even easier. It enables the use of incremental rotary or linear transducers, for measuring motion, velocity of circuit breakers and the damping characteristics on drive mechanisms Six channels per module Incremental transducers with resolution up to 32000 pulses Built in power supply with 5 V or 12 V DC

PC-card Module
Storage of recorded data is done in the PCcard module that is delivered with every TM1800 system. This module is easily removed during transport or storage of the TM1800 to minimize the risk of data getting lost. The PC-card module comes with two standard PCMCIA slots that can be used for memory cards, w-lan etc. As an option the standard mechanical hard disk can be replaced with a ash disk that withstand higher environmental requirements when used in rougher environments or often transported. This module is always tted into slot 10. Two type I/II/III PCMCIA slots 20 GB storage capacity on built-in hard drive Optional: Flash disk (ordered separately)

Timing Aux Module

Expands the TM1800 system with timing inputs for measuring any auxiliary contact on the circuit breaker. It measures timing, polarity insensitive, of both dry and wet contacts for example timing of spring charging motor, anti-pump relay etc. Six timing inputs Polarity insensitive Dry and wet auxiliary contacts

37

TM18 0 0

TM18 0 0

Application examples
IMPORTANT! Read the Users manual before using the instrument. Circuit Breaker System with Common Operating Mechanism
TM1800 Set-up for one main contact and common operating mechanism The drawing shows an analog measurement but it can also be done with a digital module and incremental transducers. The settings in the TM1800 system are easy to manage using the internal software (CABA Local). It offers easy access via function keys and the built-in keyboard. It comes with a track ball and large, bright screen that works as well in direct sunlight. Minimum conguration of modules for this application is: 1 Control module 1 Timing M/R module 1 Analog module

Circuit Breaker System with Separate Operating Mechanism

TM1800 Set-up for two main contacts and one operating mechanism per pole. Below set-up shows complete wiring for pole A. The timing hook-up for remaining pole B and C is done accordingly to pole A. Two control modules (six outputs) are needed to control each coil (Y1/Y2) for every pole. The set-up below shows the wiring of pole A. This also automatically tests timing on the auxiliary contacts that are connected in series to the coils. Motion measurement can be added with an analog or digital module. Minimum conguration of modules for this application is: 2 Control modules 1 Timing M/R module

Y1 = close coil, Y2 = trip coil 1, Y3 = trip coil 2

Y1 = close coil, Y2 = trip coil 1, Y3 = trip coil 2

38

Specications TM1800
General
Specications are valid after 30 minutes warm up time. System time base drift 0.001% per year. Specications are subject to change without notice.

External outputs General

No. of channels 3, (TRIG OUT, DRM, WARNING) Electronic 1 999 ms, user congurable in steps of 1 ms 0.1 ms 12 V DC 5% 9 V DC 10% 1.5 A

TRIG OUT
Switch Pulse duration Inaccuracy

Environment
Application eld Temperature Operating For use in high-voltage substations and industrial environments.

Voltage mode
Open circuit voltage Voltage at 0.5 A Max. short circuit current

0C to +50C (32F to +122F) -20C to +50C (-4F to +122F), with ash disk Storage & transport -55C to +70C (-67F to +158F) 5% 95% RH, non-condensing EMC Directive 89/336/EEC am. by 91/263/EEC, 92/31/EEC and 93/68/EEC Low Voltage Directive 73/23/ EEC am. by 93/68/EEC

Contact mode
Max. switching currrent Voltage drop at 0.5 A Max. short circuit current 0.5 A at 12 V and resistive load 4.5 V DC 10% 1.5 A

Humidity

CE-marking
EMC LVD

DRM
Switch Relay 12 V DC 5% 11 V DC 10% 1.5 A

Basic unit
General
Mains input (nominal) Power consumption (max) Dimensions Weight 100 240 V AC, 50 / 60 Hz 250 VA 515 x 173 x 452 mm (20.3 x 6.8 x 17.8) 15.5 kg (34.2 lbs)

Voltage mode
Open circuit voltage Voltage at 0.5 A Max short circuit current

WARNING
Switch Relay Pre-operation warning 0 999 s, user congurable in steps of 1 s

External input Trig in

Time inaccuracy 0.1 ms 0 250 V AC / DC User congurable in software in steps of 1 V 35 V DC 20% 10 40 mA 1 2 k

Voltage mode
Output Voltage 12 V DC 10% Short circuit protection Fuse 1 A DC fast acting type (F1H250V)

Voltage mode
Input range Threshold level

Contact mode
Max. switching currrent Range Resolution 1 A at 12 V and resistive load

Contact mode
Open circuit voltage Short circuit current Threshold level

External temperature sensor (optional accessory)

-20C to +50C (-4F to +122F) 0.5C (0.9F)

When on site doing the hook-up, you can get help on how to connect by pressing the i-button.

39

TM18 0 0

TM18 0 0

Communication interfaces
PC-card USB Ethernet Printer port Serial port External screen Type I/II/III PCMCIA cards, 5 V supply Universal Serial Bus ver. 1.1 100 base-Tx Fast Ethernet LTP, Multi-mode parallel (ECP/EPP/SPP) 25-pin D-sub female RS232, 9-pin D-Sub male SVGA, up to 800 x 600 at 24 bit color, 32 MB SDRAM Windows XP Embedded Circuit breaker analyzing software English, German Transreecting to increase visibility in direct sunlight 21 cm (8) 800 x 600 (W x H) 256k colour 350 cd/m2 Built-in trackball and mouse buttons

Timing M/R module General

No. of channels Time base inaccuracy Min. resolution Max. sample rate Measurement time 6, (2 voltage ranges per channel when used in voltage mode) 0.01% of reading 1 sample interval 0.05 ms 40 kHz 16 s at 20 kHz sample rate, 32 s at 10 kHz sample rate, 200 s at 10 kHz sample rate using data compression Data compression is available at sample rates up to 20 kHz 0.8 kg (1.8 lbs) 6 V or 26 V 10% (Toggling at every second sample at sample rates from 10 kHz and upwards.) 9.7 mA or 42 mA 10% Closed < 10 < Open Main < 10 <PIR < 10 k < Open Linear PIR 10 10 k 10% of reading 0.1% of range 50 Vpeak, 15 Vpeak, 0.5 Vpeak 2 mV, 0.5 mV, 20 V (4 mV, 1 mV, 40 V at data compression) 1% of reading 0.1% of range

HMI, Human-Machine interface

Operating system CABA Local Available languages Display Diagonal size No. of pixels Display mode Luminance Keyboard

Weight Open circuit voltage

Timing of main and resistive contacts

Modules
Control module General
No. of channels Time base inaccuracy Min. resolution Max. sample rate Measurement time 3 0.01% of reading 1 sample interval 0.1 ms 10 kHz 19 s at 10 kHz sample rate, 39 s at 5 kHz sample rate, 200 s at 10 kHz sample rate using data compression 1.0 kg (2.2 lbs) 15 A AC / DC

Short cicuit current Status threshold Main Main and Resistor Supported PIR types Measurement range Inaccuracy

PIR resistance measurement

Voltage measurement
Measurement ranges Resolution Inaccuracy

Weight

Analog module General

No. of channels Time base inaccuracy Min. resolution Max. sample rate Measurement time 3 0.01% of reading 1 sample interval 0.025 ms 40 kHz 10 s at 40 kHz sample rate, 20 s at 20 kHz sample rate, 200 s at 10 kHz sample rate using data compression 500 10 k at 10 V output 0.8 kg (1.8 lbs) 10 V DC 5%, 24 V DC 5% 20 30 mA 0 20 mA DC 0.35 A (0.7 A at data compression) 1% of reading 0.1% of range 0 250 V AC / DC 10 V DC, 0 250 V AC / DC 0.3 mV, 13 mV (0.6 mV, 26 mV at data compression) 1% of reading 0.1% of range 0.1% of reading 0.01% of range

Non-bouncing switch
Max. continuous current Max current 60 A AC / DC during 100 ms with intermittence of 5% Short circuit protection 15 A DC Duration 1 ms 1000 s, user congurable in steps of 1 s Delay 0 999 s, user congurable in steps of 1 s

Transducer resistance Weight

Current measurement
Measurement range Resolution Inaccuracy 0 60 A AC / DC 3 mA (6 mA at data compression) 2% of reading 0.1% of range 0 250 V AC / DC 20 mV (40 mV at data compression) 1% of reading 0.1% of range 25 35 V DC 10 40 mA Open > 10 k > closed 0 10 k 100 m at 100 , 5 at 10 k 2% of reading 0.2% of range

Output
Voltage output Max. output current

Current measurement
Measurement range Resolution Inaccuracy

Voltage measurement
Measurement range Resolution Inaccuracy Open circuit voltage Short circuit current Status threshold Resistance range Resolution Inaccuracy

Voltage measurement
Input voltage range Measurement ranges Resolution Inaccuracy 250 V range 10 V range

Auxiliary contact status/resistance

40

Digital module General

No. of channels Supported types Time base inaccuracy Min. resolution Max. sample rate Measurement time 6 Incremental transducers, RS422 0.01% of reading 1 sample interval 0.05 ms 20 kHz 16 s at 20 kHz sample rate, 32 s at 10 kHz sample rate, 200 s at 10 kHz sample rate using data compression 0.7 kg (1.5 lbs) 5 V DC 5% or 12 V DC 5% 200 mA 32000 pulses 1 pulse 1 pulse

Ordering information
TM1800
Complete with: CABA Local Transport case USB Memory TM1800, Basic Unit TM1800, Basic Unit, with Flashdisk

Art. No.

CG-19090 CG-19091

Modules
Control Module Including 3 cable sets, 5 m (16 ft), GA-00877 Timing M/R Module Including 3 cable sets, 5 m (16 ft) total length, 1.5 m (4.9 ft) spread, GA-00850 Analog Module Including 3 cable sets, 10 m (33 ft), GA-01005 Digital Module Timing Aux Module Including 3 cable sets, 5 m (16 ft), GA-00870 Printer Module Including paper spool, GC-00040 CG-19030

Weight

Output
Voltage Max. output current

CG-19080 CG-19000 CG-19040 CG-19060 CG-19050

Digital input
Range Resolution Inaccuracy

Timing Aux module General

No. of channels Time base inaccuracy Min. resolution Max. sample rate Measurement time 6 0.01% of reading 1 sample interval 0.05 ms 20 kHz 15 s at 20 kHz sample rate, 30 s at 10 kHz sample rate, 200 s at 10 kHz sample rate using data compression 0.8 kg (1.8 lbs) 0 250 V AC / DC 10 V 0.5 V 25 35 V 10 30 mA Closed < 100 , Open > 2 k

Optional accessories
See section Circuit breaker testing accessories

Weight

Voltage Mode
Input voltage range Status threshold Inaccuracy

Contact mode
Open circuit voltage Short circuit current Status threshold

Printer module General

Printer type Paper type Printing speed Horizontal resolution Vertical resolution Storage and transport temperature Weight Thermal printer Thermal 114 mm 50 mm/s (400 dotlines/s) 8 dots/mm 8 dots/mm -20C to +60C (-4F to +140F) 0.8 kg (1.8 lbs)

41

TM18 0 0

EGIL

EGIL

Circuit Breaker Analyzer

EGIL, which incorporates benets gained from experience with our larger TM1600/MA61 instrument, is intended primarily for testing distribution and smaller transmission breakers. Smaller and simpler, EGIL is equally versatile and EGIL's price makes it attractive to small power plants. Moreover, it provides an ideal supplementary instrument for maintenance departments at large power companies. EGIL is designed to test circuit breakers having only one main contact per phase. Its three time channels are connected together on one side. Events at parallel contacts equipped with pre-insertion resistors are recorded and displayed simultaneously. There are two separate time channels for measurement of auxiliary contacts. To simplify on-site hookup, EGIL comes with ready-made multi-cable sets for both main and auxiliary contacts. Coil currents are measured automatically and presented together with other readings immediately after testing on the display window or via the built-in printer. EGIL is easy to use a built-in sequencer (program unit) sets the instrument automatically for the next sequential breaker operation. Intended primarily for measuring travel (motion), the optional analog input channel nds many other uses as well. If this channel is not installed, all associated menu commands are hidden. EGIL can also be equipped with an optional serial interface (RS-232C) for communication with a personal computer (PC) and the CABA Win Circuit Breaker Analysis Software.

42

Application
Space for your report data EGIL is intended primarily for testing high-voltage circuit breakers at medium-level voltages. There must not, however, be more than one breakpoint per phase since the time channels are not galvanically isolated. Contact times are recorded for main contacts, pre-insertion resistor contacts and auxiliary contacts. Coil currents are also recorded. Besides the actual measurement values several parameters according to IEC standards are calculated and shown in the report, e.g. closing and opening time, difference between phases, over-travel, CO and OC time (and others).

Space for your comments Parameters you have selected for breaker operation

Application example
IMPORTANT! Read the Users manual before using the instrument.
1. Ground EGIL using the included ground cable. Make certain that the circuit breaker is closed and grounded on both sides. 2. Connect the main contact cable set to EGIL and the breaker. 3. Connect the auxiliary contact cable set to the a- and b-contacts on the operating mechanism. 4. Connect the EGIL sequencer to the close- and trip-coils and to the auxiliary voltage. 5. Remove the breakers ground connection on one side. 6. You are now ready to proceed with the test. Simply turn the MEASURE rotary switch and read the results.

Parameters you have selected for travel (motion) measurement

Filtering you have selected for time results Tabular printout of time measurements at main contacts Tabular printout of time measurements at auxiliary contacts

Tabular printout of travel (motion) calculations

Graphical printout

Auxiliary contact, close circuit Main contacts

Auxiliary contact, trip circuit

Example of report printed out on the built-in printer. Close-Open operation. Time, coil currents and travel (motion) were measured. (Travel measurement is optional.) The above example is 55% of actual size.
43

EGIL

EGIL

Specications EGIL
Specications are valid at nominal input voltage and an ambient temperature of +25C, (77F). Specications are subject to change without notice.

Current measurement
Range Resolution Inaccuracy Working voltage 25 A per channel, sum of currents is measured 25 mA 1% of the reading 100 mA 250 V AC / DC C, O, C-O, O-C, O-C-O 5A 25 A during 300 ms, rest time 1 min Two independent control functions Non bouncing, Closing time maximum 0.1 ms 25 A, 250 V (AC or DC) per contact function By rotary switch Adjustable in steps of 10 ms Adjustable in steps of 10 ms 250 V AC / DC 1 independent 10 m (33 ft) -4 V to +4 V 2 mV 1% of the measurement range 1 k to 5 k 150 k 4,092 V 4 mV 115 mA V24, RS232C 8 bits, 1 stop bit, no parity 1200 - 19200 baud Xon/Xoff Graphic and numeric Thermal printer with xed print head 8 dots/mm 203 dpi 114 mm (4.5)

Environment
Application eld The instrument is intended for use in medium-voltage substations and industrial environments up to 130 kV. 0C to +50C (32F to +122F) -40C to +70C (-40F to +158F) 5% 95% RH, non-condensing Low Voltage Directive 73/23/ EEC am. by 93/68/EEC EMC Directive 89/336/EEC am. by 91/263/EEC, 92/31/EEC and 93/68/EEC 115 / 230 V AC (switchable), 50 / 60 Hz 100 VA

Breaker operation
Sequences Continuous current Max current Contact function Contact characteristics Make/Break capacity Start breaker operation Pulse length Pulse delay Working voltage

Temperature Operating Storage & transport Humidity

CE-marking
LVD EMC

General
Mains voltage Power consumption (max) Dimensions Instrument Transport case Weight Display Available languages

Motion (optional)
Number of channels Max cable length

360 x 210 x 190 mm (14.2 x 8.3 x 7.5) 420 x 300 x 230 mm (16.5 x 11.8 x 9.0). 6.3 kg (14 lbs). 10 kg (22 lbs) with accessories and transport case LCD English, German, French, Spanish, Swedish

Input
Range Resolution Inaccuracy Transducer resistance Input impedance

Output
Open circuit voltage Short circuit current Type Format Speed Flow control

Measurement section Time measurement

Measurement time Resolution Number of channels Time base inaccuracy Status thresholds Closed Resistor Open Open circuit voltage Short circuit current 1 to 100 s 0.1 to 10 ms 3 with common ground 0.05% of the reading resolution < 10 20% 10 20% to 3 k 20% > 3 k 20% 24 V 20% 100 mA 20% 2, galvanically isolated

Serial interface for PC (optional)

Printout
Type of printout Printer Graphic resolution Paper width

AUX 1&2
Number of channels

Contact-sensing (Dry)
Status thresholds Closed Open Open circuit voltage Short circuit current < 600 30% > 600 30% 20 V 20% DC 25 mA 20%

Voltage sensing (Wet)

Status thresholds Open indication, <8V polarity insensitive Close indication, > 13 V polarity insensitive Working voltage 250 V AC / DC

Multicable sets GA-00160 and GA-00170 and cable set GA-00082.

44

 Sequencer for coil signals permits delays to be introduced for coil impulses that differ relative to each other. Mains voltage changeover switch, 115/230 V AC. Built-in printer features autoscaling, 114 mm (4,5) wide paper can be changed quickly and easily. Galvanically isolated sockets ensure safe, reliable disconnection of operating coil cables before working in or on the breaker. Three timing channels. Both main contacts and pre-insertion resistor contacts can be timed on the same channel. Results are presented both graphically and numerically. Two galvanically isolated timing channels. Can be used for timing of dry or wet auxiliary contacts. Optional analog input channel is intended for measuring travel (motion) or any other analog voltage. Optional serial (RS-232C) interface for a computer (PC). Supports communication with the CABA breaker analysis software.

Breakerstate indicator. Egil measures the state (open or closed) of the breaker, whereupon the sequencer sets the instrument automatically for the next sequential operation. Switch used to set the breaker to the desired state without activating the measurement channels. Fast-select buttons for frequently used functions such as selecting a sequence of operations (C, O, C-O, O-C or O-C-O) and printing results.

AUX 1 & 2 buttons used for time channels that measure timing of auxiliary contacts. Contactsensing or voltage-sensing can be selected. Switch used to start a preset sequence of breaker operations for which measurements are conducted simultaneously.

Ordering information
EGIL
Basic unit Complete with: Time measurement cables GA-00160, GA-00170 Cable set for sequencer GA-00082 Transport case GD-00190 Egil with analog input channel and serial PC interface Complete with: Time measurement cables GA-00160, GA-00170 Cable set for sequencer GA-00082 Transducer cable XLR-open, 1 m (3.2 ft) GA-00041 Transducer cable XLR-XLR, 7.5 m (24.6 ft) GA-00042 Serial cable RS-232C Transport case GD-00190

Art.No.

BM-19090

BM-19093

Optional accessories
Transducer cables GA-00041 and GA-00042.
45

See section Circuit breaker testing accessories

EGIL

Built-in coil current measurement. Readings are presented on autoscaled graphs.

Menu-driven procedures automatically invoke default settings to eliminate timeconsuming presetting. All menu lines associated with uninstalled optional equipment are hidden to enhance simplicity. For the basic egil unit you simply connect the multicable sets and turn the MEASURE knob.

Designed and tested to meet the CE emission, immunity and electrical safety standards.

C ABA WIN

CABA Win

Circuit Breaker Analysis Software

Effective circuit breaker maintenance requires comprehensive, accurate testing. The ability to accurately compare circuit breaker tests with previous test results is essential. It must thus be possible to conduct tests in exactly the same way and under the same conditions as those conducted earlier. Comparison can then provide a clear picture of any deviations and changes, thereby indicating whether or not the circuit breaker should be kept in operation or taken out of service. Comprehensive, accurate testing also requires analytical tools and efcient reporting. It must be possible to validate test results in detail and then easily compare them with other test results. The Programma Computer-aided Breaker Analysis (CABA Win) program has earned an enviable reputation in this eld. Test results from earlier versions of CABA are upwards compatible to CABA Win. CABA Win can be used with Programma breaker analyzers TM1800, TM1600/MA61 and EGIL. CABA Win organizes all the test tasks and ensures that measurements are conducted in the same way for each object being tested. CABA Win saves the results and generates the report. In the analysis section, the user can work with a number of graphic windows, compare different measurements by overlaying one graph on another in the same display, and use cursors and powerful zoom functions for detailed analysis. CABA Win simplies testing and ensures the quality of the test procedure.

46

Display additional tests Zoom Motion trace Coil current trace Time measurements Design/change analysis window, test curves, colors, scales and positioning Compare with other tests Cursors for detailed analysis Cursor values Calculated parameters for the actual operation

Operation
Test plans
CABA can be used for all breaker testing applications, ranging from simple time measurement to dynamic resistance and vibration measurements. A circuit breaker is dened before it is tested the rst time. All of the entered data is kept together. This enables CABA Win to step the user through the test procedure in exactly the same way each time the breaker is tested. This results in efciency gains throughout the test process, since the tests are conducted in exactly the same way regardless of who did the original testing. Accurate comparisons can be condently made from one test to the next. All of the test and circuit breaker data is saved together with the breakers unique test plan. It is also possible to enter the results of manually conducted tests, and to enter separate comments for the breaker regarding the test in question. After being organized on the basis of individual circuit breakers and individual tests, the data can be stored in a data-base. Each breaker is given a unique identity by means of four individually user-dened elds. A breaker specic test plan is automatically created, based on the specied test and breaker data. The test plan controls the individual measurements, the test points that are to be used, the transducers connected to the different measurement channels, and the parameters that are to be calculated. The test plan also species the data that is to be presented graphically and how the results are to be reported.

Transducers and conversion tables

Linear and angular travel, voltage, current, pressure and vibration transducers can be dened and calibrated with CABA Win. The calibration accuracy for a transducer is determined by the user. The calibration program automatically indicates whether or not the desired accuracy has been achieved, along with the actual calibration data. A conversion table needed to recalculate data from angular movement to linear movement can be linked to a given transducer. This makes it possible to measure contact travel of a circuit breaker in situations where a transducer cannot be connected directly to the moving contact.

Analyzing the test data

The test data is presented graphically and in table form. Multiple graphs and testresults can be displayed simultaneously. Zoom functions and cursors make it easy to conduct detailed analysis of test data. Comparisons between different tests can be viewed conveniently by overlaying them in a single window. Colors, grids, scales and the positioning of the test data are all controlled by the user.

Calculation parameters
Readings and calculated values are presented in table form. The test plan determines which parameters are to be calculated and presented. The user can delete and/or add calculable parameters, depending on the circuit breaker design, the way it is hooked up and the operations being performed. More than 200 different calculation parameters are dened in CABA Win.

Test data and breaker data

The test data and all the items of information about the circuit breaker are stored individually. The data can be copied and/or exported to other data media and formats. Test data, test plans and conversion tables from older versions of CABA can be easily transferred into CABA Win.

47

C ABA WIN

Test ID with information about the actual circuit breaker and measurement

C ABA WIN

Limits
For each parameter and operation, the user can dene pass and fail limits for each circuit breaker. If the user activates the function, CABA Win automatically compares each measured value to the actual limits and ags the values which are outside the limits.

Database
A database for storing measurements. For easy administration and backup of measurements.

Reporting
CABA Win contains a complete report generator which enables the user to design unique report forms as desired. A number of predened standard reports can be used as supplied, or they can be edited. The report form is saved together with the breaker data, and can be used in future tests. Graphs and screen displays can be copied to the clipboard and to a folder for additional processing in other Windowsapplications software.

Data communication
TM1800 Ethernet TM1600/MA61 RS232/bre-optic modem EGIL Standard RS232 CABA Win runs under Windows 98/Me/2000/NT/XP. A 400 MHz Pentium processor and 96 MB of RAM are recommended.

Test and circuit breaker data and are stored individually

48

Optional accessories
Vibration analysis software
Vibration analysis is a non-invasive method using an acceleration sensor without moving parts. The breaker can stay in service during the test. A single Open-Close operation is all that is required for the measurement. The rst operation is different compared to the second and third because of corrosion and other metal to metal contact issues. Vibration is an excellent method to capture the rst operation after long time in the same position. The analysis compares the vibration time series with earlier taken reference. In addition to the clear indication on breaker functionality more detailed information can be obtained within the analysis software. The indication is based on a DTW (Dynamic Time Warping) analysis of difference to reference data. The vibration method detects faults that can hardly be indicated with conventional methods. But if conventional data such as contact time, travel curve, coil current and voltage are available in addition to the vibration data even more precise condition assessment is possible. The vibration data is stored together with available conventional data. The Vibration method is published in CIGR and IEEE papers. Since about 10 years is it utilized in the industry for testing all kind of breakers from 400 kV distribution to industrial sites. The method was rst established on the Scandinavian market. Vibration can be performed under very safe manners for the test technician as both sides can be grounded throughout the test. Also less climbing is required since no access to the breaker contact system is needed, the acceleration sensor is easily mounted on the breaker.

Linear and angular travel, voltage, current, pressure and vibration transducers can be dened and calibrated with CABA Win.

Test plans
A number of standard test plans are delivered with CABA Win. Contact your GE Energy supplier for customer-specic test plans and conversion tables.

Multiple graphs and test results can be displayed simultaneously.

Ordering information
See section "Circuit Breaker Testing Accessories" The user can dene pass and fail limits for each circuit breaker operation.
49

C ABA WIN

MOM69 0

MOM690

Microhmmeter
Measuring resistance is an important part of maintaining high-voltage breakers and disconnecting switches. Instruments that measure the resistance of high-current contacts and other transmission elements have been included in the Programma line of products for many years. MOM690 supplements our family of microhmmeters. In addition to high current capacity, MOM690 features microprocessor-based measurement, storage and reporting. The built-in software enables you to carry out an individual test or an entire series of tests and store the results. With the optional MOMWin software you can also export the test results to a PC for further analysis and reporting. Ranges are set automatically, resistances are measured continually and test results can be automatically captured at a preset test current. What could be simpler? After testing a breaker with a CT mounted in its current circuit, e.g. dead tank and GIS breakers, some standards recommended that the CT is demagnetized. This troublesome task can be accomplished quickly and easily thanks to the MOM690's AC output. The AC output can also be used as a general multi-purpose current source in different applications.

50

Application example
IMPORTANT! Read the Users manual before using the instrument. Measuring the resistance of a breaker
1. Make certain the line is de-energized on both sides of the breaker. Ground the breaker on one side and make certain it is closed. 2. Ground the microhmmeter. 3. Make certain the microhmmeter's ON/OFF switch is OFF while making connections. 4. Connect the current cables to the DC+ and COM terminals and the sensing cables to the sensing inputs to both sides of the breaker, making sure that the polarities match properly. IMPORTANT: The sensing cables must be connected inside the current cables. Otherwise the test data will be incorrect. See Fig. 5. Switch on the MOM690. 6. Select "AUTO" or "MAN" with the <FUNC>-button. 7. Set output current to zero to start the measurement. 8. Increase the current to the desired value (600 A for example). 9. Read the resistance value.

Optional accessories
PC Software MOMWin
An optional Windows program named MOMWin is available for MOM690. It can be used to control measurement, analyse the results and report the results from a PC. It also enables you to retrieve test results stored previously in MOM690. All readings are saved in ASCII-format and can be easily exported to your favourite spreadsheet program. Results can be presented in table or diagram form in MOMWin. The program runs in Windows 95, 98, NT, 2000 or XP. Minimum requirement is a 486 computer with 8 MB of RAM. Incl. serial cable for RS-232 port.

Cable set 15 m (49 ft)

2 x 15 m (49 ft), 95 mm2 (current cables). 2 x 15 m (49 ft), 2.5 mm2 (sensing cables). Weight: 29.4 kg (64.8 lbs)

Cable extension sets

Since all current cables have bayonet connectors, standard cables can be easily prolonged with 5- or 10-metre extension sets if so desired. In situations requiring high currents and long cable lengths, heavier cable sets may be necessary however.

Measuring resistance at busbar joints

1. Make certain the line is de-energized and the test object is grounded. 2. Ground the microhmmeter. 3. Make certain the microhmmeter's ON/OFF switch is OFF while making connections. 4. Connect the microhmmeter's current cables to the test object. Do not connect the sensing cables. Measurement will be done manually using an external portable voltmeter. 5. Switch on the MOM690. 6. Select "MAN" with the <FUNC>-button. 7. Set output current to zero to start the measurement. 8. Increase the current to the desired value (100 A for example). 9. Using an external voltmeter, measure the voltage drop across each contact element within every section of the busbar being tested. The voltmeter must be set to DC. 10. Calculate the actual resistance. Example: If the voltage drop is 0.0067 V at a current of 100 A, the resistance will be 0.0067/100 , i.e. 67 .

Extension cable set No. 1

2 x 5 m (16 ft), 50 mm2 (current cables). 2 x 10 m (33 ft), 2.5 mm2 (sensing cables). Weight: 7.5 kg (16.5 lbs)

Extension cable set No. 2

2 x 10 m (33 ft), 50 mm2 (current cables). 2 x 15 m (49 ft), 2.5 mm2 (sensing cables). Weight: 15 kg (33 lbs)

Calibration shunt
An optional calibration shunt (600 A/60 mV) can be ordered for MOM690, that enables you to make certain that the instrument readings remain correct.

Transport case XL
With space for the standard 5 m cable set + extension cable set No. 1 or No. 2.

Measuring the resistance of a breaker

51

Measuring resistance at busbar joints

MOM69 0

MOM69 0

Specications MOM690
Specications are valid at nominal input voltage and an ambient temperature of +25C, (77F). Specications are subject to change without notice.

Max. load resistance / current, 230 V model

Cable set At 300 A At 600 A Standard Stadard + Stadard Ext. 1 + Ext. 1 18 m 14 m 11 m 3.0 m 570 A 480 A 2 x 15 m 95 mm 18 m 1.8 m 690 A Input current (A) 0.8 10 19 38

Environment
Application eld The instrument is intended for use in high-voltage substations and industrial environments. 0C to +50C (32F to +122F) -40C to +70C (-40F to +158F) 5% 95% RH, non-condensing Low Voltage Directive 73/23/ EEC am. by 93/68/EEC EMC Directive 89/336/EEC am. by 91/263/EEC, 92/31/EEC and 93/68/EEC 115 / 230 V AC, 50 / 60 Hz 115 V, 5980 VA (at 600 A output) 230 V, 9660 VA Miniature circuit breaker, thermal fuse, software

Max. current 750 A Current (A) 0 50 100 200 300 400 500 5751) 600 700 8002)

Output DC (CAT I), 115 V model

Voltage (V) 7.3 6.9 6.4 5.5 4.8 3.9 3.0 2.5 2.2 1.5 0.9 Max. load time 30 min. 10 min. 90 s 50 s 30 s 15 s 10 s 8s 5s

Temperature Operating Storage & transport Humidity

CE-marking
LVD EMC

52

General
Mains voltage Power consumption (max) Protection Dimensions Instrument

1) Maximum current with standard cables 2 x 5 m 50 mm 2) At 800 A and above, instant shut off Note: The above gures shows maximum load time from cold state 25C. They are not valid for repeated tests

Output AC (CAT I), 115 V model

Current (A) 0 660 Voltage (V) 8.7 3.5 Max. load time Cont. 2s Rest time 4 min.

350 x 270 x 220 mm (13.8 x 10.6 x 8.7) Transport case 610 x 290 x 360 mm (24.0 x 11.4 x 14.2) Weight, 115 V model 24 kg (52.9 lbs) 38.9 kg (85.7 lbs) with accessories and transport case Weight, 230 V model 23.7 kg (52.2 lbs) 38.6 kg (85.1 lbs) with accessories and transport case Display LCD Available languages English, French, German, Spanish, Swedish Current cables 2 x 5 m (16 ft), 50 mm Sensing cables 2 x 5 m (16 ft), 2.5 mm Optional current cable sets Ext.1 Extension 2 x 5 m, 50 mm Ext.2 Extension 2 x 10 m, 50 mm 2 x 15 m (49.2 ft) 95 mm

Note: The DC and AC outputs must not be loaded at the same time.

Output DC (CAT I), 230 V model

Current (A) 0 50 100 200 300 400 500 600 700 7501) 8002) Voltage (V ) 9.4 9.0 8.6 8.0 7.2 6.4 5.7 5.0 4.3 3.8 3.6 Max. load time 30 min. 10 min. 90 s 50 s 40 s 30 s 15 s 8s 5s Input current (A) 0.4 6

33

42

1) Maximum current with standard cables 2 x 5 m 50 mm 2) At 800 A and above, instant shut off Note: The above gures shows maximum load time from cold state 25C. They are not valid for repeated tests

Measurement section Ammeter

Range Resolution Inaccuracy 0 800 A 1A 100 800 A, 1% of reading + 1 digit 50 99 A, (2% of reading + 2 digits) 0 49 A, not specied 0 200 m, > 200 m not specied 1 100 800 A, 1% of reading + 1 digit 50 99 A, (2% of reading + 2 digits) 0 49 A, not specied

Output AC (CAT I), 230 V model

Current (A) 0 660 Voltage (V AC) 11.2 4.5 Max. load time Cont. 2s Rest time 4 min.

Resistance
Range Resolution Inaccuracy

Note: The DC and AC outputs must not be loaded at the same time.

Max. load resistance / current, 115 V model

Cable set At 300 A Standard Standard Standard 2 x 15 m 95 mm + Ext. 1 + Ext. 1 10 m 6 m 3 m 10 m 420 A 360 A 540 A

Max. current 575 A

52

 Connection for mains voltage Miniature circuit breaker for mains Switch for mains voltage Variable transformer AC current output Common output terminal DC current output Voltage measurement input Display Setting selector Function selector Interrupts current and toggles the display between resistance and voltage RS 232 Serial interface

Information about current generation or memory location. Value of the generated current. Indicates whether the current is above (<) or below (>) a preselected value. Selected test current for Auto/DC Off. Scroll using the <L>- button. Selected function. Scroll using the <FUNC>-button. Shows the measured resistance or voltage value. Toggle by pressing the < >-button.

Ordering information
MOM690
Complete with: Cable set standard GA-05055 Ground cable GA-00200 Transport case GD-00182 115 V Mains voltage 230 V Mains voltage

Art.No.

BB-41190 BB-42390

Optional accessories
PC Software MOMWin Incl. serial cable for RS-232 port Cable set 15 m (49 ft) Extension cable set No. 1 Extension cable set No. 2 Calibration shunt Transport case XL BB-8010X GA-09155 GA-05057 GA-05107 BB-90024 GD-00042 Cable set and current shunt
53

MOM69 0

Grounding terminal

MOM6 0 0A

MOM600A

Microhmmeter
Switchgear breakdowns are frequently caused by excessively high contact resistance at breakpoints and busbar joints. Moreover, overheating risks are becoming more serious due to the fact that today's distribution networks have to carry heavier loads. Checking contact resistances at regular intervals detects faults before they cause overheating. And here, an ounce of prevention is worth a pound of cure. Microhmmeters are used to measure contact resistances in high-voltage breakers, disconnecting switches (isolators), knife-contact fuses, bus joints, line joints etc. The MOM600A is in a class apart on world markets. Designed for use from the arctic to the tropics, this rugged, compact microhmmeter is ideal for eld work. A complete set of equipment includes a set of highly exible cables (including separate measurement cables) and a sturdy transport case.

54

Application example
IMPORTANT! Read the Users manual before using the instrument. Measuring the resistance of a breaker element
1. 2. 3. 4. Connect the microhmmeter to the circuit breaker. Set the current (600 A in this example). Press the resistance pushbutton. Read the result.

Optional accessories
Cable set 10 m (33 ft)
2 x 10 m (33 ft), 70 mm2 (current cables) 2 x 10 m (33 ft), 2.5 mm2 (sensing cables) Weight: 16.8 kg (37 lbs)

Cable set 15 m (49 ft)

2 x 15 m (49 ft), 95 mm2 (current cables) 2 x 15 m (49 ft), 2.5 mm2 (sensing cables) Weight: 29.4 kg (65 lbs)

Current cable Sensing cable

Calibration shunt
600 A/60 mV

Measuring the resistance of busbar joints

1. Connect the microhmmeter's current cables to the object being tested. Do not connect the sensing cables since measurements will be taken using an external movable voltmeter. 2. Set the current (100 A in this example). 3. Connect an external voltmeter to the bus. 4. Read the voltmeter (0.1 mV = 1 in this example). 5. Move the voltmeter to the next joint. 6. Repeat step 4.

55

MOM6 0 0A

MOM6 0 0A

Specications MOM600A
Specications are valid at nominal input voltage and an ambient temperature of +25C, (77F). Specications are subject to change without notice.

Output, 115 V model

Current Open circuit voltage Current shunt output 0 600 A DC 5.2 V DC 10 mV / 100 A 0.5%, max 60 mV out, max 10 V to protective earth (ground) 0 600 A DC 9 V DC 10 mV / 100 A 0.5%, max 60 mV out, max 10 V to protective earth (ground)

Environment
Application eld The instrument is intended for use in high-voltage substations and industrial environments 0C to +50C (32F to +122F) -40C to +70C (-40F to +158F) 5% 95% RH, non-condensing Low Voltage Directive 73/23/ EEC am. by 93/68/EEC EMC Directive 89/336/EEC am. by 91/263/EEC, 92/31/EEC and 93/68/EEC 115 / 230 V AC, 50 / 60 Hz 115 V, 4370 VA 230 V, 7360 VA Miniature circuit breakers, thermal cut-outs 356 x 203 x 241 mm (14 x 8 x 9,5) 610 x 290 x 360 mm (24.0 x 11.4 x 14.2) 25 kg (55.1 lbs) 43.1 kg (95 lbs) with accessories and transport case 24.7 kg (54.5 lbs), 42.8 kg (94.4 lbs) with accessories and transport case 2 x 5 m (16 ft), 50 mm 2 x 5 m (16 ft), 2.5 mm Extension 2 x 5 m, 50 mm Extension 2 x 10 m, 50 mm 95 mm LCD

Output, 230 V model

Current Open circuit voltage Current shunt output

Temperature Operating Storage & transport Humidity

Max. load capacity, 115 V model

Current adjustment set to 100% Output current 100 A DC 300 A DC 600 A DC Min. output Max. voltage load time 4.6 V 3.8 V 1.5 min. 2.6 V 10 s Rest time Input current

CE-marking
LVD EMC

General
Mains voltage Power consumption (max) Protection Dimensions Instrument Transport case Weight, 115 V model

15 min. 5 min.

8A 20 A 38 A

Max. load capacity, 230 V model

Current adjustment set to 100% Output current 100 A DC 300 A DC 600 A DC Min. output Max. voltage load time 8.3 V 7.2 V 2.5 min. 5.6 V 15 s Rest time Input current

15 min. 5 min.

6A 16 A 32 A

Weight, 230 V model Current cables Sensing cables Optional cable sets Ext.1 Ext.2 2 x 15 m (49.2 ft) Display

Measurement section
Resistance
Range Resolution Inaccuracy 0 1999 1 1% of reading + 1 digit (at 100 600 A test current)

56

Cable set GA-05053, GA-00200 and shunt BB-90020.

Ordering information
MOM600A
Complete with: Cable set GA-05053 Ground cable GA-00200 115 V Mains voltage 230 V Mains voltage

Art.No.

BB-11190 BB-12290 GA-07103 GA-09153 BB-90020

Optional accessories
Cable set 10 m Cable set 15 m Calibration shunt, 600 A/60 mV

57

MOM6 0 0A

MOM20 0A

MOM200A

Microhmmeter
Like the MOM690 and MOM600A, this model is designed to check and measure contact resistances in highvoltage circuit breakers, disconnecting switches (isolators) and busbar joints. The MOM200A is an excellent choice when 200 amperes or less are needed for measurement. Since the MOM200A weighs only about 14 kg (31 lbs), it's convenient to take along with you. MOM200A is ideal for nding poor connections since it can put out 100 A for extended periods. Its range extending up to 20 milliohms makes it ideal for measuring many different types of connections. A complete MOM200A includes a cable set (including separate sensing cables) and a transport case.

58

Application example
IMPORTANT! Read the Users manual before using the instrument. Measuring the resistance of a breaker element
1. 2. 3. 4. Connect the microhmmeter to the circuit breaker. Set the current (100 A in this example). Press the resistance pushbutton. Read the result.

Optional accessories
Cable set 10 m (33 ft)
2 x 10 m (33 ft), 35 mm2 (current cables). 2 x 10 m (33 ft), 2.5 mm2 (sensing cables) Weight: 9 kg (19.8 lbs)

Cable set 15 m (49 ft)

2 x 15 m (49 ft), 50 mm2 (current cables). 2 x 15 m (49 ft), 2.5 mm2 (sensing cables) Weight: 18.6 kg (40.9 lbs)

Current cable Sensing cable

Calibration shunt
200 A/20 mV

Measuring the resistance of busbar joints

1. Connect the microhmmeter's current cables to the object being tested. Do not connect the sensing cables since measurements will be taken using an external movable voltmeter. 2. Set the current (100 A in this example). 3. Connect an external voltmeter to the bus. 4. Read the voltmeter (0.1 mV = 1 in this example). 5. Move the voltmeter to the next joint. 6. Repeat step 4.

59

MOM20 0A

MOM20 0A

Specications MOM200A
Specications are valid at nominal input voltage and an ambient temperature of +25C, (77F). Specications are subject to change without notice.

Output
Current Open circuit voltage Current shunt output 0 200 A DC 4.7 V DC 10 mV / 100 A 0.5%, max 20 mV out, max 10 V to protective earth (ground)

Environment
Application eld The instrument is intended for use in high-voltage substations and industrial environments. 0C to +50C (32F to +122F) -40C to +70C (-40F to +158F) 5% 95% RH, non-condensing Low Voltage Directive 73/23/ EEC am. by 93/68/EEC EMC Directive 89/336/EEC am. by 91/263/EEC, 92/31/EEC and 93/68/EEC 115 / 230 V AC, 50 / 60 Hz 1610 VA Miniature circuit breakers, thermal cut-outs 280 x 178 x 246 mm (11 x 7 x 9.7) 560 x 260 x 360 mm (22 x 10.2 x 14.2) 14.6 kg (32.2 lbs) 26 kg (54.1 lbs) with accessories and transport case 2 x 5 m (16 ft), 25 mm 2 x 5 m (16 ft), 2.5 mm LCD

Max. load capacity

Current adjustment set to 100% Output current 100 A DC 200 A DC Min. output voltage 3.8 V DC 3.0 V DC Max. load time 5 min. 15 min. 20 s Rest time Input current at 115 / 230 V AC 15 min. 60 min. 5 min. 14 A / 7 A

Temperature Operating Storage & transport Humidity

CE-marking
LVD EMC

General
Mains voltage Power consumption (max) Protection Dimensions Instrument Transport case Weight

Current cables Sensing cables Display

Measurement section Resistance

Range Resolution Inaccuracy 0 1999 m 0 0-19.99 m 1 m 10 m 1% of reading + 1 digit

60

Cable set GA-02053, GA-00200 and shunt BD-90022.

Ordering information
MOM200A
Complete with: Cable set GA-02053 Ground cable GA-00200 Transport case GD-00010 115 V Mains voltage 230 V Mains voltage

Art.No.

BD-11190 BD-11190 GA-03103 GA-05153 BD-90022

Optional accessories
Cable set 10 m Cable set 15 m Calibration shunt, 200 A/20 mV

61

MOM20 0A

B10 E

B10E

Power Supply Unit

A variable DC voltage is usually needed to test a circuit breaker. Substation batteries should not be used since this entails considerable risk for testing personnel, testing equipment and also for the equipment being tested. The best way to ascertain whether or not solenoids and protective mechanisms are sluggish or set improperly is to perform a test at minimum tripping voltage. The minimum trip voltage test is described in a number of international and national standards such as IEC 62271-100, ANSI C37.09 etc. B10E can be used to test breaker coils in this manner. It provides a ripple-free variable DC voltage that can easily accomodate a high, variable load. Since there is a separate output for supplying spring-charging motors, the B10E is ideal for testing circuit breakers where auxiliary voltage is not connected (industrial-truck circuit breakers for example). The Programma compact Power Supply Unit B10E provides reliable assistance to those who do maintenance on high-voltage breakers. The control panel's intuitive layout makes it easy to operate, and the built-in thermal cutout and overload protector make it safe to use. The B10E has been developed in collaboration with breaker manufacturers and testing personnel.

62

Application example
IMPORTANT! Read the Users manual before using the instrument. Testing the minimum trip voltage of a breaker
1. Connect Power Supply Unit B10E to the breaker's opening circuit and to the spring-charging motor. 2. Set the desired test voltage using the variac. 3. Activate the trip pulse switch. 4. Repeat steps 2-3 at a higher voltage if the circuit breaker does not trip. When using the B10E, we recommend that the incoming power be protected by a 16 A wall-socket fuse. The incoming current surge occurring at certain combinations can blow the fuse if a slow-blow 10 A fuse or a quick-action 16 A fuse is used. To minimize blowing of the wall-socket fuse, the B10E Softstart is equipped with a device that reduces the peak current surges that can blow this fuse. The B10E Softstart will substantially reduce but will not fully eliminate the blowing of 10 A fuses.

Weight

20.8 kg (45.8 lbs) 29.3 kg (64.6 lbs) with accessories and transport case Test lead set, with 2 x 0.25 m (0.8 ft), 2.5 mm 4 mm stackable safety 2 x 0.5 m (1.6 ft), 2.5 mm plugs 8 x 2 m (6.6 ft), 2.5 mm Display LCD

Measurement section Voltmeter digital

Range Resolution Inaccuracy Current shunt Output voltage Load interval Ripple No-load voltage (V) 24 48 110 250 Output voltage Load current Load interval Open circuit voltage (V) 48 48 120 120 240 240 0 300 V DC, 0 300 V AC 0.1 V 1% of displayed value, DC 2.5% of displayed value, AC 5 A / 50 mV 0.5% (built-in) 24-250 V DC Max 1 s 2% peak-to-peak of the preset voltage Current (A) 10 10 6.5 3 24-250 V AC Max 5 A Max 30 min Current (A) 12 18 12 18 6 9 Load voltage (V) 40 30 90 70 200 185 Max load interval (s) 60 20 60 20 60 20 Load dependency <6% <3% <2% <2%

Outputs for trip coils, DC outputs

Outputs for trip coils, AC outputs

Outputs for spring-charging motor, DC outputs

Specications B10E
Specications are valid at nominal input voltage and an ambient temperature of +25C, (77F). Specications are subject to change without notice.

Environment
Application eld The instrument is intended for use in high-voltage substations and industrial environments.

Ordering information
B10E
Complete with: Cable set GA-00032 Transport case GD-00182

Art.No.
BG-29092

Temperature Operating 0C to +50C (32F to +122F) Storage & transport -40C to +70C (-40F to +158F) Humidity 5% 95% RH, non-condensing

CE-marking
EMC 89/336/EEC LVD EMC Directive 89/336/EEC am. by 91/263/EEC, 92/31/EEC and 93/68/EEC Low Voltage Directive 73/23/ EEC am. by 93/68/EEC 115 / 230 (135 / 250) V AC, 50 / 60 Hz 3300 W Thermal cut-outs, +80C (+176F) Short-circuit protectors at DC outputs 350 x 270 x 220 mm (13.8 x 10.6 x 8.7) 610 x 290 x 360 mm (24.0 x 11.4 x 14.2) Test lead set GA-00032.
63

General
Mains voltage Power consumption (max) Protection Dimensions Instrument Transport case

B10 E

VIDAR

VIDAR

Vacuum Tester
When a vacuum circuit breaker is commissioned or undergoes routine tests, it's very important to be able to ascertain whether or not the vacuum bottle is intact before putting it back into operation. VIDAR enables you to check the integrity of the vacuum bottle quickly and conveniently by means of the known relationship between the ashover voltage and the underpressure in the breaking chamber. A suitable test voltage is applied to the breaker, and the result is displayed immediately. VIDAR permits you to select among six test voltages from 10 to 60 kV DC. One of these voltages is customized and specied by the customer when ordering. A green lamp indicates approval of the breaking chamber. A red lamp indicates that it is defective. A two-hand control and a high-voltage warning lamp enhances safety. VIDAR has been developed in close collaboration with leading manufacturers of vacuum circuit breakers. It weighs only about 6 kg (15 lbs), and it's easy to use since breaking chambers do not have to be dismounted for testing. VIDAR is therefore ideal for use in the eld.

64

Application example
IMPORTANT! Read the Users manual before using the instrument. Testing a vacuum breaker's dielectric strength
1. Connect the two VIDAR alligator clamps to the two connectors on the breaking chamber. 2. Select a test voltage, depending on the type of breaking chamber being tested. 3. Power up VIDAR. 4. Turn the two rotary switches simultaneously. 5. If the green lamp lights up, the breaking chamber is approved.

General
Mains voltage Power consumption (max) Protection Dimensions Instrument Transport case Weight 115 / 230 V AC (switchable), 50 / 60 Hz 69 VA Overload cut-out 250 x 210 x 125 mm (9.8 x 8.3 x 4.9) 460 x 430 x 210 mm (18.0 x 17 x 8.3) 6.9 kg (15.5 lbs) 10.7 kg (23.6 lbs) with accessories and transport case

Measurement section Indicators

Green lamp Red lamp Yellow lamp Indicates an approved breaking chamber Indicates a defect breaking chamber, lights up if the current exceeds 0.3 mA Indicate that the test was interrupted 10, 14, 25, 40 and 60 kV DC Between 10 and 60 kV DC. Determined at the factory. Default voltage is 50 kV. Max 3%

Output
Standard voltages, switchable Customized voltage

Ripple

Ordering information

Specications VIDAR
Specications are valid at nominal input voltage and an ambient temperature of +25C, (77F). Specications are subject to change without notice.

VIDAR
Complete with: Permanently mounted cable set 5 m (16 ft), ground cable and transport case

Art.No.
BR-29090

Environment
Application eld The instrument is intended for use in high-voltage substations and industrial environments. Maximum permissible transient current through the external load is 12 mA. Maximum discharge time for internal high-voltage circuit is 0.3 s. 0C to +50C (32F to +122F) -40C to +70C (-40F to +158F) 5% 95% RH, non-condensing Low Voltage Directive 73/23/ EEC am. by 93/68/EEC EMC Directive 89/336/EEC am. by 91/263/EEC, 92/31/EEC and 93/68/EEC

Personal safety

Temperature Operating Storage & transport Humidity

CE-marking
LVD EMC

Permanently mounted cable set and ground cable.

65

VIDAR

CIRCUIT BRE AKER TE S TING ACCE SSORIE S

Circuit Breaker Testing Accessories

Item CABA Software
CABA Win

Description
Breaker analysis software, incl. Ethernet cross-over cable Breaker analysis software, incl. beroptics and USB interface Breaker analysis software, incl. RS232 cable

TM1800 TM1600 EGIL Art. No.

X X X X X X X X X X X X X X X X X X CG-8000X BL-8203X BL-8204X CG-8010X XB-30020 XB-30117 XB-30030 XB-30033

CABA Win upgrade

Upgrade 500 mm (20) travel Incl. cable 0.5 m (20) 225 mm (9) travel Incl. cable 0.5 m (20) 150 mm (5.9) travel Incl. cable 1.0 m (39)

Transducers Linear
TLH 500 LWG 225 TS 150 TS 25

25 mm (1) travel Incl. cable 1.0 m (39) The above transducers are also available in many other lengths, please contact GE Energy for more information.

Transducers Rotary
Analog
Novotechnic IP6501 Incl. cable 1 m (39), 6 mm Flex coupling, Hexagon wrench X X X XB-31010

Digital
Baumer BDH16.05A3600-LO-B Rotary transducer mounting kit Universal transducer mounting kit LTB Kit (ABB) HPL/BLG Kit (ABB) Incl. cable 10 m (33ft), 10/6 mm Flex coupling, Hexagon wrench X XB-39130

Transducer mounting kits Universal

For transducers XB-31010 and XB-39130 For linear and rotary transducers Incl. mounting kit XB-51010, Software conversion table BL-8730X Incl. mounting kit XB-51010, Software conversion table BL-8720X X X X X X X X X X X XB-51010 XB-51020 XB-61010 XB-61020

Transducer mounting kits Circuit breaker specic

Ready-to-use kits Rotary

Analog
1-phase kit 3-phase kit Incl. transducer XB-31010, mounting kit XB-51010 Incl. 3 x 1-pase kits XB-71010 Incl. transducer XB-39130, mounting kit XB-51010 Incl. 3 x 1-pase kits XB-71020 X X X X X X Black Red Yellow Green Timing cable sets Blue The cable sets consist of 8 cables with clamps and 4 mm stackable safety plugs 8 x 5 m, (16.4 ft) 8 x 10 m, (32.8 ft) Cable reel Extension cable Extension cable XL Open analog cable XLR to 4 mm safety plugs Digital transducer extension cable Open digital cable 8 x 15 m, (49.2 ft) Cable reel and multi-connector for 4 timing channels Note: without cable Cable for cable reel BL-90060. Specify length when ordering 10 m (32.8 ft), for time measurement of main contacts For customized analog transducer connection For customized analog transducer connection 10 m (33 ft) For customized digital transducer connection
66

X X

XB-71010 XB-71013 XB-71020 XB-71023

Digital
1-phase kit 3-phase kit Universal support Switch magnetic base

Accessories for transducer mounting

X X X X X X X X X X X X X X XB-39029 XB-39013 GA-00840 GA-00842 GA-00844 GA-00845 GA-00846

Cables
Cable reel 20 m (65.5 ft), 4 mm stackable safety plugs X X X X X

X X X X X X X X X X X X X X

GA-00231 GA-00241 GA-00251 BL-90060 03-10070 GA-00150 GA-01000 GA-00040 GA-00888 GA-00885

Linear transducer, TLH 225

Linear transducer, TS 25

Rotary transducer, Novotechnic IP6501 (analog)

Rotary transducer, Baumer BDH (digital)

Rotary transducer mounting kit

Switch magnetic base

Cable reels, 20 m (65.5 ft), 4 mm stack- able safety plugs

67

Universal support

CIRCUIT BRE AKER TE S TING ACCE SSORIE S

CIRCUIT BRE AKER TE S TING ACCE SSORIE S

Item
L & L digital cable Ethernet cable, network

Description
For using Leine & Linde 530 digital transducer For connection to network Signal Conditioning Amplier. Power supply, amplier and signal conditioning lter for vibration testing using accelerometers with built-in charge ampliers. (Note: DTW-analysis software needed)

TM1800 TM1600 EGIL Art. No.

X X GA-00890 GA-00960

Vibration testing
SCA606 X X X BL-13096 BL-8270X XB-32010

Vibration analysis software CABA option for DTW-analysis Accelerometer DYTRAN 3200B5

Synchronized Switching Relay test kit

SSR kit incl. accessories, software and cables (delivered in transport case) DRM1000 SSR kit for TM1800 SSR for TM1600 (incl. VD401) Dynamic resistance measurement of breaker contacts. Controls injection current up to 1000 A. External supply 12 V DC. Delivered complete, including the following: Control unit DRM1000 incl. cable KG-00702 (red) and cable KG-00706 (blue) with snap-on connectors for a sealed 12 V battery. Connection box Sensing cables, 2 x 2 m, (6.5 ft) with clamps for connecting the circuit breaker to the connection box Transport case DRM for TM1800 Current cables (To be released) 100 A 250 A 1000 A X X X X GA-00424 GA-00422 GA-00420 X X CG-91200 BL-91200

Dynamic resistance measurement

X BL-90041

X X X X

BL-90040 BL-90035 GA-00430 50-00110

Other
VD401 PIR adapter Voltage divider, ratio 400/1 (for TM1600 and EGIL with analog channel) The adapter is used to test circuit breakers with pre-insertion resistors, when the resistance is lower than 250 or higher than 3000 . There are two versions: PIR, 15 250 PIR2, 90 4500 Current AC/DC clamp/clip-on/current probe, Fluke 80i-110s Current sensor kit 1 channel (Fluke 80i-110s incl. cable GA-00140) Current sensor kit 3 channels (Fluke 80i-110s incl. cables GA-00140) For ambient temperature measurement (To be released) EPROM to be mounted in the TM1600 Starts measurement when there is a change at any of the timemeasuring inputs Functions in the same way as a standard TM1600, but returns automatically to the READY state after measurement 114 mm, 30 m 114 mm, 40 mm X X X X BL-90070

X X

BL-90080 BL-90082

X X X

X X

BL-90600 BL-90610

Temperature sensor Long term monotoring LTM1 LTM2 Thermopaper Thermopaper Soft case

X X X X

BL-80010 BL-80011 GC-00030 GC-00040 GD-00340

For more information about optional accessories please contact GE Energy.

68

Signal conditioning amplier, SCA606

Cable reel, BL-90060

Extension cable XL, GA-00150

Accelerometer, Dytran 3200B5 and cable

DRM1000

Voltage divider, VD401

PIR adapter
69

Soft case

CIRCUIT BRE AKER TE S TING ACCE SSORIE S

TE S TING BAT TERY S Y S TEMS

Testing battery systems

In the event of a power failure, battery systems are often used to provide standby power for important items of equipment such as protective relay systems, circuit breakers and monitoring devices all of which require standby power during power outages. Electric power plants are equipped with many different types of battery systems. Here, the pumps that lubricate generator bearings are examples of equipment for which standby power is crucial. Telephone exchanges must also be kept operating on standby power. Computer systems depend heavily on standby power. Even a brief power outage can cause critical data to be lost. Recovering from such damage is often very expensive.

Battery capacity
A battery system must be able to provide power throughout a given interval without having its terminal voltage drop below a specied minimum value. Current multiplied by time expressed in hours (Ah) is called capacity. The manufacturer species a batterys capacity rating. New batteries must be in operation for a while before they are able to reach maximum capacity. As a battery ages its capacity drops, and it cannot provide the specied current for as long as previously. Under favorable circumstances, a batterys life expectancy can range up to 20 years, but many have shorter service lives. By measuring actual capacity it is possible to determine whether or not it is time to replace a battery system. You can save a great deal of money by ascertaining the best time to replace a battery. Since batteries age much faster as they get older, measuring capacity at regular intervals is of prime importance.

Maintaining batteries
A battery system must be inspected and tested at regular intervals. Faults can occur long before the systems life expectancy is reached. Experience shows that these statements hold true for all types of battery systems. A number of standards (IEEE 450 and IEEE 1188 for example) cover the maintenance of battery systems. There are many reasons to thoroughly inspect a battery system (see IEEE 450). Battery charger settings need attention. Faulty charging shortens a batterys service life. Voltages can vary so much from cell to cell that an equalizing charge is needed. There may be corrosion on the terminal posts, at internal connections etc. Leakage. Improper ambient temperature and/or ventilation. Normally a general inspection is conducted at regular intervals (ranging from monthly to yearly). The battery should be connected as usual during inspection, i.e. the charger should be carrying the load and oat-charging the battery. A number of parameters should be measured in connection with a general inspection: a) ambient temperature, b) total terminal voltage, c) charger output current and output voltage, d) cell voltages, e) acid density, f) electrolyte temperature and level, g) water consumption and h) resistances of connections.

Capacity test
The most reliable and most widely accepted method of determining battery system capacity is to conduct a discharge test. Prior to testing, the battery system must be well charged. The test is conducted by discharging the battery at a constant current specied by the battery manufacturer. This continues until battery voltage has dropped to a level which corresponds to that of a discharged battery. The hours needed to reach this minimum level are then multiplied by the current to obtain the actual capacity (Ah). Cell voltages are also measured at regular intervals, and this becomes increasingly important toward the end of the test when it reveals the presence of weak cells.

71

TORKEL 820 TELECOM

TORKEL 820 Telecom

Battery Load Unit

During a power outage, crucial telecommunication and radio equipment must be kept operating by batteries. Unfortunately, however, the capacity of such batteries can drop signicantly for a number of reasons before their calculated life expectancy is reached. Battery capacity should thus be checked to prevent expensive downtime in the event of a power failure. The most reliable way to determine battery capacity is to conduct a discharge test. The TORKEL 820 Battery Load Unit features a unique design that combines efciency with portability. Using TORKEL 820 you can discharge 24 and 48 V batteries at a current of 270 A, and 12 V batteries at 135 A. Moreover, two or more TORKEL 820 units and/or extra load units, TXL, can be linked together if you need higher current. Discharging proceeds at constant current, constant power or constant resistance, or in accordance with a pre-selected load prole. TORKEL 820 issues a warning and/or shuts down the test automatically when a) the voltage has dropped to a certain level, b) discharging has continued through a certain time interval or c) a certain amount of capacity has been dissipated.

72

Application example
IMPORTANT! Read the Users manual before using the instrument.
Testing can be carried out without disconnecting the battery from the equipment it serves. Via a DC clamp-on ammeter, TORKEL 820 measures total battery current while regulating it at a constant level. 1. Connect TORKEL 820 to battery. 2. Set the current and start discharging. TORKEL 820 keeps the current constant at the preset level. 3. When the voltage drops to a level slightly above the nal voltage, TORKEL 820 issues an alarm. 4. If the voltage drops low enough so that there is risk of deepdischarging the battery, TORKEL 820 shuts down the test. The total voltage curve and the readings taken at the end of the test are stored in TORKEL 820. Later, using the TORKEL Win program which runs on a PC under Windows, you can transfer these readings to your computer for storage, printout or export. If your PC is connected to TORKEL 820 during the test, TORKEL Win builds up a voltage curve on the screen in real time and displays the current, voltage and capacity readings. You can also control the test using TORKEL Win.

TORKEL 820 and the extra load TXL 830

73

TORKEL 820 TELECOM

TORKEL 820 TELECOM

Specications TORKEL 820

Specications are valid at nominal input voltage and an ambient temperature of +25C, (77F). Specications are subject to change without notice.

Measurement section Current measurement

Display range Basic inaccuracy Resolution Range Range mV/A-ratio Input impedance 0.0 2999 A (0.5% of reading +0.2 A) 0.1 A 0 270 A 01V Software settable, 0.3 to 19.9 mV/A >1 M

Environment
Application eld The instrument is intended for use in high-voltage substations and industrial environments. 0C to +40C (32F to +104F) -40C to +70C (-40F to +158F) 5% 95% RH, non-condensing Low Voltage Directive 73/23/ EEC am. by 93/68/EEC EMC Directive 89/336/EEC am. by 91/263/EEC, 92/31/EEC and 93/68/EEC IEC 61010-1:2001 Incl. national dev. for US and CA EN 61010-1:2001 EN 61326: 1997+A1:1998+A2:2001 100 240 V AC, 50 / 60 Hz 150 W Thermal cut-outs, automatic overload protection

Internal current measurement Input for clamp-on ammeter

Temperature Operating Storage & transport Humidity

Voltage measurement
Display range 0.0 60 V
Basic inaccuracy Resolution Basic inaccuracy Resolution (0.5% of reading +0.1 V) 0.1 V (0.5% of reading +1 V) 0.1 V 0.1% of reading 1 digit 10 60 V DC 270 A 15 kW Constant current, constant power, constant resistance, current or power prole 0-270.0 A (2999.9 A) 1)

CE-marking
LVD EMC

Display range 0.0 500 V

Standards
Safety standards

Time measurement
Basic inaccuracy

EMC standards

Load section
Battery voltage Max. current Max. power Load patterns

General
Mains voltage Power consumption (max) Protection Dimensions Instrument Transport case Weight

Current setting 210 x 353 x 700 mm (8.3 x 13.9 x 27.6) 265 x 460 x 750 mm (10.4 x 18.1 x 29.5) 22.3 kg (49.2 lbs) 40.4 kg (89.1 lbs) with accessories and transport case LCD English, French, German, Spanish, Swedish

Power setting 0-15.00 kW (299.99 kW) 1) Resistance setting 0.1-2999.8 Battery voltage range 2 ranges, selected automatically at start of test Stabilization (For (0.5% of reading + 0.5 A) internal current measurement) Battery voltage Range 1 Range 2 10 27.6 V 10 55.2 V Highest permissible current 270 A 270 A Resistor element (Nominal values) 0.069 0.138

Display Available languages

1) Maximum value for a system with more than one load unit

74

Inputs, maximal values

EXTERNAL CURRENT MEASUREMENT START / STOP 1 V DC, 300 V DC to ground. Current shunt should be connected to the negative side of the battery Closing / opening contact Closing and then opening the contact will start / stop Torkel. It is not possible to keep the contacts in closed position. 200 300 ms 100 200 ms 60 V DC, 500 V DC to ground 60 V DC, 500 V DC to ground < 15 V 250 V DC 0.28 A 28 V DC 8 A 250 V AC 8 A Cable set, GA-00554 5 V, 6 mA Relay contact < 15 V Relay contact

Delay until start Stop delay Battery VOLTAGE SENSE SERIAL ALARM

Outputs, maximal values

START / STOP TXL SERIAL ALARM

Discharging capacity, examples 12 V battery (6 cells) 2)

Final voltage 1.80 V / cell (10.8 V) 1.75 V / cell (10.5 V) 1.67 V / cell (10.0 V) 1.80 V / cell (21.6 V) 1.75 V / cell (21.0 V) 1.60 V / cell (19.2 V) 1.80 V / cell (43.2 V) 1.75 V / cell (42.0 V) 1.60 V / cell (38.4 V)
2) 2.15 V per cell when test starts

Constant current 0 121 A 0 117 A 0 110 A 0 270 A 0 266 A 0 241 A 0 270 A 0 270 A 0 259 A

Constant power 0 1.31 kW 0 1.23 kW 0 1.10 kW 0 5.8 kW 0 5.59 kW 0 4.63 kW 0 11.6 kW 0 11.3 kW 0 9,9 kW

24 V battery (12 cells) 2)

48 V battery (24 cells) 2)

Ordering information
TORKEL 820
Complete with: Cable set GA-00554 Transport case GD-00054

Art.No.
BS-49092

Optional accessories
See section Battery Testing Accessories

75

TORKEL 820 TELECOM

TORKEL 8 4 0 / 8 6 0

TORKEL 840/860

Battery Load Units

Batteries in power plants and transformer substations must provide the equipment they serve with standby power in the event of a power failure. Unfortunately, however, the capacity of such batteries can drop signicantly for a number of reasons before their calculated life expectancy is reached. This is why it is so important the check batteries at regular intervals, and the only reliable way of measuring battery capacity is to conduct a discharge test. TORKEL 840-UTILITY is used for battery systems ranging from 12 to 250 V often encountered in switchgear and similar equipment. Discharging can take place at up to 110 A, and if higher current is needed, two or more TORKEL 840 units or extra load units, TXL, can be linked together. Tests can be conducted at constant current, constant power, constant resistance or in accordance with a pre-selected load prole. TORKEL 860-MULTI is designed primarily for people who travel from place to place to maintain battery systems having different voltages. It features excellent discharging capacity plus a broad voltage range and outstanding portability a unique combination. TORKEL 860 is used for systems ranging from 12 to 480 V, and discharging can proceed at up to 110 A. If higher current is desired, two or more TORKEL 860 units or extra load units, TXL, can be linked together. Discharging can take place at constant current, constant output, constant resistance or in accordance with a pre-selected load prole.

76

Application example
IMPORTANT! Read the Users manual before using the instrument.
Testing can be carried out without disconnecting the battery from the equipment it serves. Via a DC clamp-on ammeter, TORKEL measures total battery current while regulating it at a constant level. 1. Connect TORKEL to battery. 2. Set the current and start discharging. TORKEL keeps the current constant at the preset level. 3. When the voltage drops to a level slightly above the nal voltage, TORKEL issues an alarm. 4. If the voltage drops low enough so that there is risk of deepdischarging the battery, TORKEL shuts down the test. The total voltage curve and the readings taken at the end of the test are stored in TORKEL. Later, using the TORKEL Win program which runs on a PC under Windows, you can transfer these readings to your computer for storage, printout or export. If your PC is connected to TORKEL during the test, TORKEL Win builds up a voltage curve on the screen in real time and displays the current, voltage and capacity readings. You can also control the test using TORKEL Win.

TORKEL 860 and the extra loads TXL 870

77

TORKEL 8 4 0 / 8 6 0

TORKEL 8 4 0 / 8 6 0

Specications TORKEL 840/860

Specications are valid at nominal input voltage and an ambient temperature of +25C, (77F). Specications are subject to change without notice.

Load section
Max. battery voltage Max. current Max. power Load patterns 288 V DC (TORKEL 840) 480 V DC (TORKEL 860) 110 A 15 kW Constant current, constant power, constant resistance, current or power prole 0-110.0 A (2999.9 A) 1) 0-15.00 kW (299.99 kW) 1) 0.1-2999.8 4 ranges, selected automatically at start of test 5 ranges, selected automatically at start of test (0.5% of reading +0.5 A)

Environment
Application eld The instrument is intended for use in high-voltage substations and industrial environments. 0C to +40C (32F to +104F) -40C to +70C (-40F to +158F) 5% 95% RH, non-condensing Low Voltage Directive 73/23/ EEC am. by 93/68/EEC EMC Directive 89/336/EEC am. by 91/263/EEC, 92/31/EEC and 93/68/EEC 100 240 V AC, 50 / 60 Hz 150 W Thermal cut-outs, automatic overload protection 210 x 353 x 700 mm (8.3 x 13.9 x 27.6) 265 x 460 x 750 mm (10.4 x 18.1 x 29.5) 21.5 kg (47.4 lbs) 38 kg (83.8 lbs) with accessories and transport case. LCD English, French, German, Spanish, Swedish

Temperature Operating Storage & transport Humidity

Current setting Power setting Resistance setting Battery voltage range, TORKEL 840 Battery voltage range, TORKEL 860 Stabilization (For internal current measurement) Battery voltage Range 1 Range 2 Range 3 Range 4 10 27.6 V 10 55.2 V 10 144 V 10 288 V

CE-marking
LVD EMC

General
Mains voltage Power consumption (max) Protection Dimensions Instrument Transport case Weight

Highest permissible current 110 A 110 A 110 A 55 A 55 A (max power 15 kW)

Resistor element (Nominal values) 0.165 0.275 0.55 3.3 3.3

Range 5 2) 10 480 V

1) Maximum value for a system with more than one load unit 2) TORKEL 860

Inputs, maximal values

EXTERNAL CURRENT MEAS- 1 V DC, 300 V DC to ground. Current UREMENT shunt should be connected to the negative side of the battery START / STOP Closing / opening contact Closing and then opening the contact will start / stop Torkel. It is not possible to keep the contacts in closed position. Delay until start 200 300 ms Stop delay 100 200 ms Battery 480 V DC, 500 V DC to ground VOLTAGE SENSE 480 V DC, 500 V DC to ground SERIAL < 15 V ALARM 250 V DC 0.28 A 28 V DC 8 A 250 V AC 8 A

Display Available languages

Measurement section Current measurement

Display range Basic inaccuracy Resolution Range Range mV/A-ratio Input impedance 0.0 2999 A (0.5% of reading +0.2 A) 0.1 A 0 270 A 01V Software settable, 0.3 to 19.9 mV/A >1 M

Internal current measurement Input for clamp-on ammeter

Outputs, maximal values

START / STOP TXL SERIAL ALARM 5 V, 6 mA Relay contact < 15 V Relay contact

Voltage measurement
Display range 0.0 60 V
Basic inaccuracy Resolution Basic inaccuracy Resolution (0.5% of reading +0.1 V) 0.1 V (0.5% of reading +1 V) 0.1 V 0.1% of reading 1 digit

Display range 0.0 500 V

Time measurement
Basic inaccuracy

78

Discharging capacity, examples 12 V battery (6 cells) 3)

Final voltage 1.80 V / cell (10.8 V) 1.75 V / cell (10.5 V) 1.67 V / cell (10.0 V) 1.80 V / cell (21.6 V) 1.75 V / cell (21.0 V) 1.60 V / cell (19.2 V) 1.80 V / cell (43.2 V) 1.75 V / cell (42.0 V) 1.60 V / cell (38.4 V) 1.80 V / cell (97.2 V) 1.75 V / cell (94.5 V) 1.60 V / cell (86.4 V) 1.80 V / cell (108 V) 1.75 V / cell (105 V) 1.60 V / cell (96 V) 1.80 V / cell (194 V) 1.75 V / cell (189 V) 1.60 V / cell (173 V) 1.80 V / cell (216 V) 1.75 V / cell (210 V) 1.60 V / cell (192 V) 1.70 V / cell (306 V) 1.60 V / cell (288 V) 1.80 V / cell (367 V) 1.60 V / cell (326 V)
3) 2.15 V per cell when test starts

Constant current 0 50.0 A 0 49.0 A 0 46.0 A 0 110 A 0 110 A 0 100 A 0 110 A 0 110 A 0 110 A 0 110 A 0 110 A 0 110 A 0 110 A 0 110 A 0 110 A 0 55 A 0 55 A 0 51.0 A 0 55 A 0 55 A 0 55 A 0 38 A 0 38 A 0 34 A 0 34 A

Constant power 0 0.54 kW 0 0.51 kW 0 0.46 kW 0 2.37 kW 0 2.31 kW 0 1.92 kW 0 4.75 kW 0 4.62 kW 0 4.22 kW 0 10.7 kW 0 10.4 kW 0 9.5 kW 0 11.9 kW 0 11.5 kW 0 10.5 kW 0 10.7 kW 0 10.4 kW 0 8.82 kW 0 11.9 kW 0 11.5 kW 0 10.5 kW 0 15 kW 0 15 kW 0 15 kW 0 15 kW

24 V battery (12 cells) 3)

48 V battery (24 cells) 3)

110 V battery (54 cells) 3)

Cable set GA-00550

120 V battery (60 cells) 3)

220 V battery (108 cells) 3)

240 V battery (120 cells) 3)

UPS battery (180 cells) 3) (TORKEL 860)

UPS battery (204 cells) 3) (TORKEL 860)

Ordering information
TORKEL 840
Complete with: Cable set GA-00550 Transport case GD-00054

Art.No.
BS-49094

TORKEL 860
Complete with: Cable set GA-00550 Transport case GD-00054 BS-49096

Optional accessories
See section Battery Testing Accessories

79

TORKEL 8 4 0 / 8 6 0

BAT TERY TE S TING ACCE SSORIE S

Battery testing accessories

Item TORKEL Win Description
PC software Shows the complete voltage curve Last recorded time, voltage, current and discharged capacity Scroll-window for all recorded values Remote control of TORKEL Report functions X Extra loads These resistive extra loads do not perform any regulating functions. They are designed for use together with TORKEL Battery Load Units. Their purpose is to provide higher load currents for use in constant current or constant power tests. Together, TORKEL and the TXL Extra Loads form a system that can discharge batteries with currents of up to several kA. TXL Extra Loads are connected directly to the battery, and TORKEL measures the total current using a clamp-on ammeter. TXL Extra Loads are shut down automatically when TORKEL is stopped. TXL830 is intended for 24 V systems. Complete with cable set GA-00554 and transport case GD-00054. A DC clamp-on ammeter must be used to enable TORKEL 820 to measure the total current. TXL850 is intended for 48 V systems. Complete with cable set GA-00554 and transport case GD-00054. A DC clamp-on ammeter must be used to enable TORKEL 850 to measure the total current. TXL870 is intended primarily for 125 and 240 V battery systems. Complete with cable set GA-00550 and transport case GD-00054. A DC clamp-on ammeter must be used to enable TORKEL 870 to measure the total current. X BS-8208X

TORKEL TORKEL 820 840/860 Art. No.

TORKEL Win

TXL units

TXL830

BS-59093

TXL850

BS-59095

TXL870

BS-59097

Cable sets
Cable set for TXL830 and TXL850 Extension cable set, 110 A Sensing lead set 2 x 3 m, 70 mm2, with cable lug. Max 100 V 270 A. Weight: 5.0 kg (11 lbs) 2 x 3 m, 25 mm . Max 480 V. Weight: 3.0 kg (6.6 lbs) Cable set for measuring voltage at battery terminals. 2 x 5 m (16.4 ft) X
2

X X X

GA-00554 GA-00552 GA-00210

Clamp-on ammeter
DC clamp-on ammeter, 200 A DC clamp-on ammeter, 1000 A To measure current in circuit outside TORKEL To measure current in circuit outside TORKEL X X X X XA-12792 XA-12790

TORKEL Win showing total voltage curve

80

TXL870

Specications TXL 830 / 850 / 870

Specications are valid at nominal input voltage and an ambient temperature of +25C, (77F). Specications are subject to change without notice.

Position 3
Current 300 A 235 A

TXL830 0.092 at 27.6 V at 21.6 V

TXL850 0.184 at 55.2 V (24 x 2.3 V) 43.2 A (24 x 1.8 V)

TXL870 1.24 at 124.2 V (54 x 2.3 V) at 97.2 V (54 x 1.8 V)

Environment
Application eld The instrument is intended for use in high-voltage substations and industrial environments. 0C to +40C (32F to +104F) -40C to +70C (-40F to +158F) 5% 95% RH, non-condensing Low Voltage Directive 73/23/ EEC am. by 93/68/EEC EMC Directive 89/336/EEC am. by 91/263/EEC, 92/31/EEC and 93/68/EEC 100 240 V AC, 50 / 60 Hz 75 W Thermal cut-outs, automatic overload protection 210 x 353 x 600 mm (8.3 x 13.9 x 23.6) 265 x 460 x 750 mm (10.4 x 18.1 x 29.5) 13 kg (28.7 lbs) 21.4 kg (47.2 lbs) with transport case 2 x 3 m (9.8 ft), 70 mm2, 270 A, with cable lug. Max. 100 V. 5 kg (11 lbs) 2 x 3 m (9.8 ft), 25 mm2, 110 A, with cable clamp / lug. Max. 480 V. 3 kg (6.6 lbs) TXL850 56 V 300 A 16.4 kW TXL850 0.55 at 55.2 V (24 x 2.3 V) at 43.2 V (24 x 1.8 V) TXL850 0.275 at 55.2 V (24 x 2.3 V) 43.2 V (24 x 1.8 V) TXL870 140 V/ 280 V 112 A at 140 V 56 A at 280 V 15.8 kW TXL870 4.95 at 248.4 V (108 x 2.3 V) at 194.4 V (108 x 1.8 V) TXL870 2.48

100 A 78.4 A

Temperature
Operating Storage & transport Humidity

CE-marking
LVD EMC

TORKEL / TXL systems examples

TORKEL 820 + TXL830, 12 V battery (6 cells)1)
Max. constant current (A) 234 571 918 495 1170 1890 499 1189 1918 263 670 1005 264 909 188 532 845 194 557 895 94 266 423 Number of TORKEL-units 1 1 2 1 1 2 1 1 2 1 2 3 1 2 1 2 2 1 2 2 1 2 2 Number of TXL-units 1 4 6 1 4 6 1 4 6 1 2 3 1 3 1 4 8 1 4 8 1 4 8

General
Mains voltage Power consumption (max) Protection Dimensions Instrument Transport case Weight Cable sets for TXL830 / 850 for TXL870

TORKEL 820 + TXL830, 24 V battery (12 cells)1)

TORKEL 820 + TXL850, 48 V battery (24 cells)1)

TORKEL 840/860 + TXL830, 24 V battery (12 cells)1)

TORKEL 840/860 + TXL850, 48 V battery (24 cells)1)

Load section
TXL830 Max. voltage (DC) Max. current Max. power 28 V 300 A 8.3 kW TXL830 0.275 at 27.6 V (12 x 2.3 V) at 21.6 V (12 x 1.8 V) TXL830 0.138 at 27.6 V at 21.6 V

TORKEL 840/860 + TXL870, 110 V battery (54 cells)1)

TORKEL 840/860 + TXL870, 120 V battery (60 cells)2)

Internal resistance, 3-position selector

Position 1
Current 100 A 78.5 A 50.1 A 39.2 A

TORKEL 840/860 + TXL870, 220 V battery (108 cells)1)

1) Discharge from 2.15 V to 1.8 V per cell 2) Discharge from 2.15 to 1.75 V per cell

Position 2
Current 200 A 156 A

81

BAT TERY TE S TING ACCE SSORIE S

PRIMARY INJEC TION TE S TING

Primary injection testing

For primary injection testing, high current is injected on the primary side of the current transformer. The entire chain current transformer, conductors, connection points, relay protection and sometimes circuit breakers as well is covered by the test. The system being tested must be taken out of service during primary injection testing, usually conducted in connection with commissioning. Low voltage circuit breakers are used in distribution networks, in industry, ships, trains etc. Reliable operation of LV-breakers is in many cases very important, for example in nuclear power plants, subways and oil platforms. The only way to verify that a direct-acting low voltage circuit breaker operates properly is to inject a high current.

83

ODEN AT

ODEN AT

Primary Current Injection Test System

This powerful test system is designed for primary injection testing of protective relay equipment and circuit breakers. It is also used to test the transformation ratio of current transformers and for other applications that require high variable currents. The system consists of a control unit together with one, two or three current units. There are three versions of the current unit: S, X and H. The S and X current units are identical except that the X unit has an additional 30/60 V output. The H unit is rated for even higher current. This makes it possible to congure an ODEN AT system in a suitable way. All parts are portable, and ODEN AT can be quickly assembled and connected. The control unit has many advanced features a powerful measurement section for example, that can display transformation ratio as well as time, voltage and current. A second measurement channel can be used to test an additional current or voltage. Current transformer turns ratio, impedance, resistance, power, power factor (cos ) and phase angle are calculated and shown in the display. Current and voltage can be presented as percentages of nominal value. The fast-acting hold function freezes short-duration readings on the digital display when the voltage or contact signal arrives at the stop input, the object under test interrupts the current or injection is stopped.

84

Application
Primary current injection testing and breaker testing
These tests require high currents and the ability to measure very short current and time cycles. Oden AT has been designed especially to meet these needs. No extra contacts are needed to measure the operating time of a low-voltage breaker. Testing stops at the instant when the main breaker contacts open to interrupt the current. Output current initiation is synchronized with the currents zero-crossover point to ensure good repeatability and minimized DC offset.

Testing current transformers

For turns-ratio testing, the primary current and either the secondary current or the turns-ratio are displayed simultaneously. Since the turns-ratio is displayed directly as the nominal value (1000/5 for example), no further calculation is needed. Burden of secondary circuits can be measured and presented in VA.

Polarity testing
The currents phase displacement is shown, and the polarities of the outputs are clearly marked.

Heat runs
Oden AT is ideal for performing heat runs. Current can be applied continuously or through programmable intervals. The times can be shown in minutes and hours which facilitates long-term testing.

Automatic reclosers and sectionalizers

Oden AT can also be set to test direct-acting automatic reclosers and sectionalizers. Operating limits, partial times, total times and the number of operations before lockout can be measured. Userselectable reclosing sequences can be programmed for testing sectionalizers.

Testing integrity of ground grids and safety-ground devices

One way to test ground grids is by injecting current between a reference ground and the ground to be tested and measuring the voltage drop and the percentage of current owing through the ground grid. The type X current unit included with Oden AT is designed for this type of application. Personal safety grounds must be tested at rated current, a task for which Oden AT is well suited.

Cable application
85

ODEN AT

ODEN AT

Miniature circuit breaker used for current output Interrupts output current. Can also be actuated manually for safe disconnection of load. Display The display presents time, output current, voltage, current shown on ammeter 2 and phase angle. You can scroll through entities Z, P, Q, R, X, S, power factor (cos ) and I max. Hold function This function freezes readings on the display. Setting buttons Personnel unfamiliar with Oden AT can use the pre-dened settings very effectively, while experienced users can make their own basic settings. AMMETER. Used to set the main currentoutput ammeter. You can select the desired range or select autoranging. V/A METER. Toggles between the voltmeter and ammeter 2. Also used to select the desired range or select autoranging. SYSTEM. Used for general settings. MEMORY. Used to save or recall settings to or from the ten Oden AT memories. One of these memories contains the default (pre-dened) settings that are invoked when Oden AT is powered up.

APPLICATION. Used to invoke the desired measurement mode: a) automatic recloser, b) sectionalizer or c) microhmmeter. Oden AT can also be set to generate pulse trains with userselectable pulse and pause times. Selection/setting (CHANGE) knob Selects the desired menu option (shown in the display window). Also used to change numerical values. Knob for ne adjustment of current and +/- buttons for coarse adjustment. Current reduction button Used during setting to reduce the output current to 1/30. Useful in order to avoid for example unintentional tripping and overheating. Injection Starts current injection and timing. Momentary Injection When this button is used, injection continues only as long as it is pressed. Useful in order to avoid for example overheating. RS232 for computer Oden AT is equipped with a serial port for communication with personal computers (for transfer of test data for example).

Manual shutoff Injection and timing are stopped when this button is pressed. Automatic injection stop Generation stops after a user-specied interval or when condition at the input is met. The diodes show the selected OFF condition. Input for voltmeter Used to measure voltage and also for microhmmeter measurement. Indicator lamps Indicate whether ammeter 2 or the voltmeter is enabled. Input for ammeter 2 Used to measure current in an external circuit (in a current transformers secondary winding for example). Stop-condition indicator Indicates that a contact connected to the input is closed or if voltage is present. Status indicator Indicates if a contact connected to the input is closed or if voltage is present. Stop input Used to freeze a reading or stop injection. Activated when current is interrupted by the object being tested, when an external contact is actuated or when a voltage is applied or removed.

To combine outstanding versatility with user-friendliness, ODEN AT's designers gave the front panel and user interface top priority. The clearly marked control panel is divided into sections. There are a number of pre-dened settings for frequently encountered applications. You can repeat any test by pressing a single button.
86

Optional accessories
HCP2000
The High Current Probe, HCP2000, is a tool that makes it possible to test automatic circuit breakers, also known as Moulded Case Circuit Breakers (MCCB), without removing/uninstalling the circuit breaker. These circuit breakers can for example be found in power plants and industry. The circuit breakers operates from 16 A up to 1500 A trip current.

ODEN DC Box
Designed for use together with ODEN primary current injection systems. For test of DC circuit breakers. Forced air-cooling. Max output: 5000 A DC Dimensions: 750 x 655 x 335 mm Weight: 42 kg

Current Transformer Switchbox

Current Transformer Switchbox

The Current Transformer (CT) Switchbox to ODEN AT is a tool that is used to facilitate CT testing with ODEN AT. The secondary windings on the CT are connected to the CT Switchbox inputs and the CT Switchbox output is connected to ODEN AT Ammeter 2. The switch on the CT Switchbox is used to select which secondary winding on the CT that should be measured. The windings that arent measured are shortcircuited. The CT Switchbox can handle up to 5 secondary windings.

High Current Serial Bar

For serial connecting of ODEN current units.

Mains Adapter 240/400V

Used to run a 400 V ODEN AT at 240 V. Can only be used together with an ODEN AT prepared for this feature.

High Current Serial Bar

Multi-cable high current cable sets

Low-impedance multi-cable sets for higher output current. Available with 2, 3, 4 or 6 parallel cables, and in lengths of 0.5, 1.0, 1.5 or 2 meters. See Ordering information.

Cable Sets
See Ordering information.

Mains adapter 240 V to 400 V

HCP2000 - High Current Probe

87

Multi-cable high current cable set 6 x 120 mm2

ODEN AT

ODEN AT

Specications ODEN AT
Specications are valid at nominal input voltage and an ambient temperature of +25C, (77F). Specications are subject to change without notice.

Measurement section Ammeters

Measurement method Inaccuracy AC, true RMS 1% of range 1 digit 0 4800 A / 0 15 kA 0 9600 A / 0 30 kA 0 960 A / 0 3 kA 0 2.000 A / 0 20.00 A 20 A (The input is not protected by a fuse) AC, true RMS 0 0.2 V, 0 2 V, 0 20 V, 0 200 V, AUTO 1% of range 1 digit 240 k (range 0 200 V) 24 k (other ranges) 2.5 kV In seconds, mains frequency cycles or hours and minutes 0.000 99999.9 s 0 9999 cycles 0.001 s 99 h 59 min (1 digit + 0.01% of value) For the stop condition in INT-mode 1 ms shall be added to the specied measurement error. 250 V AC / 275 V DC 0 359 1 2 (for voltage and current readings that are higher than 10% of the selected range)

System designation
An ODEN AT-system consists of a control unit an one, two or three current units. There are three different versions of the current units: S-unit (standard), X-unit (extra 30/60 V outlet) and H-unit (high current). The system designation indicates the number and version of current units included. Example: ODEN AT/2X 2 = Number of current units X = Version of current unit (S, X or H)

Ammeter 1
Ranges

Ammeter 2
Ranges Maximum current

Environment
Application eld The instrument is intended for use in medium-voltage substations and industrial environments.

Voltmeter
Measurement method Ranges Inaccuracy Input resistance (Rin) Dielectric withstand

Temperature Operating 0C to +50C (+32F to +122F) Storage & transport -25C to +55C (-13F to +127F) Humidity 5% 95% RH, non-condensing

CE-marking
LVD EMC Low Voltage Directive 73/23/ EEC am. by 93/68/EEC EMC Directive 89/336/EEC am. by 91/263/EEC, 92/31/EEC and 93/68/EEC 240 / 400 V AC, 50 / 60 Hz 480 V AC / 60 Hz IEC 60309-2, 63 A Output current x open circuit voltage / input voltage The output transformer has a built-in thermal cut-out, and the primary side is protected by a miniature circuit breaker. 570 x 310 x 230 mm (22.4 x 12.2 x 9) 570 x 310 x 155 mm (22.4 x 12.2 x 6) 25 kg (55 lbs) 42 kg (92.6 lbs) 45 kg (99.3 lbs) 49 kg (108 lbs) LCD English, German, French, Spanish, Swedish.

Timer
Presentation Ranges

General
Mains voltage Mains inlet Input current Protection

Inaccuracy

Stop input
Max. input voltage

Phase angle
Range Resolution Inaccuracy

Dimensions Control unit AT Current unit S, X H Weight Control unit AT Current unit S Current unit X Current unit H Display Available languages

Z, P, R, X, S, Q and power factor (cos )

For these measurements the result is calculated using two or three items. The accuracy depends on the errors for the items included (U, I and sometimes ).

Imax
Stores highest current value that exists 100 ms

INT-level
Threshold indicating that current is interrupted. Can be set to 0.7% or 2.1% of Ammeter 1 range.

88

Outputs
ODEN AT, 240 V mains voltage, 50 / 60 Hz
Output voltage* (V) Open circuit voltage Max. Max. curMax. curcontinuous rent, 3 min- rent, 1 sec 3) current 3) utes 3) 1000 A 1680 A 1000 A 2500 A 840 A 1000 A 2000 A 3600 A 2000 A 5200 A 1700 A 2000 A 7000 A 8000 A 4000 A 8000 A 2600 A

High current output - ODEN AT systems for 240 V, 50 Hz

ODEN AT/1S
6V

ODEN AT/2S
1) 2)

6V 12 V 6V 18 V 6V

ODEN AT/3S
1) 2)

ODEN AT/1X
High current output 7000 A

Current (kA)

Output 0 30/60 V
30 V range 60 V range 30 V 60 V
1) 2)

160 A 80 A 1680 A 1000 A 320 A 160 A 80 A 2500 A 840 A 480 A 160 A 80 A 1250 A 2500 A 1250 A 3800 A 1250 A

300 A 150 A 3600 A 2000 A 600 A 300 A 150 A 5200 A 1700 A 900 A 300 A 150 A 2600 A 5500 A 2800 A 8000 A 2800 A

1200 A 600 A 8000 A 4000 A 1600 A 800 A 400 A 8000 A 2600 A Output voltage* (V)

High current output - ODEN AT systems for 400 V, 50 Hz

ODEN AT/2X
High current output 30 V range 30 V range 60 V range High current output 30 V range 30 V range 60 V range 6V 12 V 30 V 60 V 120 V 6V 18 V 30 V 90 V 180 V 3.6 V

Output 0 30/60 V
1) 2) 2)

ODEN AT/3X
1) 2)

Output 0 30/60 V
1) 2) 2)

Current (kA) 1600 A 520 A 260 A 11 kA 13 kA 6500 A 13 kA 4300 A Output voltage* (V)

ODEN AT/1H ODEN AT/2H

1) 2)

High current output - ODEN AT systems for 480 V, 60 Hz

3.6 V 7.2 V 3.6 V 10.7 V

ODEN AT/3H
1) 2)

Current (kA)

S or X units H units p = units in parallel, s = units in series *) Voltage between output terminals

89

ODEN AT

ODEN AT

ODEN AT, 400 V mains voltage, 50 / 60 Hz

Open circuit voltage Max. continu- Max. curMax. ous current3) rent, 3 min- current, utes3) 1 sec3)

ODEN AT, 480 V mains voltage, 60 Hz

Open circuit voltage Max. continu- Max. curMax. ous current 3) rent, 3 min- current, utes 3) 1 sec 3) 1000 A 1900 A 900 A 1900 A 600 A 1000 A 2000 A 4000 A 2000 A 4000 A 1400 A 2000 A 7000 A 13 kA 6000 A 13 kA 4400 A 7000 A

ODEN AT/1S
6V 1000 A 1900 A 900 A 1900 A 600 A 1000 A 2000 A 4000 A 2000 A 4000 A 1400 A 2000 A 7000 A

ODEN AT/1S
7.2 V

ODEN AT/2S
1) 2)

ODEN AT/2S
6V 12 V 6V 18 V 6V 13 kA 6000 A 13 kA 4400 A 7000 A High current output 30 V range 60 V range
1) 2)

7.2 V 14.4 V 7.2 V 21.6 V 7.2 V

ODEN AT/3S
1) 2)

ODEN AT/3S
1) 2)

ODEN AT/1X
High current output

ODEN AT/1X

Output 0 30/60 V
30 V range 60 V range 30 V 60 V
1) 2)

Output 0 30/60 V
160 A 80 A 1900 A 900 A 320 A 160 A 80 A 1900 A 600 A 380 A 120 A 60 A 1250 A 2500 A 1250 A 3800 A 1250 A 300 A 150 A 4000 A 2000 A 600 A 300 A 150 A 4000 A 1400 A 850 A 290 A 145 A 2600 A 5300 A 2500 A 7700 A 2600 A 1200 A 600 A 13 kA 6000 A 2500 A 1200 A 600 A 13 kA 4400 A 2600 A 880 A 440 A 11 kA 36 V 72 V
1) 2)

160 A 80 A 1900 A 900 A 320 A 160 A 80 A 1900 A 600 A 380 A 120 A 60 A 1250 A 2500 A 1250 A 3800 A 1250 A

300 A 150 A 4000 A 2000 A 600 A 300 A 150 A 4000 A 1400 A 850 A 290 A 145 A 2600 A 5300 A 2500 A 7700 A 2600 A

1200 A 600 A 13 kA 6000 A 2500 A 1200 A 600 A 13 kA 4400 A 2600 A 880 A 440 A 11 kA 21 kA 10.9 kA 21.9 kA 7200 A

ODEN AT/2X
High current output 30 V range 30 V range 60 V range High current output 30 V range 30 V range 60 V range 6V 12 V 30 V 60 V 120 V 6V 18 V 30 V 90 V 180 V 3.6 V

ODEN AT/2X
High current output 30 V range 60 V range 60 V range High current output 30 V range 30 V range 60 V range 7.2 V 14.4 V 36 V 272 V 144 V 7.2 V 21.6 V 36 V 108 V 216 V 4.3 V

Output 0 30/60 V
1) 2) 2)

Output 0 30/60 V
1) 1) 2)

ODEN AT/3X
1) 2)

ODEN AT/3X
1) 2)

Output 0 30/60 V
1) 2) 2)

Output 0 30/60 V
1) 2) 2)

ODEN AT/1H ODEN AT/2H

1) 2)

ODEN AT/1H ODEN AT/2H

3.6 V 7.2 V 3.6 V 10.7 V 21 kA 10.9 kA 21.9 kA 7200 A
1) 2)

4.3 V 8.7 V 4.3 V 13.0 V

ODEN AT/3H
1) 2)

ODEN AT/3H
1) 2)

1) Current units connected in parallel 2) Current units connected in series 3) Maximum possible current is also limited by the impedance in the test circuit. The current value can not exceed output voltage / impedance value.

90

Ordering information
A carriage (Art.No. 50-00092) is always included with purchase of a complete ODEN system. The cable set(s) for connection to the object under test must however be stated as a separate item in the order. Cable for connecting current units in series is included with purchase of a control unit.

Optional accessories
HCP2000 ODEN DC Box Current Transformer Switchbox High Current Serial Bar Mains Adapter 240/400V Note: Can only be used together with an ODEN AT prepared for this feature. Contact GE Energy. AA-90160 BH-90140 BH-90130 BH-90102

ODEN AT/1S
240 V Mains voltage 400 V Mains voltage 480 V (60 Hz) Mains voltage

Art.No
BH-62411 BH-64011 BH-64811 BH-62412 BH-64012 BH-64812 BH-62413 BH-64013 BH-64813 BH-62421 BH-64021 BH-64821 BH-62422 BH-64022 BH-64822 BH-62423 BH-64023 BH-64823 BH-62431 BH-64031 BH-64831 BH-62432 BH-64032 BH-64832 BH-62433 BH-64033 BH-64833

BH-90120

Multi-cable high current cable sets

Length Impedance (Twisted-pair cables) 0.21 m 0.32 m 0.42 m 0.53 m GA-12205 GA-12210 GA-12215 GA-12220 GA-12305 GA-12310 GA-12315 GA-12320 GA-12405 GA-12410 GA-12415 GA-12420 GA-12605 GA-12610 GA-12615 GA-12620
2

ODEN AT/2S
240 V Mains voltage 400 V Mains voltage 480 V (60 Hz) Mains voltage

Cross section area: 240 mm2 (2x120) 2 x 0.5 m (1.6 ft) 2 x 1 m (3.3 ft) 2 x 1.5 m (4.9 ft) 2 x 2 m (6.6 ft)

ODEN AT/3S
240 V Mains voltage 400 V Mains voltage 480 V (60 Hz) Mains voltage

Cross section area: 360 mm2 (3x120) 2 x 0.5 m (1.6 ft) 0.18 m 2 x 1 m (3.3 ft) 2 x 1.5 m (4.9 ft) 2 x 2 m (6.6 ft) 0.25 m 0.32 m 0.39 m

ODEN AT/1X
240 V Mains voltage 400 V Mains voltage 480 V (60 Hz) Mains voltage

Cross section area: 480 mm2 (4x120) 2 x 0.5 m (1.6 ft) 0.16 m 2 x 1 m (3.3 ft) 2 x 1.5 m (4.9 ft) 2 x 2 m (6.6 ft) 0.21 m 0.27 m 0.32 m

ODEN AT/2X
240 V Mains voltage 400 V Mains voltage 480 V (60 Hz) Mains voltage

ODEN AT/3X
240 V Mains voltage 400 V Mains voltage 480 V (60 Hz) Mains voltage

Cross section area: 720 mm2 (6x120) 2 x 0.5 m (1.6 ft) 0.14 m 2 x 1 m (3.3 ft) 2 x 1.5 m (4.9 ft) 2 x 2 m (6.56 ft) 0.18 m 0.21 m 0.25 m

ODEN AT/1H
240 V Mains voltage 400 V Mains voltage 480 V (60 Hz) Mains voltage

Cable set, 2 x 5 m (16 ft), 120 mm

Cross section area: 120 mm2 Weight: 15.2 kg (33.5 lbs) Impedance: 2.2 m

GA-12052
2

Cable set, 2 x 5 m (16 ft), 25 mm

Cross section area: 25 mm2 For the 30/60 V output of current unit X. Weight: 4 kg (8.8 lbs)

ODEN AT/2H
240 V Mains voltage 400 V Mains voltage 480 V (60 Hz) Mains voltage

GA-02052

ODEN AT/3H
240 V Mains voltage 400 V Mains voltage 480 V (60 Hz) Mains voltage

91

ODEN AT

ODEN A

ODEN A

Primary Current Injection Test System

A powerful test system designed for primary injection testing of protective relay equipment and circuit breakers. It is also used to test the transformation ratio of current transformers and for other applications that require high variable currents. Up to 8 kA can be generated. The ODEN A system consists of a control unit together with one or two current units. All parts are portable, and ODEN A can be quickly assembled and connected. There are two versons of the current unit: S and X, S and X are identical except that X has an additional 30/60 V output.

92

Application
Oden A can be used in a number of applications where high current is required:

Optional accessories
See also Optional accessories for ODEN AT

Primary current injection testing of protective systems Breaker testing Testing current transformers Heat runs
Example of test objects are joints, circuit breakers and disconnectors.

TM200
External timer See the TM200 product pages for more information.

Testing of safety-ground devices

Personal safety grounds must be tested at rated current, a task for which ODEN A is well suited.

Testing integrity of ground grids

One way to make this test is by injecting current between a reference ground and the ground to be tested and measuring the voltage drop and the percentage of current owing through the ground grid. The type X current unit included with ODEN A is designed for this type of application.

Timer TM200

Cable application
93

Multi-cable high current cable set 6 x 120 mm2

ODEN A

ODEN A

Specications ODEN A
Specications are valid at nominal input voltage and an ambient temperature of +25C, (77F). Specications are subject to change without notice.

Outputs
ODEN A, 240 V mains voltage, 50 / 60 Hz
Open circuit voltage Max. current, Max. Max. current, continuous 3 minutes 3) 1 sec 3) current 3) 1000 A 1680 A 1000 A 1000 A 2000 A 3600 A 2000 A 2000 A 6000 A 8000 A 4000 A 6000 A

System designation
An ODEN A-system consists of a control unit an one or two current units. There are two different versions of the current units: S-unit (standard) and X-unit (extra 30/60 V outlet). The system designation indicates the number and version of current units included. Example: ODEN A/2X X = Version of current unit (S, or X) 2 = Number of current units

ODEN A/1S
6V

ODEN A/2S
1) 2)

6V 12 V 6V

ODEN A/1X
High current output

Environment
Application eld The instrument is intended for use in medium-voltage substations and industrial environments.

Output 0 30/60 V
30 V range 60 V range 30 V 60 V
1) 2)

Temperature Operating -20C to +50C (-4F to +122F) Storage & transport -40C to +55C (-40F to +127F) Humidity 5% 95% RH, non-condensing

160 A 80 A 1680 A 840 A 320 A 160 A 80 A

300 A 150 A 3600 A 1500 A 600 A 300 A 150 A

600 A 300 A 8000 A 4000 A 1200 A 600 A 300 A

ODEN A/2X
High current output 30 V range 30 V range 60 V range 6V 12 V 30 V 60 V 120 V Open circuit voltage

CE-marking
LVD EMC Low Voltage Directive 73/23/ EEC am. by 93/68/EEC EMC Directive 89/336/EEC am. by 91/263/EEC, 92/31/EEC and 93/68/EEC 240 / 400 V AC, 50 / 60 Hz IEC 60309-2, 63 A Output current x open circuit voltage / input voltage 570 x 310 x 230 mm (22.4 x 12.2 x 9) 570 x 310 x 155 mm (22.4 x 12.2 x 6) 20 kg (44.1 lbs) 42 kg (92.6 lbs) 45 kg (99.3 lbs)

Output 0 30/60 V
1) 2) 2)

General
Mains voltage Mains inlet Input current Dimensions Control unit A Current unit S, X Weight Control unit A Current unit S Current unit X

ODEN A, 400 V mains voltage, 50 / 60 Hz

Max. Max. current, Max. continuous 3 minutes 3) current, current 3) 1 sec 3) 1000 A 1900 A 630 A 1000 A 2000 A 4000 A 1500 A 2000 A 7000 A 8000 A 4000 A 7000 A

ODEN A/1S
6V

ODEN A/2S
1) 2)

6V 12 V 6V

ODEN A/1X
High current output

Output 0 30/60 V
30 V range 60 V range 30 V 60 V
1) 2)

160 A 80 A 1900 A 630 A 250 A 125 A 60 A

300 A 150 A 4000 A 1500 A 600 A 225 A 115 A

600 A 300 A 8000 A 4000 A 1200 A 600 A 300 A

ODEN A/2X
High current output 30 V range 30 V range 60 V range 6V 12 V 30 V 60 V 120 V

Output 0 30/60 V
1) 2) 2)

1) Current units connected in parallel 2) Current units connected in series 3) Maximum possible current is also limited by the impedance in the test circuit. The current value can not exceed output voltage / impedance value.

94

Ordering information
A carriage (Art.No. 50-00092) is always included with purchase of a complete ODEN system. The cable set(s) for connection to the object under test must however be stated as a separate item in the order. Cable for connecting current units in series is included with purchase of a control unit.

ODEN A/1S
240 V Mains voltage 400 V Mains voltage

Art.No.
BH-32411 BH-34011 BH-32412 BH-34012 BH-32421 BH-34021 BH-32422 BH-34022 AA-90160 BE-29090 BH-90140 BH-90130 BH-90102

ODEN A/2S
240 V Mains voltage 400 V Mains voltage

ODEN A/1X
240 V Mains voltage 400 V Mains voltage

ODEN A/2X
240 V Mains voltage 400 V Mains voltage

Optional accessories
HCP2000 TM200 ODEN DC Box Current Transformer Switchbox High Current Serial Bar

Multi-cable high current cable sets

Length Impedance (Twisted-pair cables) 0.21 m 0.32 m 0.42 m 0.53 m GA-12205 GA-12210 GA-12215 GA-12220 GA-12305 GA-12310 GA-12315 GA-12320 GA-12405 GA-12410 GA-12415 GA-12420 GA-12605 GA-12610 GA-12615 GA-12620
2

Cross section area: 240 mm2 (2x120) 2 x 0.5 m (1.6 ft) 2 x 1 m (3.3 ft) 2 x 1.5 m (4.9 ft) 2 x 2 m (6.6 ft)

Cross section area: 360 mm2 (3x120) 2 x 0.5 m (1.6 ft) 0.18 m 2 x 1 m (3.3 ft) 2 x 1.5 m (4.9 ft) 2 x 2 m (6.6 ft) 0.25 m 0.32 m 0.39 m

Cross section area: 480 mm2 (4x120) 2 x 0.5 m (1.6 ft) 0.16 m 2 x 1 m (3.3 ft) 2 x 1.5 m (4.9 ft) 2 x 2 m (6.6 ft) 0.21 m 0.27 m 0.32 m

Cross section area: 720 mm2 (6x120) 2 x 0.5 m (1.6 ft) 0.14 m 2 x 1 m (3.3 ft) 2 x 1.5 m (4.9 ft) 2 x 2 m (6.56 ft) 0.18 m 0.21 m 0.25 m

Cable set, 2 x 5 m (16 ft), 120 mm

Cross section area: 120 mm2 Weight: 15.2 kg (33.5 lbs) Impedance: 2.2 m

GA-12052
2

Cable set , 2 x 5 m (16 ft), 25 mm

Cross section area: 25 mm2 For the 30/60 V output of current unit X. Weight: 4 kg (8.8 lbs)

GA-02052

95

ODEN A

C S U6 0 0A /6 0 0AT

CSU600A/600AT

Current Supply Units

These high-current supply units have two main elds of application. The rst is to conduct primary tests on protective relays. A primary test shows whether all parts of the protection system are functioning together properly within the specied time limits under operating conditions. The second eld of application involves conducting current tests on low-voltage circuit breakers and overcurrent devices. The CSU600A is a compact instrument which, together with Timer TM200 and an external ammeter, meets stringent requirements for accuracy, easy handling and performance. This current supply unit is ideal for a) performance and turn-ratio tests of current transformers, b) primary tests of protective relays, c) current tests on low- and high-voltage circuit breakers and d) commissioning tests that require variable currents. The more sophisticated CSU600AT provides a more comprehensive solution. It has a built-in timer and an analog ammeter that provide rough current settings quickly and easily. As a result, connection time has been reduced to the bare minimum. The CSU600A and CSU600AT current supply units have an excellent weight/performance ratio.

96

Application example
IMPORTANT! Read the Users manual before using the instrument. Primary test of protective relay equipment and low-voltage circuit breaker
1. Connect the CSU600A's current outputs across the current transformer (diagram a) or to the breaker terminals (diagram b). 2. Connect Timer TM200's start input to output T and the stop input to the protective relay equipment's auxiliary contact. 3. Set the current. 4. Execute the test. 5. Read the time from Timer TM200.

Optional accessories
Cable set (for 115 V), 2 x 5 m (16 ft), 70 mm2
Weight: 8.4 kg (18 lbs)

Cable set, 2 x 10 m (33 ft), 70 mm2

Weight: 16.8 kg (37 lbs)

Cable set, 2 x 15 m (49 ft), 95 mm2

Weight: 29.4 kg (65 lbs)

TM200
External timer See the TM200 product pages for more information

Ammeter

Timer TM2

Timer TM2

97

C S U6 0 0A /6 0 0AT

C S U6 0 0A /6 0 0AT

Specications CSU600A/AT
Specications are valid at nominal input voltage and an ambient temperature of +25C, (77F). Specications are subject to change without notice.

Measurement section
Ammeter Current transformer Built-in, 0 600 A (only on CSU600AT) Output for external ammeter 500/5 A, class 0.5 0-999.999 s 1 ms 0.02% of shown value + 0 to 2 ms Output for starting external timer 230 V mains voltage Load time Minimum output voltage 9.5 V 9.3 V 9.0 V 8.5 V 8.0 V 7.5 V 7.0 V 6.5 V

Environment
Application eld The instrument is intended for use in high-voltage substations and industrial environments. 0C to +50C (32F to +122F) -40C to +70C (-40F to +158F) 5% 95% RH, non-condensing Low Voltage Directive 73/23/ EEC am. by 93/68/EEC EMC Directive 89/336/EEC am. by 91/263/EEC, 92/31/EEC and 93/68/EEC 115 or 230 V AC, 50 / 60 Hz 115 V, 667 VA cont. (interm. 3738 VA) 230 V, 851 VA cont. (interm. 6440 VA) Thermal cut-outs and miniature circuit breakers 356 x 203 x 241 mm (14.0 x 8.0 x 9.5) 610 x 290 x 360 mm (24.0 x 11.4 x 14.2) 21.9 kg (48 lbs) 38.3 kg (84.4 lbs) with accessories and carrying case 2 x 5 m (16 ft), 50 mm

Timer (only CSU600AT)

Range Resolution Inaccuracy

Temperature Operating Storage & transport Humidity

Other

Outputs, AC, intermittent output 1) (CAT I)

115 V mains voltage Current Load time Minimum output voltage 6.0 V 5.6 V 5.3 V 4.9 V 4.6 V 4.2 V 3.9 V

CE-marking
LVD EMC

0A 75 A 100 A 200 A 300 A 400 A 500 A 600 A

Cont. Cont 15 min 1.5 min 1 min 20 s 15 s

Cont. Cont. 1h 5 min 2 min 1 min 30 s 20 s

General
Mains voltage Power consumption (max) Protection Dimensions Instrument Transport case Weight

1) Maximum load time from cold state 25C (77F). Not valid for repeated tests.

Maximum cable lengths at 600 A

115 V mains 230 V mains 2 x 5 m (16 ft), 70 mm 2 x 5 m (16 ft), 50 mm 2 x 10 m (33 ft), 70 mm 2 x 15 m (49 ft), 95 mm

Current cables

98

Ordering information
CSU600A
Complete with: Cable set GA-05052 Transport case GD-00182 115 V Mains voltage 230 V Mains voltage

Art.No.

BF-11190 BF-12290

CSU600AT
Complete with: Cable set GA-05052 Transport case GD-00182 115 V Mains voltage 230 V Mains voltage

BF-21190 BF-22290 Cable set GA-05052 GA-07052 GA-07102 GA-09152 BE-29090

Optional accessories
Cable set 5 m (for 115 V) Cable set 10 m Cable set 15 m TM200

99

C S U6 0 0A /6 0 0AT

TM20 0

TM200

Timer
A timer is often needed for use with the CSU600A current supply unit or ODEN A primary current injection test system. Testing relays with SVERKER 650 also requires an extra timer if more than one timing cycle is to be measured. Timer TM200 is ideal for these tasks thanks to its precise accuracy, its broad application range and its compact dimensions. Timer TM200 is the obvious choice for maintenance work in substations.

100

Application example
IMPORTANT! Read the Users manual before using the instrument. Primary test of protective relay equipment and low-voltage circuit breaker
1. Connect the CSU600A's current outputs across the current transformer (diagram a) or to the breaker terminals (diagram b). 2. Connect Timer TM200's start input to output T and the stop input to the protective relay equipment's auxiliary contact. 3. Set the current. 4. Execute the test. 5. Read the time from Timer TM200.

Measurement section
Range Resolution Inaccuracy 0-999.999 s 1 ms 0.02% + 1 digit of displayed value 250 V AC / DC Min 10 0.7 Typ 12.5 1.1 Max 15 1.5 Unit V DC mA DC

Timer inputs
Max input voltage

Voltage mode
Parameter Threshold level, DC Input current at threshold level DC Positive at red terminal Input current at threshold level DC Positive at black terminal Threshold level, Applying voltage at 50 Hz Threshold level, Removing voltage at 50 Hz

mA DC

5 60

10 90

15 140

V ACRMS V ACRMS

Ammeter

Timer TM2

Timer TM2

Contact mode
Parameter Threshold level Open circuit voltage Short circuit current Parameter At 250 V DC, Positive at red terminal At 250 V DC, Positive at black terminal At 250 V AC Parameter At 250 V DC, Positive at red terminal At 250 V DC, Positive at black terminal At 250 V AC Min 1 17 8 Min 4.5 130 55 Min 4 7 2.5 Typ 2 18.5 10 Max 5 150 80 Typ 4.5 8 3.3 Max 5 9 4 Max 4 20 13 Unit k V DC mA DC Unit mA DC mA DC mA DC Unit mA DC mA DC mA DC

Input current at maximum input voltage, inrush

Specications TM200
Specications are valid at nominal input voltage and an ambient temperature of +25C, (77F). Specications are subject to change without notice.

Input current at maximum input voltage, continuous

Environment
Application eld The instrument is intended for use in medium-voltage substations and industrial environments. Altitude <2000 m (6500 ft) above sea level.

Temperature Operating 0C to +50C (32F to +122F) Storage & transport -20C to +55C (-4F to +131F) Humidity 5% 95% RH, non-condensing

CE-marking
LVD EMC Low Voltage Directive 73/23/ EEC am. by 93/68/EEC EMC Directive 89/336/EEC am. by 91/263/EEC, 92/31/EEC and 93/68/EEC 115 / 230 V AC (switchable), 50 / 60 Hz 20 VA

General
Mains voltage Power consumption (max) Dimensions Instrument, excl. handle Instrument, incl. handle Weight

Test lead set, with touch-proof contacts

195 x 115 x 49 mm (7.7 x 4.5 x 1.9) 252 x 132 x 49 mm (9.9 x 5.2 x 1.9) 1.0 kg (2.2 lbs) 2.7 kg (6 lbs) with accessories and carrying case 4 x 2 m (6.6 ft), 2.5 mm

Ordering information
TM200
Complete with: Test lead set GA-00082 Carrying case GD-00230

Art.No.
BE-29090

101

TM20 0

DIAGNOS TIC TE S TING OF INSUL ATION

Diagnostic Testing of Insulation

Electric utilities the world over are facing an increasingly difcult challenge to secure steady electrical supply to demanding customers, while at the same time having to cut costs in operations and maintenance to remain commercially competitive. The single largest cause of costly downtime at high voltage installations is aging and damage to insulation materials. One can take the power transformer as an example, the most expensive component at a substation, with a relatively long expected life span. By being able to ensure that the transformers insulation material is in good condition, its life span can be safely increased, which provides a prot for the transformer owner. Detection can also be made of when aging of the insulation has gone too far and maintenance can be schedule to avoid changing the transformer prematurely, also providing economic benets. There has been a problem with the lack of suitable measurement instruments for diagnosis of insulation material in a reliable manner that does not damage equipment and material. The diagnostic methods that have been available have most often been limited to use in laboratory environments, and have therefore been difcult to apply in the eld. Another problem is that they have not provided sufcient information to form a basis for further action. Other available methods have entailed excessive electrical stress on the object under evaluation, which introduces risks for object failure during testing. Often, a combination of the mentioned obstacles has resulted in a situation where no or few measurements are performed on installed units. Because premature repairs and replacements are much more expensive than scheduled maintenance, we are convinced that there is an unfullled demand for a lightweight, portable and user-friendly system for insulation diagnostics that is suitable for use in the eld. At the same time, all measurement results must be accurate and sufciently detailed to form a basis for decisions on maintenance and replacement of expensive components in substations. In the past, using traditional measurement methods (often variations of the classic Schering bridge), high voltages have been required of up to several thousand volts to attain accurate results. One of the reasons for this has been the corruption of measurements caused by mains frequency interference from adjacent high voltage lines in substations. To bring down the resulting errors, a relatively high voltage has been required to perform measurements. With the IDA 200 Insulation Diagnostics System 200 GE Energy has chosen a different path. With the focus on aging of insulation materials, we use a lower voltage in that this often offers advantages in comparison to using high measuring voltages. The IDA 200 measures the capacitance and dielectric losses at discrete frequencies, both above and below the mains frequency (output signals with frequencies from 0.1 mHz to 1 kHz are available). By avoiding the mains frequency and its harmonics, the inuence of disturbances can be effectively ltered. By measuring the capacitance and the dielectric losses over a frequency spectrum (rather than at a xed frequency alone), much information can be obtained on the condition of insulation materials. For example, it is possible to differentiate between different materials, and also to identify aging processes in the insulation material.

103

IDA 20 0

IDA 200

Insulation Diagnostics System

The measurement and analysis methods employed in the IDA 200 are based on research conducted at the Royal Institute of Technology in Stockholm, with resources and input from leading users and manufacturers of high voltage equipment. These methods, along with design and selection of components, have resulted in a unique diagnostics system. In regards to size and weight, as well as to accuracy and depth of analysis, the IDA 200 is denitely in a class of its own. With the IDA 200, it is possible to diagnose insulation material in most objects in a substation (e.g., power transformers, measuring transformers, bushings, paper-insulated cables, etc.). The diagnostic measurements are made by applying a relatively low voltage up to 140 V. The IDA 200 measures the capacitance and dielectric losses (tan , PF) at discrete frequencies, both above and below mains frequency. By avoiding the mains frequency and its harmonics, the inuence of disturbances can be effectively ltered. By measuring at several frequencies, and obtaining a curve instead of a point, precise compensation can be made for the temperature differences that can occur at several different measurement occasions. This means that temperature independence is achieved with this method.

104

Application
IDA 200 is designed for diagnostic measurements of electrical insulation. Examples of application areas: Power and instrument transformers, bushings and paper insulated cables. Electrical insulation come in all three states of matter: solid (such as cellulosic paper and porcelain), liquid (such as mineral oil), and gas. Insulation systems that include solid and/or liquid insulation are candidates for diagnostic measurements. IDA 200 is not suited for pure gas insulated systems. Electrical insulation systems as found in the objects listed above usually consist of a combination of different materials. In the following, we will illustrate how IDA 200 can be used to determine the condition in some of the most commonly used insulation systems.

Diagnosis of insulation in power transformers

The insulation system of most power transformers consists of oil and cellulose (paper). The dielectric properties of both of these materials changes over the transformers life span. When measured at mains frequency alone, the property changes in the different materials cannot be differentiated. An analysis of the measured dissipation factors frequency properties provides a more complete diagnosis of the examined insulation. The graph below shows the results of measurements made with the IDA 200 on the insulation between primary and secondary to tertiary windings on an auto power transformer. At higher frequencies, the transformers pressboard and oil volume determine the dielectric loss; at medium frequencies, the oil conductivity is the dominant factor; and in the lower frequency range, is dominated by the transformer pressboards dielectric loss. Based on analysis of the measurement results with the IDA 200 MODS software, a moisture content of 11.5% was deduced. Normally, moisture content above 3.54% entails transformer replacement to avoid insulation breakdown. Operating a transformer close to or higher than its rated output can be necessary under certain circumstances. This entails risks, but when the moisture content of the paper is known to be low, temporary overloads can be handled without the risk of insulation breakdown.

Application examples
Dielectric properties of mineral oils
Transformer oil is a non-polar liquid with a capacitance that changes very little with frequency. But oil also has a DC conductivity that varies with the oils quality and temperature. The measured dissipation factor for the oil is inversely proportional to the frequency, which results in a very simple curve form.

Dielectric properties of cellulosic paper

Oil-impregnated cellulose, e.g., transformer pressboard and the Kraft paper used in paper-insulated cables, has a more complex structure and is characterized by frequency dependence in both capacitance and losses. Since aging produces moisture, the moisture content of cellulose is used as an indicator of age.

MODS A tool for analysing measurement results

Included in the IDA 200 system is an analysis program, MODS, for determining the moisture content in transformer pressboard. Using the measurement results from the IDA 200 and the temperature of the insulation during measurement, the responses from the oil and pressboard can be differentiated, and a good estimation of the pressboards condition obtained.

Diagnosis of cellulose-insulated power cables

Since moisture produces a characteristic change to the cellulose's response, the IDA 200 is very suitable for accessing the average moisture content in paper-insulated power cables (PILC cables).

The gure shows a typical response of oil with low conductivity (good oil) and another oil with higher conductivity (bad oil), both at same temperature.

Here is an example of how moisture affects the dissipation factor of Kraft paper at 20 C.

Measurement results of the insulation between primary and secondary to tertiary windings on a power transformer.
105

The graph shows the results from measurements of a new cable and a service aged cable.

IDA 20 0

IDA 20 0

Mains switch/indicator Ethernet Interface USB-port Computer screen for integrated PC Terminal for connecting optional external voltage amplier Measuring status indicator Terminal for connecting sample to be diagnosed (Voltage output/measuring input) Output On/Off buttons Floppy Disk Drive (1.44 MB).

106

Technical description
The system measures the impedance of a specimen at a variable voltage and frequency. A Digital Signal Processing (DSP) unit generates a test signal with the desired frequency. This signal is amplied with an internal amplier and then applied to the specimen. The voltage over and the current through the specimen are measured with high accuracy using a voltage divider and an electrometer (Ampere meter).

Optional accessories
IDA 200 HVU
The High Voltage Unit (HVU) is used with the IDA 200 system to increase the output voltage up to 30 kV (21 kVRMS). The main application for this combination is for diagnosis of water tree deteriorated XLPE-cables. The system works equally well when other types of non linear materials are to be characterized.

Termination box IDA 200 (special)

Alike the standard Termination box but with BNT connectors instead of cables.

Schematic block diagram of the IDA 200-system.

For the measuring input, IDA 200 uses the DSP unit that multiplies the input (measurement) signals with reference sine voltages, and then integrates the results over a number of cycles. With this method, noise and interference is almost completely rejected - allowing IDA 200 to work with low voltage levels and still achieve high accuracy.

IDA 200 HVU

Principle of the sine correlation technique

Termination box, special

107

IDA 20 0

IDA 20 0

Specications IDA 200

Specications are valid at nominal input voltage and an ambient temperature of +25C, (77F). Specications are subject to change without notice.

Measurement inaccuracy

Environment
Application eld Temperature Operating Storage & transport Humidity For use in high-voltage substations and industrial environments. 0C to +55C (-4F to +131F) -40C to +70C (-40F to +158F) <95% RH (non-condensing), 30 days/year, 85% RH remaining time Low Voltage Directive 73/23/ EEC am. by 93/68/EEC EMC Directive 89/336/EEC am. by 91/263/EEC, 92/31/EEC and 93/68/EEC IEC 61010-1:90 + A1:92 + A2:95 UL 3101-1, 3111-1 (1994) CAN-CSA 22.2 No. 1010.010 30 EN 61 326-1 1997 + A1 1998 115 / 230 V AC, 50 / 60 Hz 250 VA The inaccuracies specied above are valid for a measurement voltage of 200 Vpeak, provided that the optimum capacitive feedback ratio in the electrometer CFBR is used and that the hum current, IH , satises:

CE-marking
LVD EMC

Standards
Safety standards

EMC standards

General
Mains input (nominal) Power consumption (max) Dimensions Instrument Transport case Weight

Display Available languages

450 x 160 x 410 mm (17.7 x 6.3 x 16.1) 560 x 230 x 565 mm (22.1 x 9.1 x 22.2) 15 kg (33.1 lbs) 30 kg (66 lbs) with accessories and transport case TFT Colour Monitor, 16 cm (6.4) English, French, German, Spanish, Swedish

where, ISAMPLE is the sample current, fSAMPLE is the measurement frequency and fH is the hum frequency.

Outputs
Voltage / current ranges
10 V 200 V 0 10 Vpeak / 0 50 mA 0 200 Vpeak / 0 50 mA 0.0001 Hz - 1 kHz 1)

Frequency
Range
1) Due to current limitation the upper frequency limit can be lower.

Measurement section
Capacitance
Range 10 pF 100 F 0 10 (with retained accuracy of capacitance otherwise higher)

Dissipation factor
Range

108

Ordering information
IDA 200
Complete with: IDA 200 instrument software IDA 200 MODS software Transport case, GD-00270 Keyboard with integrated mouse Calibration box, CK-90010 Termination box IDA 200 (standard), CK-90030 Multi-cable (blue) 1 x 15 m (49 ft), GA-00615 Test capacitor box, CK-90050 Ground cable 1 x 10 m (32.8 ft) GA-00208

Art.No.

CK-19090 CK-29090 CK-90040 GA-00611 GA-00613 GA-00635 Test capacitor box and ground cable

Optional accessories
IDA 200 HVU Termination box IDA 200 (special) Multi-cable (blue), 1 x 1 m (3.3 ft) Multi-cable (blue), 1 x 3 m (9.8 ft) Multi-cable (blue), 1 x 35 m (114.8 ft)

IDA 200 can be operated while it is in the transport case.

Termination box, standard

Calibration box
109

Multi-cable

IDA 20 0

OTHER

Training courses
Reliable, efcient electricity supply depends on well-planned maintenance strategies. The necessary tests within this framework have in recent years become more complex and demanding. In order to meet increasingly stringent requirements, not only good test equipment but also testing skills are important components in a successful maintenance strategy. For those who share the opinion that even the best handbooks only can offer theory, GE Energy offers Training Courses with a practical, hands-on approach. In doing this we have taken special care to ensure that the exercises are performed using relevant testing devices for the various test objects. In order that participants can work effectively, the number of participants is limited. If you are interested in knowing more about GE Energy training courses, please visit our Website www.gepower.com or contact us.

110

03-10070 Cable 4x timing channels .............................................66 AA-90160 HCP 2000.....................................................................91,95 BA-11190 SVERKER 650, 115 V .......................................................17 BA-12290 SVERKER 650, 230 V .......................................................17 BA-90040 AC-Adapter ACA 120 ......................................................17 BB-11190 BB-12290 BB-41190 BB-42390 BB-8010X BB-90020 BB-90024 MOM 600A, 115 V............................................................57 MOM 600A, 230 V............................................................57 MOM 690, 115 V ..............................................................53 MOM 690, 230 V ..............................................................53 MOMWin ............................................................................53 Calibration Shunt MOM600A .......................................57 Calibration Shunt MOM690..........................................53

BH-64813 BH-64821 BH-64822 BH-64823 BH-64831 BH-64832 BH-64833 BH-90102 BH-90130 BH-90140 BL-13096 BL-80010 BL-80011 BL-8203X BL-8204X BL-8270X BL-90035 BL-90040 BL-90041 BL-90060 BL-90070 BL-90080 BL-90082 BL-90600 BL-90610 BL-91200

ODEN AT/3S, 480 V .........................................................91 ODEN AT/1X, 480 V .........................................................91 ODEN AT/2X, 480 V .........................................................91 ODEN AT/3X, 480 V .........................................................91 ODEN AT/1H, 480 V.........................................................91 ODEN AT/2H, 480 V.........................................................91 ODEN AT/3H, 480 V.........................................................91 High Current Serial Bar...........................................91, 95 Current Transformer Switchbox ..........................91, 95 ODEN DC Box ............................................................91, 95 SCA606 Signal Cond. Amp............................................68 LTM-Soft, TM1600 ...........................................................68 LTM2-Soft, TM1600.........................................................68 CABA Win TM1600/MA61 .............................................68 CABA Win EGIL.................................................................68 VIB Analysis SW...............................................................68 DRM Connection box .....................................................68 DRM1000 Control unit ...................................................68 DRM1000 Injection Control ..........................................68 Reel For TM1600.......................................................66, 69 VD401 Voltage Divider...................................................68 PIR-Adapter TM1600......................................................68 PIR2-Adapter TM1600....................................................68 Current sensor kit 1 channel ......................................68 Current sensor kit 3 channels .....................................68 SSR for TM1600 ...............................................................68

BD-11190 MOM 200A, 115 V............................................................61 BD-90022 Calibration Shunt MOM200A .......................................61 BE-29090 Timer TM200.....................................................95, 99, 101 BF-11190 BF-12290 BF-21190 BF-22290 BF-41190 BF-42390 CSU600A, 115 V...............................................................99 CSU600A, 230 V...............................................................99 CSU600AT, 115 V .............................................................99 CSU600AT, 230 V .............................................................99 CSU20A, 115 V .................................................................13 CSU20A, 230 V .................................................................13

BG-29092 B10E Power Supply Unit Softstart ..........................63 BH-32411 BH-32412 BH-32421 BH-32422 BH-34011 BH-34012 BH-34021 BH-34022 BH-62411 BH-62412 BH-62413 BH-62421 BH-62422 BH-62423 BH-62431 BH-62432 BH-62433 BH-64011 BH-64012 BH-64013 BH-64021 BH-64022 BH-64023 BH-64031 BH-64032 BH-64033 BH-64811 BH-64812 ODEN A/1S, 240 V ...........................................................95 ODEN A/2S, 240 V ...........................................................95 ODEN A/1X, 240 V ...........................................................95 ODEN A/2X, 240 V ...........................................................95 ODEN A/1S, 400 V ...........................................................95 ODEN A/2S, 400 V ...........................................................95 ODEN A/1X, 400 V ...........................................................95 0DEN A/2X, 400 V............................................................95 ODEN AT/1S, 240 V .........................................................91 ODEN AT/2S, 240 V .........................................................91 ODEN AT/3S, 240 V .........................................................91 ODEN AT/1X, 240 V .........................................................91 ODEN AT/2X, 240 V .........................................................91 ODEN AT/3X, 240 V .........................................................91 ODEN AT/1H, 240 V.........................................................91 ODEN AT/2H, 240 V.........................................................91 ODEN AT/3H, 240 V.........................................................91 ODEN AT/1S, 400 V .........................................................91 ODEN AT/2S, 400 V .........................................................91 ODEN AT/3S, 400 V .........................................................91 ODEN AT/1X, 400 V .........................................................91 ODEN AT/2X, 400 V .........................................................91 ODEN AT/3X, 400 V .........................................................91 ODEN AT/1H, 400 V.........................................................91 ODEN AT/2H, 400 V.........................................................91 ODEN AT/3H, 400 V.........................................................91 ODEN AT/1S, 480 V .........................................................91 ODEN AT/2S, 480 V .........................................................91

BM-19090 EGIL Basic without options...........................................45 BM-19093 EGIL with analog/PC ......................................................45 BP-19090 PAM360..............................................................................29 BR-29090 VIDAR..................................................................................65 BS-49092 BS-49094 BS-49096 BS-59093 BS-59095 BS-59097 BS-8208X TORKEL 820 Telecom .....................................................75 TORKEL 840 Utility ..........................................................79 TORKEL 860 Multi ............................................................79 TXL 830 Telecom .............................................................80 TXL 850 Utility ..................................................................80 TXL 870 Multi ....................................................................80 TORKEL Win 800..............................................................80

BT-11190 MAGNUS Step-Up Transformer, 115 V ......................31 BT-12390 MAGNUS Step-Up Transformer, 230 V ......................31 CA-19090 CA3 Current Amplifier .............................................25, 27 CB-19090 CA1 Current Amplifier .............................................25, 27 CD-11190 SVERKER 750, 115 V .......................................................13 CD-12390 SVERKER 750, 230 V .......................................................13 CD-21190 SVERKER 760, 115 V .......................................................13 CD-22390 SVERKER 760, 230 V .......................................................13 CD-8101X SVERKER Win Upgrade..................................................13 CD-8102X SVERKER Win PC Software ...........................................13 CD-89010 SV750/760 Local SW by GE Energy Services..........13 CD-89011 SV750/760 Local SW by Customer............................13
111

Index Article number

Index Article number

Index Article number

CD-90020 PSS750 ...............................................................................13 CF-19000 CF-19004 CF-19090 CF-19091 CF-19094 CF-19095 CF-8203X CF-8214X CF-8215X CF-8221X CF-8282X CF-90010 CF-90050 FREJA 300 .........................................................................25 FREJA 300 .........................................................................25 FREJA 300 .........................................................................25 FREJA 300 .........................................................................25 FREJA 300 .........................................................................25 FREJA 300 .........................................................................25 FREJA Win Standard ......................................................25 FREJA Win Transient SWkey........................................25 FREJA Win Transducer ..................................................25 FREJA Win AUTO21 SWkey ..........................................25 Upgrade FREJA Win Standard.....................................25 Remote Control FREJA 300 ..........................................25 GPS100...............................................................................25

CG-19000 Analog Module Including 3 cable sets, 10 m ..........41 CG-19030 Control Module Including 3 cable sets, 5m .............41 CG-19040 Digital Module ..................................................................41 CG-19050 Printer Module Including paper spool.......................41 CG-19060 Timing Aux Module Including 3 cable sets, 5m ......41 CG-19080 Timing M/R Module Including 3 cable sets, 5m......41 CG-19090 TM1800, Basic Unit .........................................................41 CG-19091 TM1800, Basic Unit, with Flashdisk............................41 CG-8000X CABA Win TM1800..........................................................66 CG-8010X CABA Win Upgrade.........................................................66 CG-91200 SSR kit for TM1800..........................................................68 CK-19090 IDA 200 Insulation Diagnostic System ...................109 CK-29090 IDA 200 HVU High Voltage Unit................................109 CK-90040 Termination box IDA 200 (special) ...........................109 GA-00032 Cable Set STD TPL ....................................................25, 63 GA-00040 Cables, XLR to 4mm safety plugs...............................66 GA-00103 Multi Cable FREJA 300, 3m...........................................25 GA-00150 Cable Extend EGIL....................................................66, 69 GA-00210 Sensing Lead Set, 2x5m................................................80 GA-00231 Cable Set TM1600, 8x5m ..............................................66 GA-00241 Cable Set TM1600, 8x10m............................................66 GA-00251 Cable Set TM1600, 8x15m............................................66 GA-00420 Current Cable DRM1000/1000 ....................................68 GA-00422 Current Cable DRM1000/250 ......................................68 GA-00424 Current Cable DRM1000/100 ......................................68 GA-00430 Sensing Lead Set DRM 2x2m.......................................68 GA-00552 Cable Set, TORKEL 840/860 .........................................80 GA-00554 Cable Set, TXL830/850 ...........................................75, 80 GA-00611 Multi-cable (blue), 1x1m..............................................109 GA-00613 Multi-cable (blue), 1x3m..............................................109 GA-00635 Multi-cable (blue), 1x35m ...........................................109 GA-00840 Cable reel black, 20m/4mm.........................................66 GA-00842 Cable reel red, 20m/4mm.............................................66 GA-00844 Cable reel yellow, 20m/4mm.......................................66 GA-00845 Cable reel green, 20m/4mm........................................66 GA-00846 Cable reel blue, 20m/4mm...........................................66 GA-00885 Open digital cable...........................................................66 GA-00888 Digital transducer extension cable, 10m .................66 GA-00890 Open digital cable...........................................................68 GA-00960 Ethernet cable, network................................................68 GA-01000 Open analog cable .........................................................66 GA-01005 Analog cable XLR female to male, 10m.............41, 66

GA-02052 Cable Set, 5m/25mm2 M8......................................91, 95 GA-03103 Cable Set, 10m/35mm2/sense ....................................61 GA-05057 Cable Set, 690 Joint 5m+S ...........................................53 GA-05107 Cable Set, 690 Joint 10m+S.........................................53 GA-05153 Cable Set, 15m/50mm2/sense ....................................61 GA-07052 Cable Set, 2X5m 70mm2 ...............................................99 GA-07102 Cable Set, 2X10m 70mm2 .............................................99 GA-07103 Cable Set, 10m/70mm2/sense ....................................57 GA-09152 Cable Set, 2x15m 95mm2 .............................................99 GA-09153 Cable Set, 15m 95mm2 sense .....................................57 GA-09155 Cable Set, 690 15m sense............................................53 GA-12052 Cable Set, 2x5m 120mm2 ......................................91, 95 GA-12205 Multi Cable Set, 2x0,5m..........................................91, 95 GA-12210 Multi Cable Set, 2x1m .............................................91, 95 GA-12215 Multi Cable Set, 2x1,5m..........................................91, 95 GA-12220 Multi Cable Set, 2x2m .............................................91, 95 GA-12305 Multi Cable Set, 2x0,5m..........................................91, 95 GA-12310 Multi Cable Set, 2x1m .............................................91, 95 GA-12315 Multi Cable Set, 2x1,5m..........................................91, 95 GA-12320 Multi Cable Set, 2x2m .............................................91, 95 GA-12405 Multi Cable Set, 2x0,5m..........................................91, 95 GA-12410 Multi Cable Set, 2x1m .............................................91, 95 GA-12415 Multi Cable Set, 2x1,5m..........................................91, 95 GA-12420 Multi Cable Set, 2x2m .............................................91, 95 GA-12605 Multi Cable Set, 2x0,5m..........................................91, 95 GA-12610 Multi Cable Set, 2x1m .............................................91, 95 GA-12615 Multi Cable Set, 2x1,5m..........................................91, 95 GA-12620 Multi Cable Set, 2x2m .............................................91, 95 GC-00030 Thermal Paper, 114mm/30m.......................................68 GC-00040 Thermal Paper, 114mm/ 40mm........................41, 66 GD-00042 Transport Case COMBI-XL ............................................53 GD-00215 Soft Case FREJA 300/CA3 ......................................25, 27 GD-00340 Soft case............................................................................68 XA-12790 Current Clamp S.C 1000/1............................................80 XA-12792 Current Clamp S.C 200/1 ..............................................80 XB-30020 XB-30030 XB-30033 XB-30117 XB-31010 XB-32010 XB-39013 XB-39029 XB-39130 XB-51010 XB-51020 XB-61010 XB-61020 XB-71010 XB-71013 XB-71020 XB-71023 Transducer TLH-500 ......................................................66 Transducer TS-150 .........................................................66 Transducer TS-25............................................................66 Transducer LWG-225.....................................................66 Transducer IP6501 .........................................................66 Transducer DYTRAN 3200B5 .......................................66 Switch magnetic base ...................................................66 Universal support............................................................66 Baumer ..............................................................................66 Rotary transducer mounting kit .................................66 Universal transducer mounting kit ............................66 Transducer Kit LTB Kit (ABB) .........................................66 Transducer Kit HPL/BLG Kit (ABB)...............................66 Ready-to-use kits Rotary, Analog, 1-phase kit ...66 Ready-to-use kits Rotary, Analog, 3-phase kit ...66 Ready-to-use kits Rotary, Digital, 1-phase kit ....66 Ready-to-use kits Rotary, Digital, 3-phase kit ....66

112

Programma Electric AB Eldarvgen 4 SE-187 75 TBY Sweden Tel Fax E-mail Internet +46 8 510 195 00 +46 8 510 195 95 programma@ge.com www.gepower.com

NOTICE OF COPYRIGHT & PROPRIETARY RIGHTS 2005, Programma Electric AB. All rights reserved. The contents of this document are the property of Programma Electric AB. No part of this work may be reproduced or transmitted in any form or by any means, except as permitted in written license agreement with Programma Electric AB. Programma Electric AB has made every reasonable attempt to ensure the completeness and accuracy of this document. However, the information contained in this document is subject to change without notice, and does not represent a commitment on the part of Programma Electric AB. TRADEMARK NOTICES Programma is a registered trademark of Programma Electric AB. IEEE is claimed as a registered trademark by the Institute by Electrical Electronics Engineers, Inc. The GE logo is registered trademark of General Electric Company. All other brand and product names mentioned in this document are trademarks or registered trademarks of their respective companies. Programma Electric AB is certified according to ISO 9001. Subject to change without notice. Printed matter No. ZG-9906E R100 GEA 13466A - EURO ENG Timmer Reklambyr/Halmstad Tryckeri 2005
