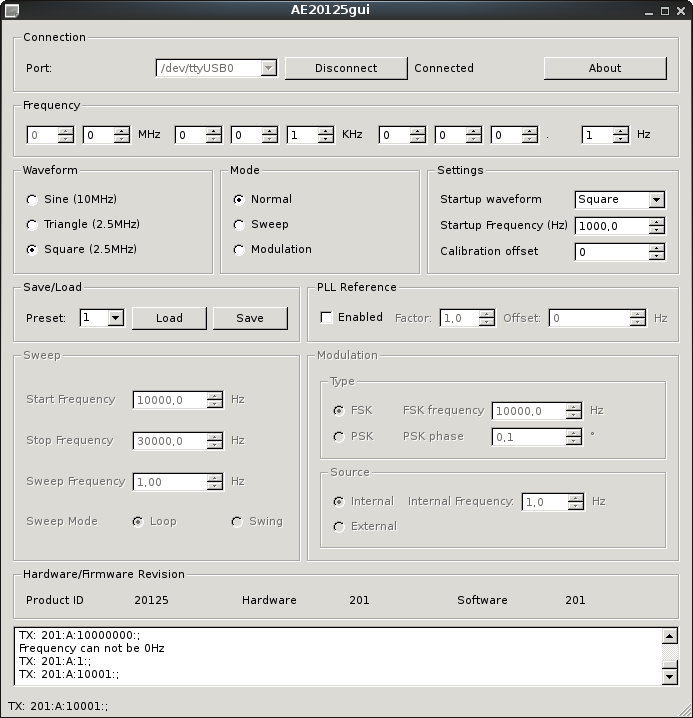

QT-GUI for Ascel AE20125 Function Generator

Florian Knodt [email protected]

This software is licensed under the GPL V3. The full text of the license is available here: http://www.gnu.org/licenses/gpl-3.0

There are 2 folders in this project:

This folder includes the Makefile needed to build the software. The included binary was build on a recent Arch Linux x86_64. You are advised to rebuild it yourself to ensure compatibility with your machine. To compile use the following steps:

• Make sure you have installed QT4 including its developement packages

  • Ubuntu/Debian: libqt4-dev
  • Arch: qt4
  • Gentoo: dev-qt/qtcore (i guess)

• Make sure you have installed QtSerialPort as shown here: http://qt-project.org/wiki/QtSerialPort

  • Arch has an AUR: https://aur.archlinux.org/packages/qtserialport-qt4-git/

• cd into the build directory

• run make to (re)build the binary

The software was only tested on Linux, however according to Qt and QtSerialPort it should also work on Windows, Mac and other platforms.

This folder includes all original sources and layout files needed to edit and build the application in QTCreator.

• Preset Load/Save is not implemented yet
• Using Sweep or Modulation locks up my device (however this also applies to the original Windows(r) software)
